8Ch
DirectIP
FEN Service
Quickly Backup
Scalability
NDAA Compliant
Redundancy Protection

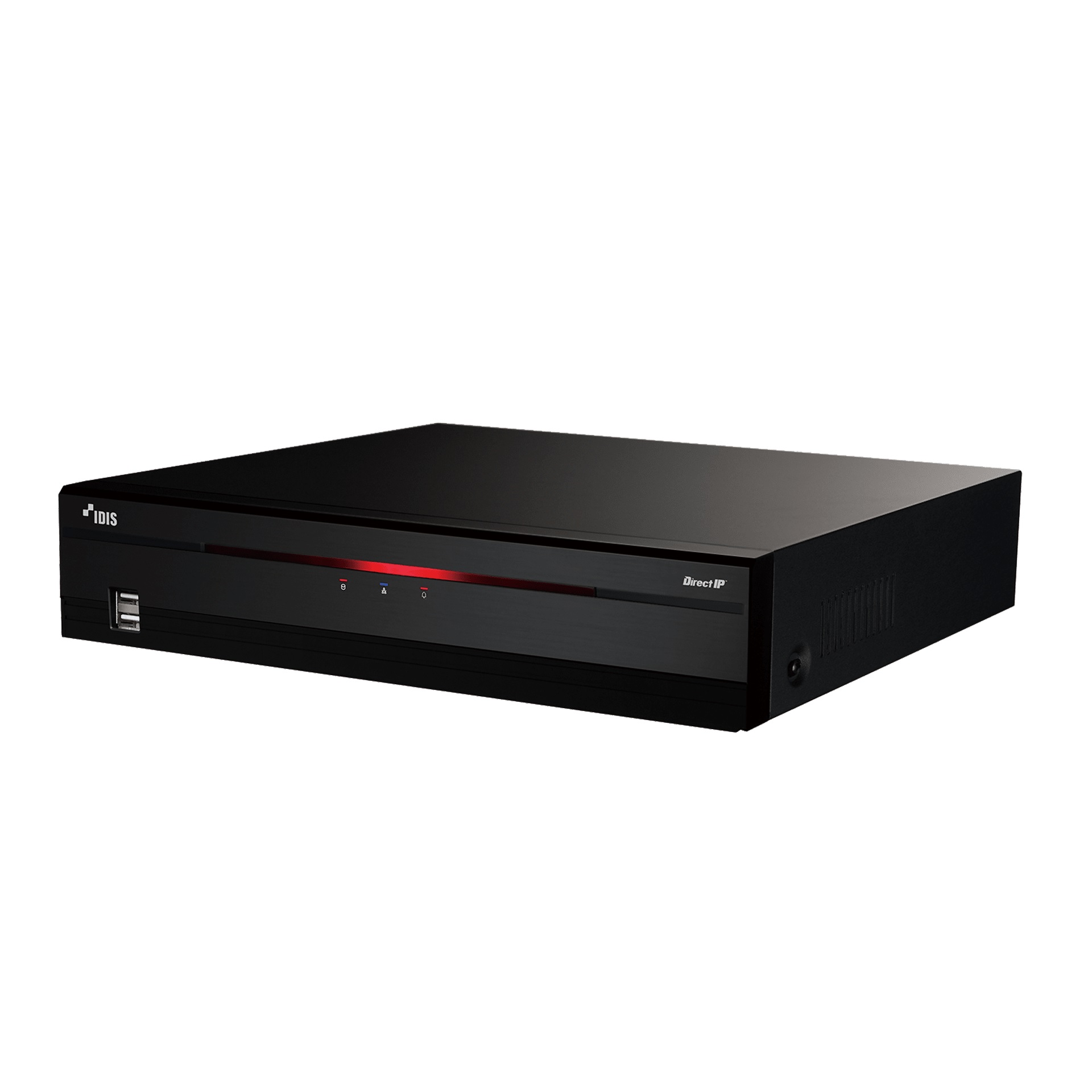

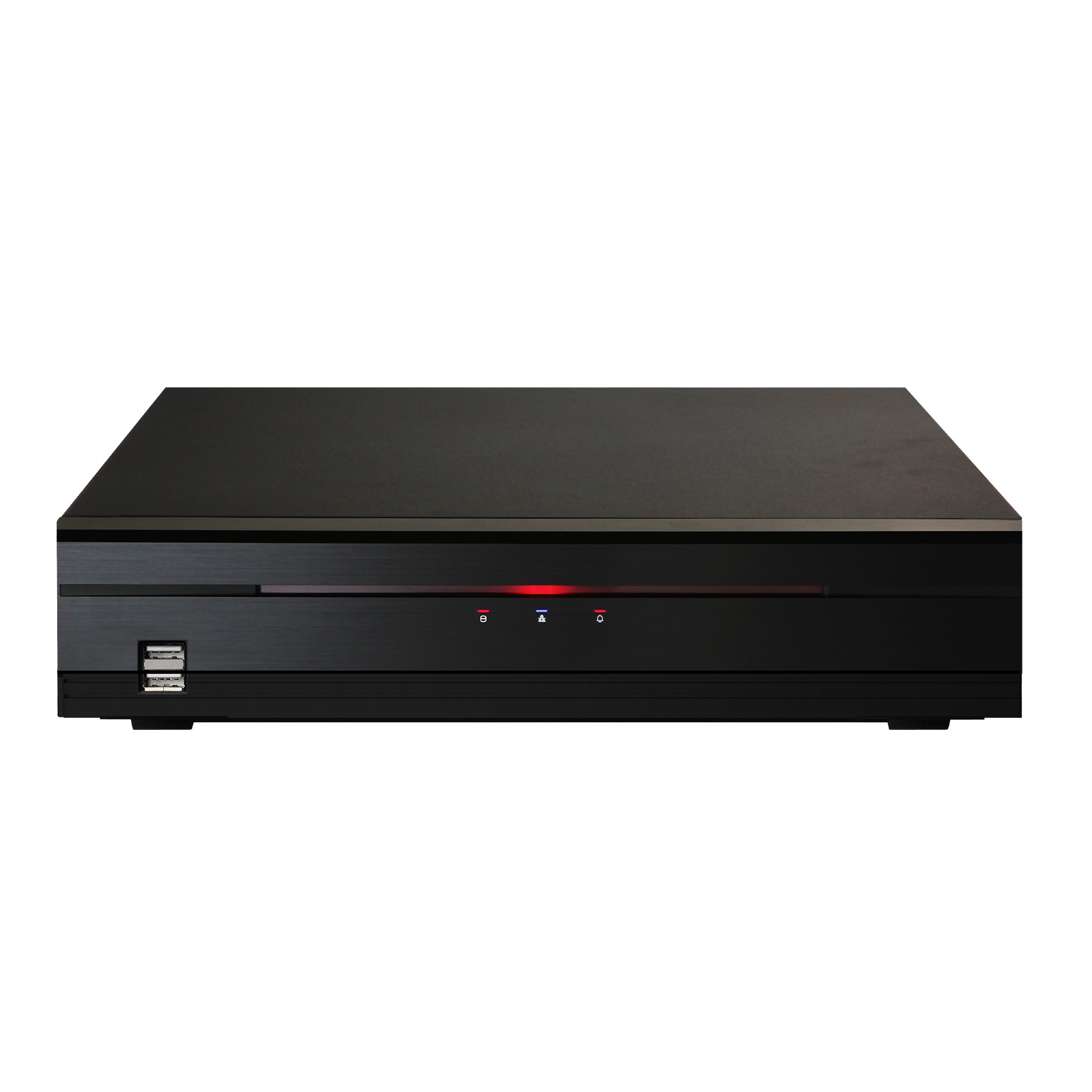

The IDIS DR-2508P-A DirectIP™ 2500 Series H.265 4K Recorder is a powerful video recording solution designed for high-definition surveillance systems. It supports up to 8 channels of 4K ultra-high-definition video, ensuring crystal-clear image quality. With advanced H.265 compression, this recorder efficiently reduces bandwidth and storage requirements, providing extended recording durations without compromising video quality. It is equipped with IDIS’s DirectIP™ technology, simplifying installation and integration with other security devices for seamless operation. The DR-2508P-A offers flexible storage options, including up to 48TB of storage capacity, making it suitable for long-term surveillance needs. This recorder supports both local and remote monitoring via the IDIS mobile app, giving users access to live and recorded video anytime, anywhere. The DR-2508P-A is compatible with IDIS Smart Failover, ensuring continuous recording even in the event of network disruptions. This model also features intuitive search and playback functions, enabling quick retrieval of important video events. With a sleek, rack-mountable form factor, it is an ideal choice for professional-grade security installations in various environments.

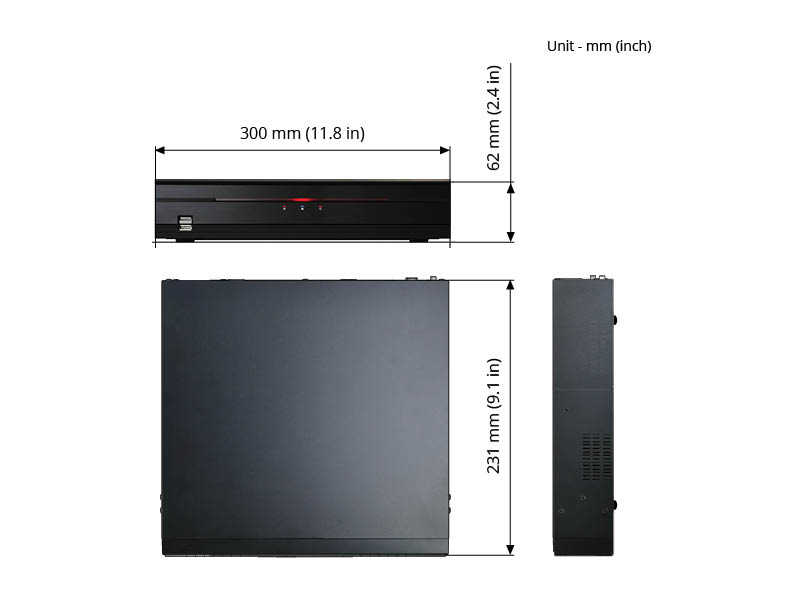

Dimension
Technical Specifications
Video | |
Video Inputs | 8 IP channels |
Max. Incoming Throughput | 270Mbps |
Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
Video Outputs | 1 HDMI, 1 VGA |
Display Resolution | HDMI : 3840×2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
Display Speed | Up to 240ips |
Digital Zoom | x2 ~ x12 |
NVR Side Dewarping | – |
Recording | |
Max. Throughput | 140Mbps, 240ips@UHD |
Recording Resolution | Up to 12MP (Depending on IP Camera) |
Video Compression | H.265, H.264 |
Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
Playback | |
Performance | 8ch synchronous playback 8ch 4K playback |
Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
Digital Zoom | x2 ~ x12 |
Storage | |
HDD | SATA x 2, eSATA x 1 |
Total Capacity | The maximum HDD capacity is updated as new HDD models become available. |
Network | |
Client Connection | Gigabit Ethernet(Client) x1 |
Video In Connection | Fast Ethernet(IP Camera) x8 + Gigabit Ethernet (Ext) x1 |
Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
PSE Power | PoE(IEEE 802.3at class 4) supported 8 ports, 100W |
Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
Two-way Audio | Yes |
Interface | |
Audio In / Out | Local(NVR) : – / 1RCA + 1HDMI IP Camera : 8 / 8 (Depending on IP Camera) |
Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 8 / 8 (Depending on IP Camera) |
Alarm Reset In | – |
Serial Interface | RS232 (Terminal Block) |
USB | USB 2.0 x 1, USB 3.0 x 1 |
User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
General | |
Operating System | Embedded Linux |
Environmental | |
Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
Operating Humidity | 0% ~ 90% |
Electrical | |
Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 54V=, 1.85A, 100W MAX |
Approval | FCC, CE, KC |
Mechanical | |
Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8″ x 2.4″ x 9.1″) |
Unit Weight | 2.3kg (5.1lb) (with 1 HDD) |
