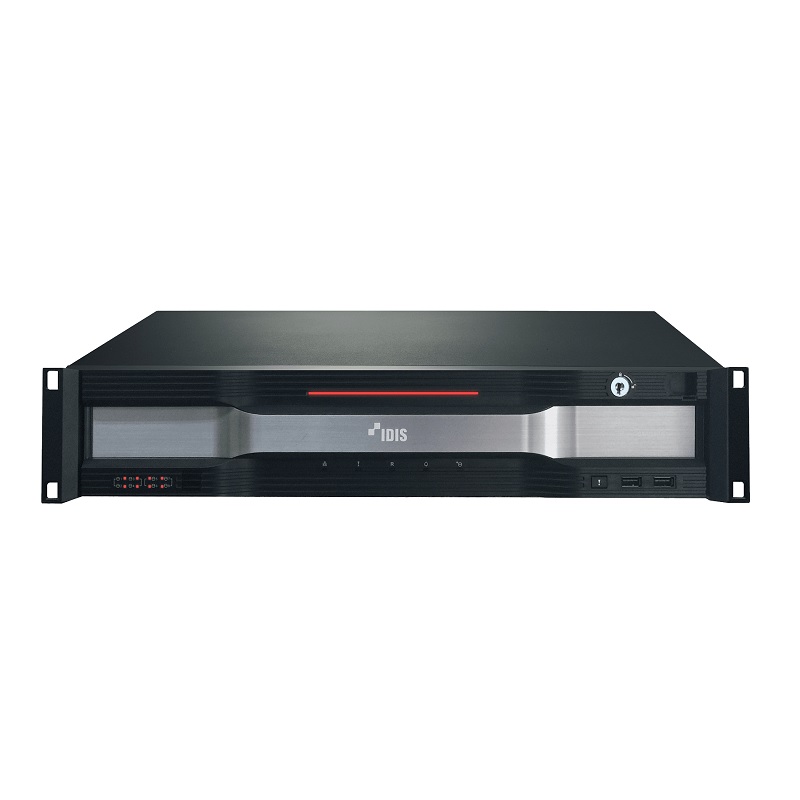

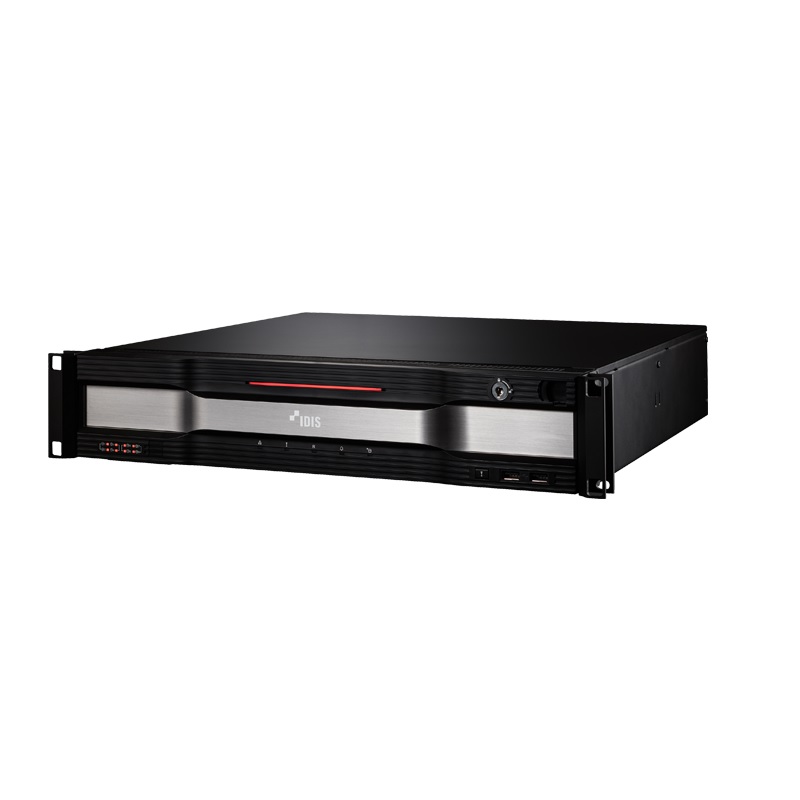

IDIS DR-8532D DirectIP 8500 Series H.265 4K Recorder, NDAA Compliant, 4TB HDD
The IDIS DR-8532D DirectIP™ 8500 Series H.265 4K Recorder is a high-performance NVR designed for large-scale security systems requiring extensive video storage and processing capabilities. Supporting up to 32 channels of 4K UHD video, it ensures superior image quality and detailed surveillance footage. This recorder uses advanced H.265 video compression technology, which significantly reduces bandwidth and storage requirements while maintaining high video quality. Equipped with a maximum of 370 Mbps network throughput, it can handle multiple streams seamlessly. The DR-8532D supports RAID 1, 5, 6 and 10 configurations, enhancing data redundancy and ensuring reliable storage for critical footage. Its intuitive interface allows for easy integration with IDIS’s DirectIP™ cameras, ensuring a plug-and-play experience. The recorder also offers scalable storage solutions, accommodating up to 144 TB with eSATA support, ideal for enterprises with long-term retention needs. Features like multi-layered cyber security protection ensure data safety against unauthorized access. The NVR is designed to support IDIS Smart Failover, which ensures continuous recording even during network disruptions. Additionally, the DR-8532D is compatible with various third-party cameras, making it a versatile solution for diverse security setups.
Key Features
- Total incoming throughput 370Mbps
- Up to 960ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 960ips live display
- Easy to install, set-up, and play with DirectIP cameras
- Expandable up to 144TB using eSATA storage
- Supports RAID 1, 5, 6, 10
- Supports Redundant Power
- Supports one-click network configuration through FEN service
- Supports third-party cameras (Axis, Panasonic, ONVIF, etc.)
$5,555.00 inc GST +3 Year Warranty & Support
32Ch
Redundant Power
DirectIP
FEN Service
Quickly Backup
Scalability
NDAA Compliant
Redundancy Protection
The IDIS DR-8532D DirectIP™ 8500 Series H.265 4K Recorder is a robust network video recorder (NVR) engineered for advanced surveillance needs. It supports up to 32 channels of 4K UHD video, providing crystal-clear image quality for critical monitoring. Utilizing H.265 video compression, the device minimizes bandwidth and storage demands while preserving video integrity. The NVR boasts a maximum recording throughput of 384 Mbps, enabling smooth video stream management even with multiple high-resolution cameras. With RAID 1, 5, 6 and 10 support, the DR-8532D ensures high-level data protection and redundancy, reducing the risk of data loss. Its compatibility with up to 144 TB of external storage via eSATA allows for extensive video retention, suitable for long-term archiving. The recorder integrates seamlessly with IDIS DirectIP™ cameras for plug-and-play functionality, simplifying installation and operation. Built-in Smart Failover technology guarantees continuous recording during network interruptions, enhancing system reliability. The DR-8532D is equipped with advanced cybersecurity features, safeguarding against unauthorized access and data breaches. Additionally, it supports third-party cameras, offering flexibility for a variety of surveillance setups.

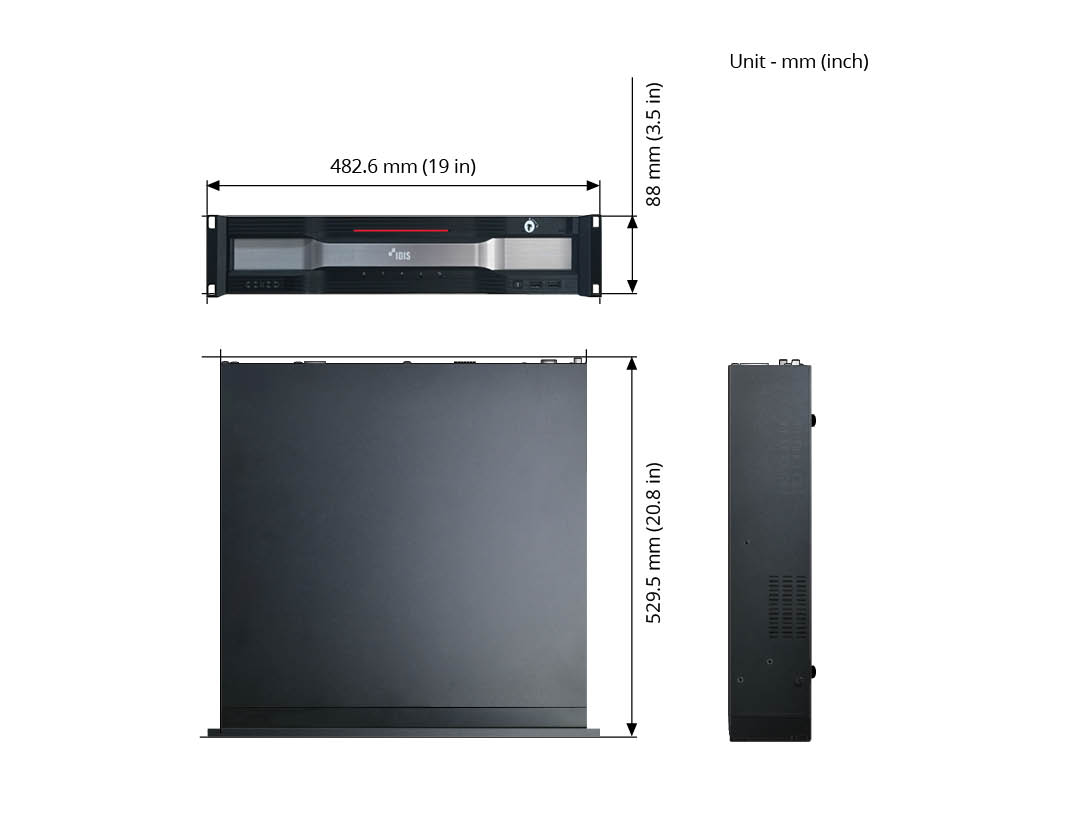

Dimension
Technical Specifications
| Video | |
| Video Inputs | 32 IP Channels |
| Max. Incoming Throughput | 370Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 960ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
| Recording | |
| Max. Throughput | 230Mbps, 960ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 32ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 8, eSATA x 4, RAID 1, 5, 6, 10 Supported |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available.For the most recent information, please check here |
| Network | |
| Client Connection | Gigabit Ethernet (Client) x 1 |
| Video In Connection | Gigabit Ethernet(Video In) x 3, SFP(Video In ) x 2 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| PSE Power | – |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 16 / 4 IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard, Front Button(Panic) |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 100-240V~, 50/60Hz, 8.0 – 4.0A, 100W x 2 |
| Approval | FCC, UL, CE, CB, KC, PSE |
| Mechanical | |
| Unit Dimensions (W x H x D) | 482.6mm x 88mm x 529.5mm (19″ x 3.5″ x 20.8″) |
| Unit Weight | 12.6kg (27.8lb) (with 2 HDDs) |
