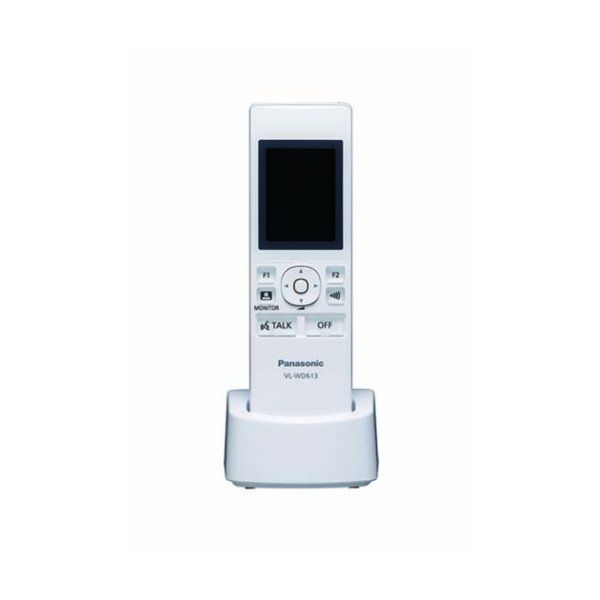

VL-WD613 |
||
Model number and name | Wireless Monitor Station (Sub monitor) | |
Main body |
Charger |
|
Power source |
Rechargeable Ni-MH (AAA x 2)
|
AC adaptor (PNLV226) Input: 220-240 V AC, 0.1 A, 50/60 Hz Output: 5.5 V DC, 0.5 A |
Power consumption |
— |
Standby: Approx. 0.4 W (when the sub monitor is not placed in the charger) During charging: Approx. 1.4 W |
Dimensions (H x W x D) (Excluding protruding sections) |
173 x 52 x 30 mm |
43 x 81 x 76 mm |
Weight | ||
160 g (including the batteries) | 70 g (excluding the AC adaptor) | |
Operating environment | ||
Ambient temperature: Approx. 0 °C to +40 °C Relative humidity (non-condensing): up to 90 % | Ambient temperature: Approx. 0 °C to +40 °C Relative humidity (non-condensing): up to 90 % | |
Display | 2.2-inch colour / QVGA (320×240 pixels) |
— |
Display language | Depends on main monitor |
— |
Talking method |
Hands-free |
— |
Frequency range | 1.88 GHz to 1.90 GHz |
— |
Transmitting range | Approx. 100 m (line-of-sight distance from the main monitor) |
— |
External material |
ABS resin |
ABS resin |
