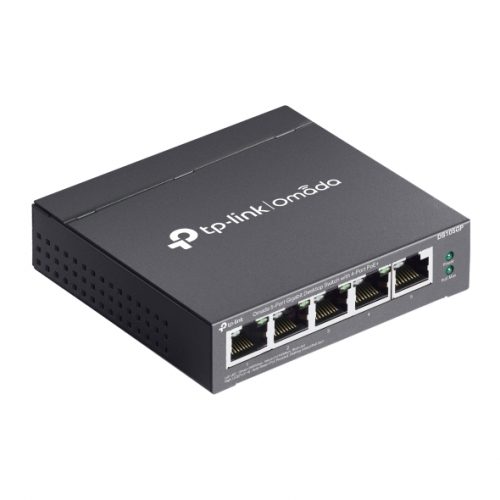

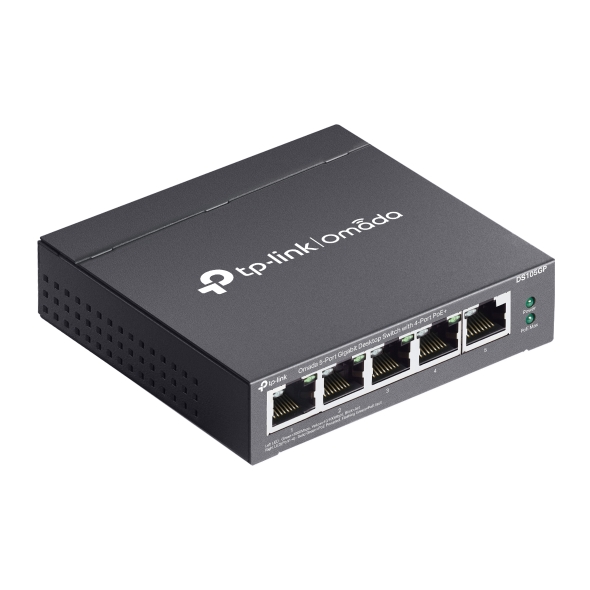

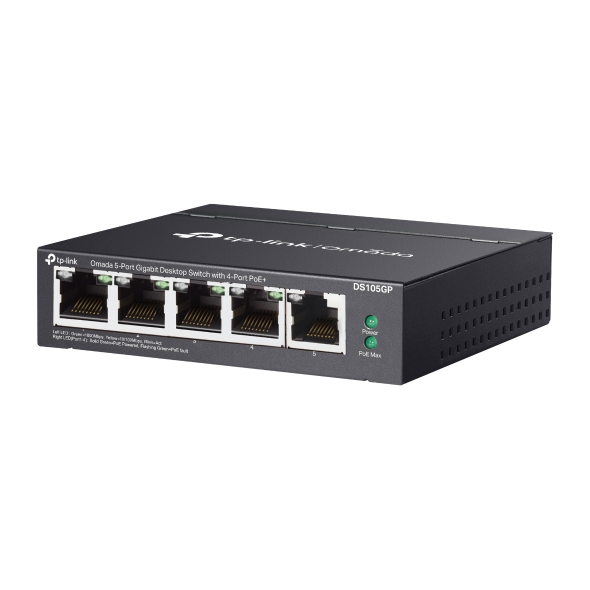

Tp-Link TL-DS105GP Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+
The Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+ (DS105GP) is designed to enhance small business networks with its five Gigabit RJ45 ports, four of which support PoE+ (Power over Ethernet) functionality. This allows the device to deliver both power and data over a single cable, simplifying installation for PoE-compliant devices like IP cameras, access points, and VoIP phones. The switch supports the IEEE 802.3af/at PoE standard, offering up to 30 W of power per port, with a total power budget of 65 W across all PoE ports. Additionally, the device supports transmission distances up to 250 meters in “Extend Mode,” making it ideal for long-range applications such as surveillance.
Key Features
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports*
- Up to 250m (820ft) data and power transmitting range under Extend Mode**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.†
The DS105GP’s fanless design ensures quiet operation, making it suitable for noise-sensitive environments like offices or retail spaces. Its QoS (Quality of Service) feature prioritizes latency-sensitive traffic, ensuring smooth video or voice data transfer. The switch also includes a PoE Auto Recovery feature, automatically rebooting unresponsive devices to maintain network stability. With its plug-and-play setup, the switch requires no configuration, making it easy to install and use. Its robust metal casing provides durability, and its compact size makes it an excellent choice for desktop setups.
$89.00 inc GST +3 Year Warranty & Support
The Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+ (DS105GP) is a compact and versatile networking solution designed for both home and business environments. It features five Gigabit Ethernet ports, four of which support Power over Ethernet Plus (PoE+) technology. This allows the switch to deliver both power and data over a single cable to connected devices like IP cameras, wireless access points, and VoIP phones, making installation easier and reducing cable clutter. The switch complies with IEEE 802.3af/at standards and provides a total PoE budget of 65W, with up to 30W per PoE port, ensuring compatibility with high-powered devices.
The DS105GP supports 802.1p/DSCP QoS, which prioritizes latency-sensitive traffic like voice and video, ensuring smooth performance in applications like video conferencing or IP camera surveillance. Another key feature is its PoE Auto Recovery, which automatically reboots unresponsive devices, enhancing network stability. The switch also includes an Extend Mode that increases the power and data transmission range up to 250 meters for long-distance deployments. With its fanless design, durable metal casing, and plug-and-play setup, this unmanaged switch is ideal for users seeking reliable, maintenance-free operation.
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 65 W with 30 W max per PoE+ port. When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
Specifications
| Model | DS105GP |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Interface | 5*10/100/1000 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4) |
| AUTO Negotiation/AUTO MDI/MDIX | Supported |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) |
| Max Power Consumption | 3.44 W (220 V/50 Hz, no PD connected) 74.54 W (220 V/50 Hz, with 65 W PD connected) |
| Max Heat Dissipation | 11.73 BTU/h (no PD connected) 254.18 BTU/h (with 65 W PD connected) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1 – Port 4 Power Supply: 65 W |
| Transmission Method | Store-And-Forward |
| Switch Capacity | 10 Gbps |
| MAC Address Table | 2K |
| Extend Mode | For Ports 1-2 |
| PoE Auto Recovery | For Ports 1-4 |
| Fan Quantity | Fanless |

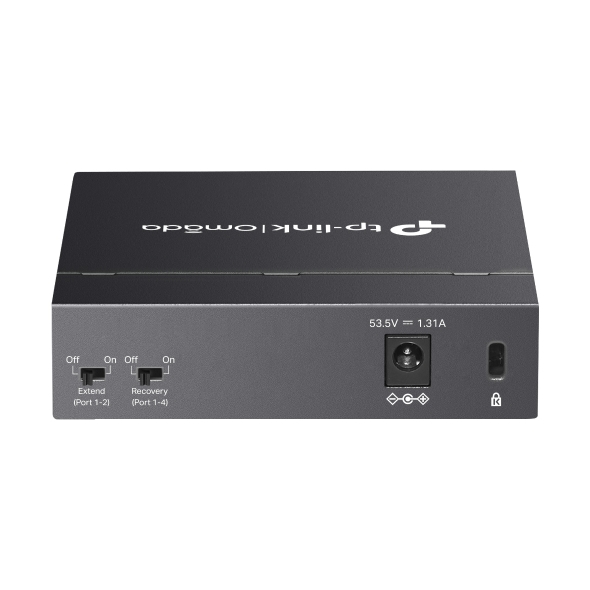

| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |

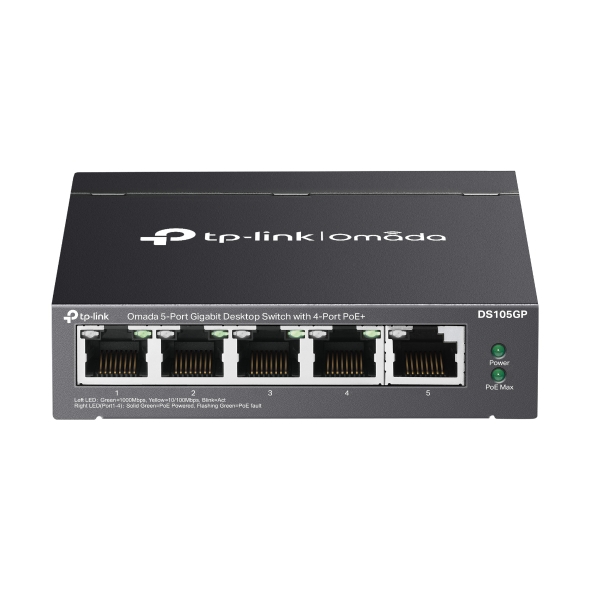

| LED | Power, Link/Act, PoE Status, PoE Max |
| Dimensions (W x D x H) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
| Certification | FCC, CE, RoHS |
| Package Contents | Switch, Power Adapter, Installation Guide |
