Tp-Link TL-DS106P Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+

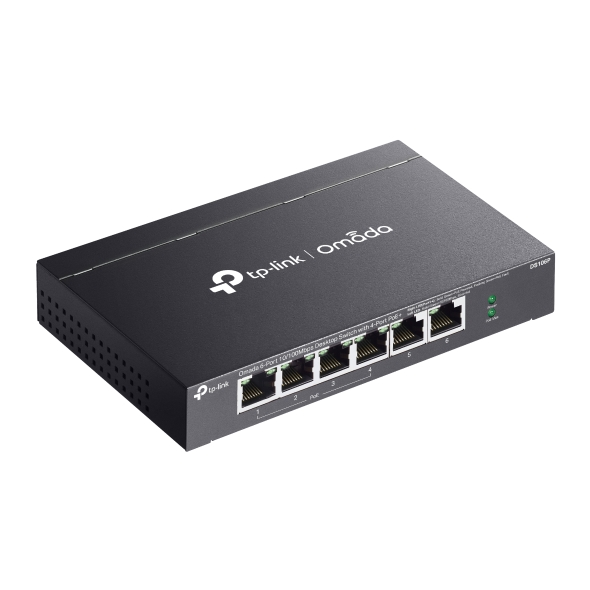

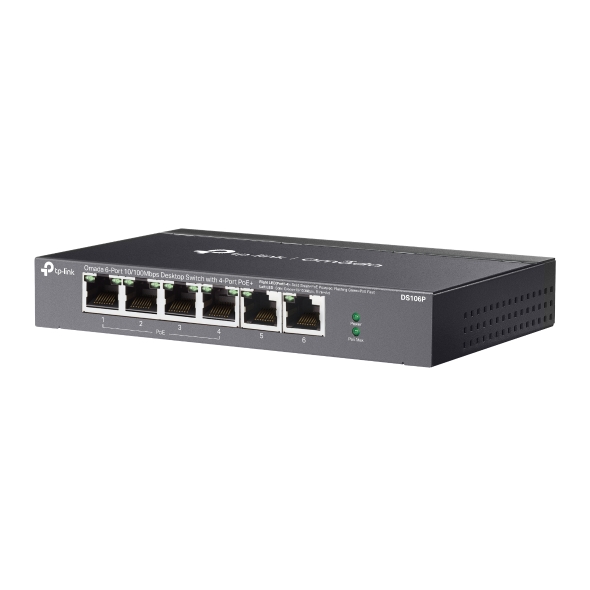

The Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+ (DS106P) is designed to deliver both power and data through a simple and efficient plug-and-play setup, making it ideal for small business or home office environments. The switch features six RJ45 ports, with four PoE+ ports supporting the IEEE 802.3af/at standard, allowing them to provide power and data simultaneously over a single Ethernet cable. Each PoE+ port can supply up to 30W of power, and the total PoE budget for the switch is 67W, ensuring you can power devices like IP cameras, access points, or VoIP phones easily.
Key Features
- × 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required

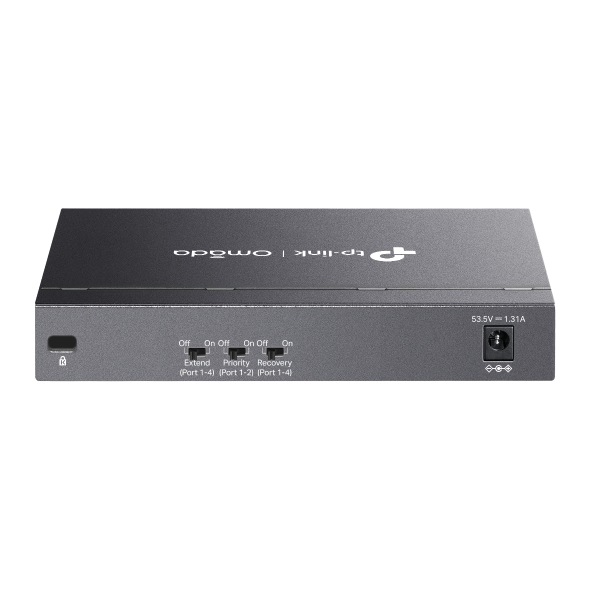

The switch also supports an Extend Mode for longer distances, enabling data and power transmission up to 250 meters. It includes PoE Auto Recovery, automatically rebooting unresponsive devices, and Priority Mode for prioritizing traffic on ports 1 and 2, ensuring critical devices receive the necessary bandwidth. The fanless metal design enhances durability and ensures quiet operation. With a 1.2 Gbps switching capacity, auto-negotiation, and auto MDI/MDIX, the DS106P is versatile and convenient for expanding network connectivity without requiring technical expertise.
$74.00 inc GST +3 Year Warranty & Support
The Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+ (DS106P) is a versatile networking solution designed for small offices, dormitories, and surveillance systems. It features six 10/100 Mbps RJ45 ports, with four supporting PoE+ (Power over Ethernet), providing both data and power on a single cable. Each PoE+ port can supply up to 30W of power, with a total PoE budget of 67W across all four ports. This makes it ideal for powering devices like IP cameras, access points, and IP phones, reducing the need for separate power cables. The device is plug-and-play, requiring no configuration, making it simple to install and deploy.
The DS106P also supports an extended transmission range of up to 250 meters in “Extend Mode,” which is useful for long-distance deployments. In addition, “Priority Mode” ensures that sensitive applications like video or voice data on ports 1 and 2 receive higher priority. The “PoE Auto Recovery” feature automatically reboots unresponsive powered devices to ensure stability. Its fanless design enhances reliability and reduces noise. Overall, this switch offers a balance of performance and cost-effectiveness, especially for surveillance and small network setups.
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.
One-click Port Priority
Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.
PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 0.8928 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Max Power Consumption | • 2.52 W (220 V / 50 Hz, no PD connected) • 75.4 W (220 V / 50 Hz, with 67 W PD connected) |
| Max Heat Dissipation | • 8.59 BTU/h (no PD connected) • 257.11 BTU/h (with 67 W PD connected) |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • PoE Auto Recovery: Ports 1–4 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | • DS106P • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
