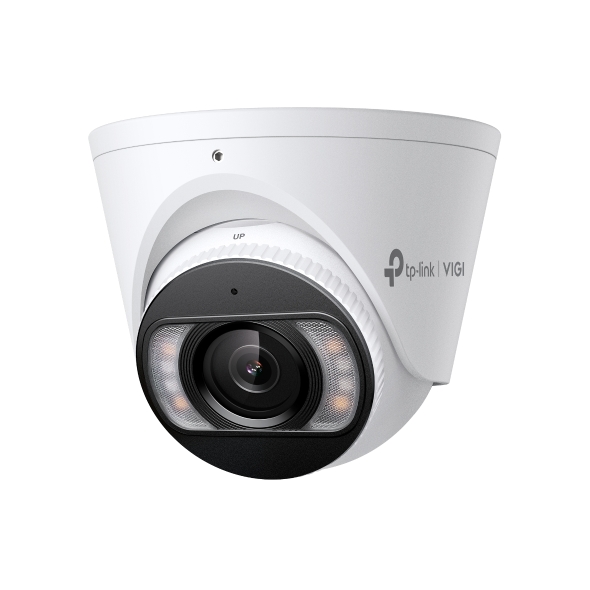

The InSight S485 is a high-performance network camera designed by TP-Link to meet modern surveillance needs. This 8MP turret camera delivers ultra-high-definition 4K resolution, ensuring crystal-clear video quality. It features 24/7 full-color imaging supported by advanced illumination technologies, including IR and white LEDs with a range of up to 30 meters. The camera includes intelligent analytics such as human and vehicle classification, intrusion detection, and region monitoring, making it ideal for both residential and commercial security applications.
Built to withstand harsh environments, the InSight S485 is IP67-rated for water and dust resistance. It supports two-way audio communication and utilizes H.265+ compression technology for efficient video storage and streaming. With a range of lens options (2.8mm and 4mm), manual angle adjustments, and compatibility with the VIGI app, cloud platforms, and ONVIF protocols, the camera offers flexibility and easy integration into existing security setups.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
In the Box
Build Features
Technical Specifications
| CAMERA |
| Image Sensor |
1/2.7ā Progressive Scan CMOS |
| Shutter Speed |
1/3 to 1/10000 s |
| Slow Shutter |
Yes |
| Minimum Illumination |
0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Unified/ Scheduled/ Auto |
| LENS |
| Type |
Fixed Focal Lens |
| Focal Length |
2.8/4 mm |
| Aperture |
F1.6 |
| FOV |
ā¢ 2.8 mm:Horizontal FOV: 111.4Ā°, Vertical FOV: 58.8Ā°, Diagonal FOV: 134Ā°ā¢ 4 mm:Horizontal FOV: 91.5Ā°, Vertical FOV: 46.1Ā°, Diagonal FOV: 109.6Ā° |
| Lens Mount |
M12*P 0.5 |
| DORI Distance |
ā¢ 2.8 mmDetect: 85 m (278 ft)Observe: 35 m (116 ft)Recognize: 17 m (56 ft)Identify: 8 m (28 ft)ā¢ 4 mmDetect: 107 m (350 ft)Observe: 44 m (146 ft)Recognize: 21 m (70 ft)Identify: 11 m (35 ft) |
| Angle Adjustment (Manual) |
| Range |
Pan: 0Ā° to 360Ā°, Tilt: 0Ā° to 85Ā°, Rotation: 0Ā° to 360Ā° |
| ILLUMINATOR |
| IR LED |
Quantity: 4Range: 30mWavelength: 850nm |
| White LED |
Quantity: 4Range: 30m |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| VIDEO |
| Max. Resolution |
3840 X 2160 |
| Main Stream |
ā¢ Frame Rateļ¼50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fpsā¢ Resolution:3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080,1280×720ā¢ Note: If the image rotation is set to 90Ā° or 270Ā°, the frame rate only supports up to 20fps.If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream |
ā¢ Frame Rateļ¼50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fpsā¢ Resolution:848×480, 704×576, 640×480, 640×360, 352×288, 320×240ā¢ Note: If the image rotation is set to 90Ā° or 270Ā°, the frame rate only supports up to 20fps.If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264 |
| H.264 Type |
High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile* |
| H.265+ |
Main Stream Supported* |
| Video Bit Rate |
Main Stream: 256 Kbps to 8 MbpsSub-Stream: 64 Kbps to 512 Kbps |
| Image |
| Image Settings |
ā¢ Mirrorā¢ Brightnessā¢ Contrastā¢ Saturationā¢ Sharpnessā¢ Exposureā¢ WDRā¢ White Balanceā¢ Prevent Overexposure to Infrared Lightā¢ HLC Adjustable by Client Software |
| Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range |
120 dBNote: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR |
ā„ 52 dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| OSD Setting |
Yes |
| AUDIO |
| Audio Communication |
Two-Way Audio |
| Audio Input |
Yes |
| Audio Output |
Yes |
| Audio Compression |
Yes |
| Audio Sampling Rate |
8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate |
64 Kbps(G.711 alaw) |
| NETWORK |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF |
Yes |
| API |
ONVIF Profile S/T/G |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser |
Google ChromeĀ® 57 and aboveFirefoxĀ® 52 and aboveSafariĀ® 11 and aboveMicrosoftĀ® Edge 91 and above |
| Cloud |
Yes |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT |
| Smart Event |
ā¢ Intrusion Detectionā¢ Line-Crossing Detectionā¢ Region Entering Detectionā¢ Region Exiting Detectionā¢ Object Abandoned Detectionā¢ Object Removal Detectionā¢ Loitering Detectionā¢ People Detectionā¢ Vehicle Detectionā¢ Abnormal Sound Detectionā¢ Scene Change Detection |
| Basic Event |
ā¢ Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)ā¢ Video Tampering Detectionā¢ Exception ( Illegal Login) |
| Alarm Linkage |
ā¢ Memory Card Video Recordingā¢ Message Pushā¢ Audible Warningā¢ White Light Flashing |
| Linkage Method |
N/A |
| Output Notification |
Message Push |
| Deep Learning Function |
| People & Vehicle Analytics |
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.Ā§ |
| INTERFACES |
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm |
N/A |
| Reset Button |
Yes |
| Power |
DC Power Port |
| On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Microphone |
Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker |
Yes |
| Audio |
N/A |
| GENERAL |
| Operating Temperature |
-30ā60 Ā°C |
| Storage Temperature |
-40ā60 Ā°C |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Package Contents |
VIGI Network CameraQuick Start GuideWaterproof Cable AttachmentsMounting Accessories |
| Material |
Metal |
| Net Weight |
0.48 Kg |
| Power Supply |
12V DC Ā± 5%, Max. 11.5 W, 5.5 mm Coaxial Power PlugPoE: 802.3af/at, class 0, Max. 12.5 W |
| Protection |
IP67 |
| Product Dimensions (L x W x H) |
4.4 Ć 4.4 Ć 3.3 in (111 Ć 111 Ć 83.7 mm) |
| Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IC |
