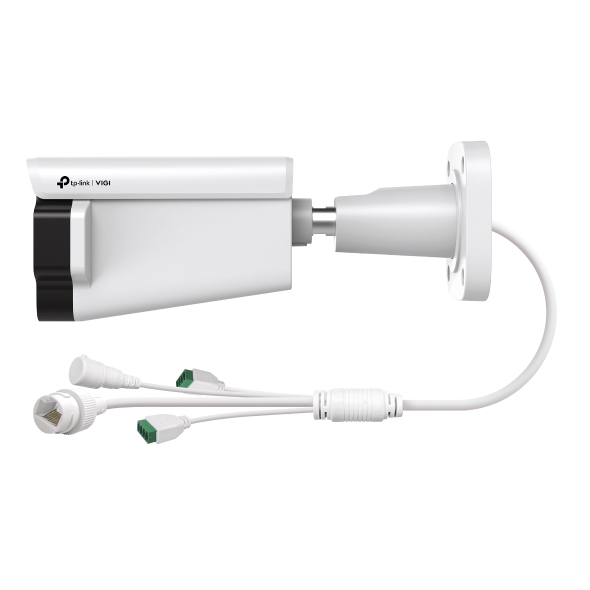

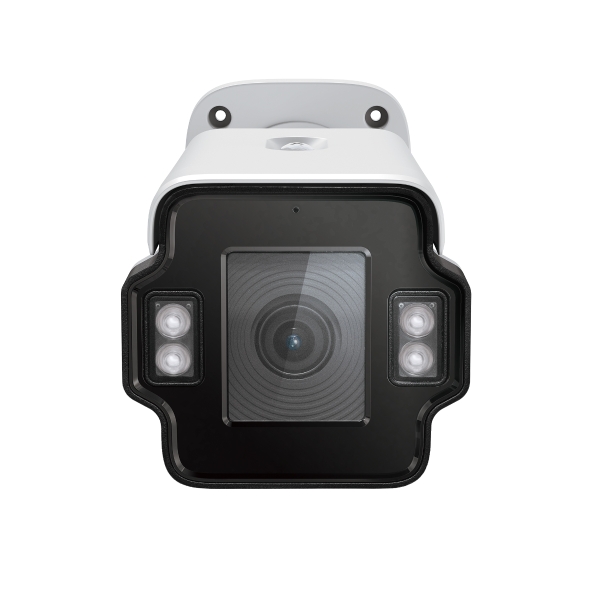

TP-Link VIGI Insight S345ZI 4MP Bullet Vari-focal Camera
The TP-Link VIGI InSight S345ZI is a 4MP outdoor IR motorized varifocal bullet network camera designed to deliver high-definition surveillance with enhanced clarity and precision. Its motorized varifocal lens offers a 5X optical zoom, allowing users to adjust the field of view to focus on specific areas of interest, thereby reducing unnecessary detection zones and improving target visibility. The camera’s infrared capabilities provide clear night vision up to 60 meters (197 feet), ensuring reliable monitoring in low-light conditions.
Key Features:
- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 60m (197ft)
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Create an account and log in to see prices
Request a QuoteThe TP-Link VIGI Insight S345ZI is a versatile 4MP motorized vari-focal bullet network camera, designed for robust outdoor security. With a 2.7–13.5 mm lens offering 5x optical zoom, the camera delivers high-resolution images at a maximum resolution of 2688×1520 pixels. It supports advanced features like 120dB Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (DNR), ensuring clear image capture even in challenging lighting conditions. The camera is equipped with an IR illuminator providing night vision up to 60 meters, making it ideal for 24/7 surveillance in diverse environments.
For seamless video management, the S345ZI leverages H.265+ compression technology, reducing storage and bandwidth usage significantly compared to older codecs. It supports multiple smart detection features, including intrusion, line crossing, and abnormal sound detection, enabling precise monitoring and automated alerts. Users can access live feeds and manage settings via the VIGI app, VIGI Security Manager, or VIGI Cloud VMS. Additionally, the device supports PoE (Power over Ethernet), simplifying installation by combining power and data delivery through a single cable. This camera is a comprehensive solution for business security needs.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Build Features
Technical Specifications
| CAMERA | |
|---|---|
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Motorized Varifocal Lens |
| Focal Length | 2.7-13.5 mm (5X Optical Zoom) |
| Aperture | F1.6 |
| FOV | 2.7-13.5 mm:• Horizontal FOV: 29.6°-102.0° • Vertical FOV: 16.8°-53.8°• Diagonal FOV: 34.1°-122.8° |
| Lens Mount | Φ14 |
| DORI Distance | 2.7-13.5 mm:• Detect: 66-207 m (217-579 ft)• Observe: 28-86 m (92-282 ft)• Recognize: 13-41 m (43-135 ft)• Identify: 7-21 m (23-69 ft) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | |
|---|---|
| IR LED | • Quantity: 4• Range: 60m (197ft)• Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920x1080Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:1280×720, 848×480, 704×576, 640×480, 640×360, 352×288, 320×240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 512 Kbps to 1024 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording• Message Push• Audible Warning• Email Alarm• Upload Capture to FTP• Alarm Out Device |
| Linkage Method | N/A |
| Output Notification | • Message Push• Email Alarm• Upload Capture to FTP |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Metal |
| Net Weight | 1.04 Kg |
| Power Supply | • 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max.12 W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 10.1 × 3.9 × 4 in (256 × 100 × 101 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
