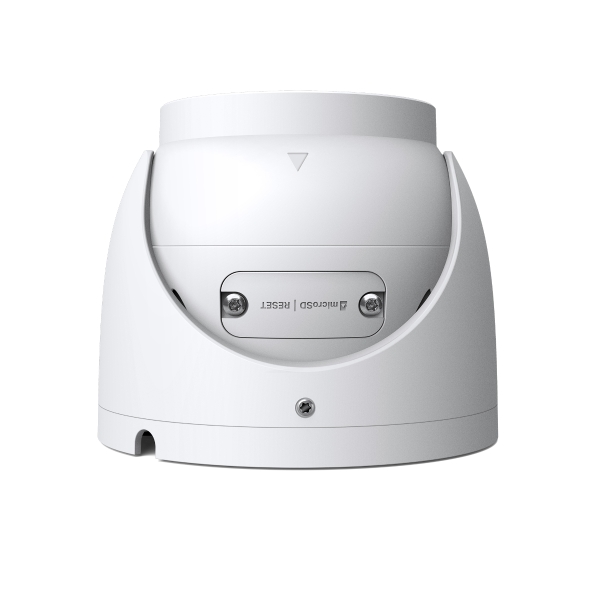

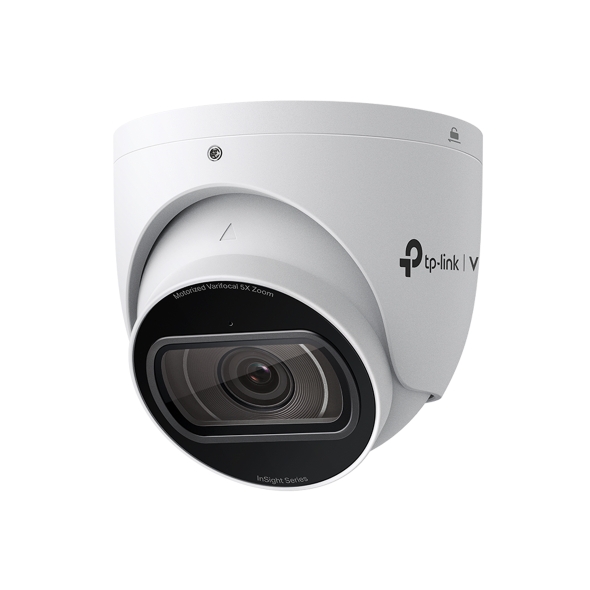

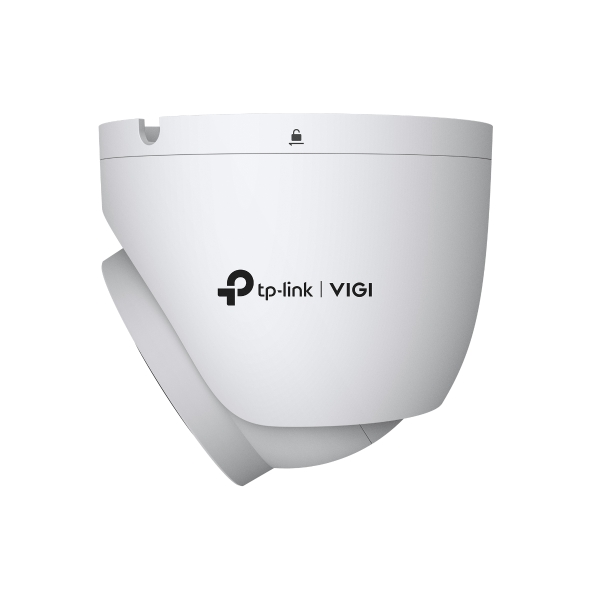

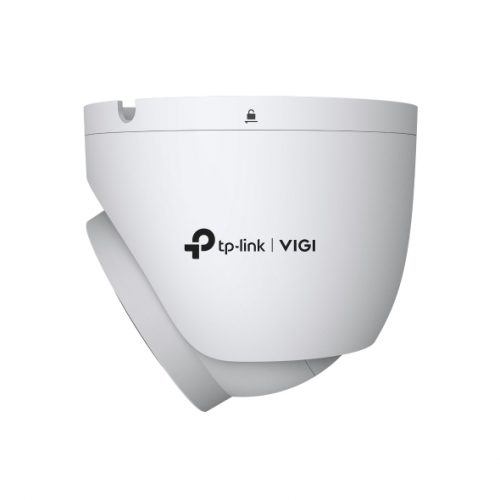

The InSight S445ZI, part of TP-Link’s VIGI series, is a 4MP IR motorized varifocal turret network camera designed for professional surveillance. With a 1/2.9″ Progressive Scan CMOS sensor, it offers crystal-clear video at a maximum resolution of 2688 x 1520 pixels. The camera features a motorized varifocal lens with a 5x optical zoom (2.7-13.5 mm focal length) and an F1.6 aperture, ensuring adaptability for different viewing angles. It also boasts a powerful infrared illuminator with a range of up to 60 meters, enabling night vision and consistent image quality in low-light conditions. Its wide dynamic range (WDR) of 120 dB enhances the clarity of images in scenes with both bright and dark areas.
The S445ZI supports advanced features like two-way audio communication, intelligent event detection (e.g., motion, intrusion, and loitering), and video compression with H.265+ technology to save bandwidth and storage. It provides flexible management options via the VIGI app, Security Manager, web interface, or cloud VMS, offering secure access with password protection and encryption. This robust design, coupled with a durable housing, makes it suitable for diverse environmentsā.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Build Features
Technical Specifications
| CAMERA |
| Image Sensor |
1/2.9ā Progressive Scan CMOS |
| Shutter Speed |
1/3 to 1/10000 s |
| Slow Shutter |
Yes |
| Minimum Illumination |
0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Unified/ Scheduled/ Auto |
| LENS |
| Type |
Motorized Varifocal Lens |
| Focal Length |
2.7-13.5 mm (5X Optical Zoom) |
| Aperture |
F1.6 |
| FOV |
2.7-13.5 mm:ā¢ Horizontal FOV: 29.6Ā°-102.0Ā° ā¢ Vertical FOV: 16.8Ā°-53.8Ā°ā¢ Diagonal FOV: 34.1Ā°-122.8Ā° |
| Lens Mount |
Ī¦14 |
| DORI Distance |
2.7-13.5 mm:ā¢ Detect: 66-207 m (217-579 ft)ā¢ Observe: 28-86 m (92-282 ft)ā¢ Recognize: 13-41 m (43-135 ft)ā¢ Identify: 7-21 m (23-69 ft) |
| Angle Adjustment (Manual) |
| Range |
Pan: 0Ā° to 360Ā°, Tilt: 0Ā° to 77Ā°, Rotation: 0Ā° to 360Ā° |
| ILLUMINATOR |
| IR LED |
ā¢ Quantity: 4ā¢ Range: 60m (197ft)ā¢ Wavelength: 850nm |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| VIDEO |
| Max. Resolution |
2688 x 1520 |
| Main Stream |
ā¢ Frame Rateļ¼50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsā¢ Resolution:2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920x1080Note: ā¢ If the image rotation is set to 90Ā° or 270Ā°, the frame rate only supports up to 20fps. |
| Sub-Stream |
ā¢ Frame Rateļ¼50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsā¢ Resolution:1280×720, 848×480, 704×576, 640×480, 640×360, 352×288, 320×240ā¢ Note: If the image rotation is set to 90Ā° or 270Ā°, the frame rate only supports up to 20fps. |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
ā¢ Main Stream: H.265+/H.265/H.264+/H.264ā¢ Sub-Stream: H.265/H.264 |
| H.264 Type |
High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile |
| H.265+ |
Main Stream Supported |
| Video Bit Rate |
ā¢ Main Stream: 256 Kbps to 6 Mbpsā¢ Sub-Stream: 512 Kbps to 1024 Kbps |
| Image |
| Image Settings |
ā¢ Mirrorā¢ Brightnessā¢ Contrastā¢ Saturationā¢ Sharpnessā¢ Exposureā¢ WDRā¢ White Balanceā¢ Prevent Overexposure to Infrared Lightā¢ HLC Adjustable by Client Software |
| Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range |
120 dB |
| SNR |
ā„ 52 dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| OSD Setting |
Yes |
| AUDIO |
| Audio Communication |
One-Way Audio |
| Audio Input |
Yes |
| Audio Output |
Yes |
| Audio Compression |
Yes |
| Audio Sampling Rate |
8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate |
64 Kbps(G.711 alaw) |
| NETWORK |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF |
Yes |
| API |
Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser |
ā¢ Google ChromeĀ® 57 and aboveā¢ FirefoxĀ® 52 and aboveā¢ SafariĀ® 11 and aboveā¢ MicrosoftĀ® Edge 91 and above |
| Cloud |
Yes |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT |
| Smart Event |
ā¢ Intrusion Detectionā¢ Line-Crossing Detectionā¢ Region Entering Detectionā¢ Region Exiting Detectionā¢ Object Abandoned Detectionā¢ Object Removal Detectionā¢ Loitering Detectionā¢ People Detectionā¢ Vehicle Detectionā¢ Abnormal Sound Detectionā¢ Scene Change Detection |
| Basic Event |
ā¢ Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)ā¢ Video Tampering Detectionā¢ Exception ( Illegal Login) |
| Alarm Linkage |
ā¢ Memory Card Video Recordingā¢ Message Pushā¢ Audible Warningā¢ Email Alarmā¢ Upload Capture to FTPā¢ Alarm Out Device |
| Linkage Method |
N/A |
| Output Notification |
ā¢ Message Pushā¢ Email Alarmā¢ Upload Capture to FTP |
| INTERFACES |
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm |
1 Alarm In, 1 Alarm Out |
| Reset Button |
Yes |
| Power |
DC Power Port |
| On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone |
Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker |
N/A |
| Audio |
1 Audio In, 1 Audio Out |
| GENERAL |
| Operating Temperature |
-30ā60 Ā°C |
| Storage Temperature |
-40ā60 Ā°C |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Package Contents |
ā¢ VIGI Network Cameraā¢ Quick Start Guideā¢ Waterproof Cable Attachmentsā¢ Mounting Accessories |
| Material |
Metal |
| Net Weight |
0.71 Kg |
| Gross Weight |
0.96 Kg |
| Power Supply |
ā¢ 12V DC Ā± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plugā¢ PoE: 802.3af/at, class 0, Max.12 W |
| Protection |
IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) |
Ī¦4.4 Ć 3.6 in (Ī¦112.3 Ć 92.5 mm) |
| Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
