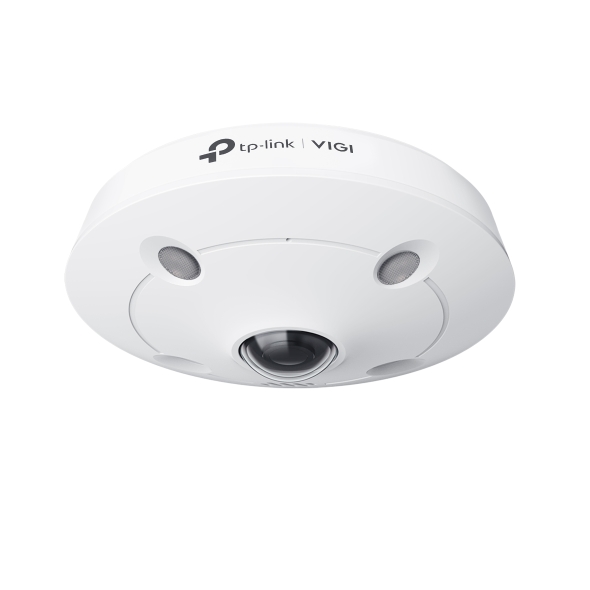

TP-Link VIGI Insight S655I 5MP Fisheye Eco Camera
The TP-Link VIGI InSight S655I is a 5MP IR fisheye network camera designed to deliver comprehensive surveillance with its 360° panoramic coverage, effectively eliminating blind spots. Equipped with infrared night vision, it ensures clear imaging even in low-light conditions. The camera supports multiple display modes—including fisheye, cylinder, and 360° panorama views—allowing users to select the most suitable perspective for their monitoring needs. Additionally, the electronic pan-tilt-zoom (ePTZ) feature enables real-time zooming and tracking without physical camera movement, enhancing monitoring flexibility.
Key Features:
- 5MP Super-High Definition and IR Night Vision
- 360° Coverage without Blind Spots
- Supports Multiple Display Modes△ and ePTZ
- Supports Ceiling Mount / Wall Mount / Pendant Mount§
- Smart Detection
- Smart Video Enhancement Technology
- Built-In Microphone & Speaker
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
- Suitable for Small Indoor Areas like Retail Shops and Offices
Create an account and log in to see prices
Request a QuoteThe TP-Link VIGI Insight S655I is a 5MP fisheye eco camera designed for comprehensive surveillance with its 360° panoramic coverage. It features a 1/2.7” CMOS sensor capable of capturing high-definition (2560 x 1920) video, with options for ceiling, wall, or pendant mounting. Its fisheye lens provides various display modes, including AR dewarp, 180°/360° panoramas, and multi-view PTZ. Equipped with H.265+ compression technology, it efficiently reduces storage and bandwidth requirements while maintaining exceptional image quality. Smart features like intrusion and line-crossing detection enhance its utility for business and residential settings.
The camera includes four IR LEDs for night vision up to 30 meters, ensuring consistent performance even in low-light conditions. It supports two-way audio with a built-in microphone and speaker, allowing real-time communication. Additionally, it offers IP67 and IK10 ratings for durability against weather and vandalism. The S655I integrates seamlessly with TP-Link’s VIGI ecosystem, enabling management via the VIGI app or cloud platform. Its advanced capabilities, combined with robust build quality, make it an ideal solution for detailed and flexible surveillance needs.
Build Features
Technical Specifications
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 1.44 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180° |
| Lens Mount | M12*P0.5 |
| DORI Distance | Detect: 28.8 m (94 ft)Observe:12 m (39 ft)Recognize: 5.7 m (19 ft)Identify: 2.8 m (9 ft) |
| Fisheye Display | |
|---|---|
| Installation | Ceiling Mount; Wall Mount; Pendant Mount§ |
| Display Mode | • Ceiling Mount:Fisheye, AR Dewarp, 180 Panorama, 360 Panorama Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ• Wall Mount:Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ |
| Angle Adjustment (Manual) | |
|---|---|
| Range | N/A |
| ILLUMINATOR | |
|---|---|
| IR LED | • Quantity: 4• Range: 30m• Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2560 × 1920 |
| Main Stream | • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If WDR is on, the frame rate only supports up to 15fps. |
| Sub-Stream | • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:640 × 480, 320 × 240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If WDR is on, the frame rate only supports up to 15fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
|---|---|
| Image Settings | • Brightness• Contrast• Saturation• Sharpness• Exposure• WDR,• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Abnormal Sound Detection |
| Basic Event | • Motion Detection• Video Tampering Detection• Exception ( Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording• Message Push• Audible Warning |
| Linkage Method | N/A |
| Output Notification | • Message Push• Email Alarm• Upload Capture to FTP |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§ |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Metal |
| Net Weight | • 0.44 Kg ( without Mounting Accessories)• 0.48 Kg ( with Mounting Accessories) |
| Power Supply | • 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 12.14W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 5.2 × 5.2 × 2.2 in (132 × 132 × 56mm) |
| Certifications | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
