TP-Link VIGI NVR4016H 4-bay 16ch NVR
The TP-Link VIGI NVR4016H is a high-performance 16-channel network video recorder (NVR) designed for comprehensive surveillance solutions. Equipped with four bays, it supports up to 16 TB of storage per hard drive, ensuring ample space for high-quality video recording. Its advanced video compression technologies, including H.265+ and H.264+, allow for efficient storage utilization without compromising video clarity. The NVR4016H offers versatile video output options, including HDMI and VGA, with resolutions up to 4K, enabling detailed live monitoring and playback. It also features intelligent playback options such as motion detection and event playback to streamline surveillance management.
Key Features:
- 16-Channel Live View and 4K HDMI Video Output
- Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
- 16-Channel Synchronous Playback†
- 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
- 4× SATA Interfaces and 1 Up to 16 TB*
- H.265+ Compression Technology
- 2 HDMI and 1 VGA Video Output
- Remote Monitoring
Create an account and log in to see prices
Request a QuoteThe TP-Link VIGI NVR4016H is a 16-channel network video recorder designed to deliver comprehensive surveillance solutions for small to medium-sized businesses. It supports real-time monitoring with 16-channel live view and offers 4K HDMI video output, ensuring high-definition clarity for detailed surveillance footage. The device features dual Ethernet ports, enabling network fault tolerance and port aggregation for enhanced data reliability and increased bandwidth. With a decoding capability of up to 10 channels at 3MP (25fps) or 16 channels at 1080P (25fps), the NVR4016H provides flexible viewing options to suit various security needs.
Equipped with four SATA interfaces, each supporting up to 16 TB of storage, the NVR4016H is built for extensive recording requirements, making it ideal for continuous, high-definition monitoring. It utilizes H.265+ compression technology to efficiently reduce bandwidth and storage usage without compromising video quality. The device also supports 16-channel synchronous playback, allowing users to review multiple camera feeds simultaneously. Remote monitoring is facilitated through the dedicated VIGI app and web interface, providing convenient access to surveillance feeds from any location.

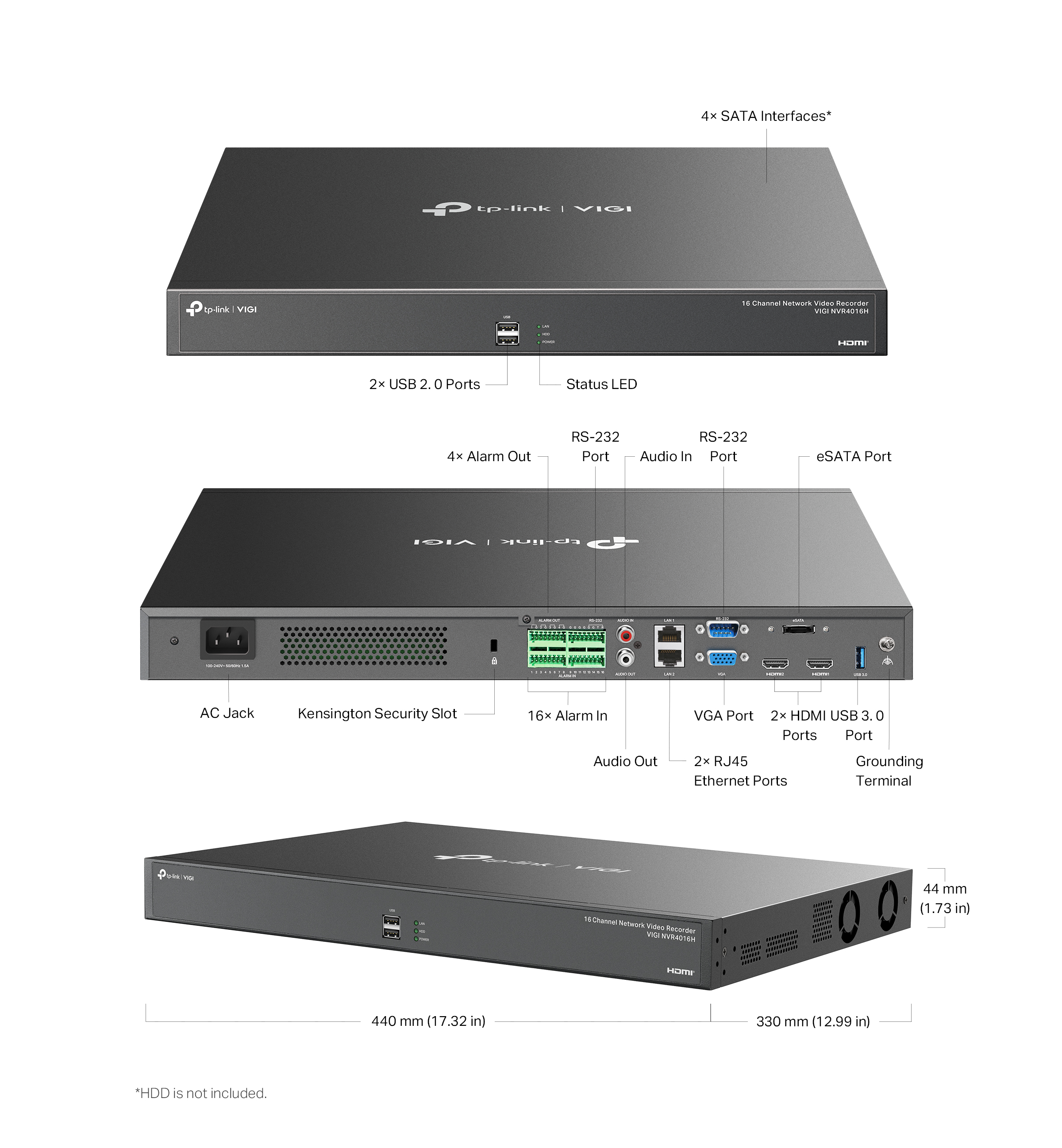

Build Features
Technical Specifications
| Video and Audio | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 2 Channels• HDMI1 Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz• HDMI2 Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode | • HDMI1/HDMI2 Independent output• HDMI1/VGA Independent outputNote: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output. |
| Multi-View Display | 1,4,6,8,9,16 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | • 25fps:10-ch@3MP、16-ch@1080P• 30fps:4-ch@8MP、6-ch@5MP、8-ch@4MP |
| Record Management | |
|---|---|
| Record Mode | • Manual Recording• Scheduling Recording• Motion Detection Recording |
| Playback Mode | • Instant Playback• Regular Playback• Tag Playback• Event Playback |
| Backup Mode | • Regular Backup• Video Clip Backup |
| Playback Function | • Play• Pause• Stop• Fast Forward• Fast Backward• Play By Frame• Full Screen• Video Clip• Export Clip• Digital Zoom• Lock Recording• Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
| External Interface | |
|---|---|
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
| Alarm | |
|---|---|
| General Alarm | • Motion Detection• Video Tampering• Scene Change Detection• Line-Crossing Detection• Intrusion Detection• Region Entering Detection• Region Exiting Detection• Loitering Detection• Object Abandoned/Removal Detection• Vehicle Detection• Human Detection• Abnormal Sound Detection• Smart FrameNote: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss• Offline and IP Conflict• Disk Exception• Login Exception• Fan ExceptionNote: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording• White Light Alarm• Buzzer• Log• Audible AlarmNote: The alarm function requires the use of a camera. |
| GENERAL | |
|---|---|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder• Mouse• Installation Guide• Power Cord• HDD Power Cables• HDD Data Cables• Terminal Blocks• Mounting Brackets• Screws• Rubber Feet |
| Working Temperature | NVR: -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm) |
| Net Weight | 4.0 Kg# |
| Gross Weight | 5.0 Kg# |
| Power Supply | 100-240 VAC, 50 to 60Hz, 1.5A |
| Power Consumption | • 5.5 W (Without Disk)• 45 W (With Disk) |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
