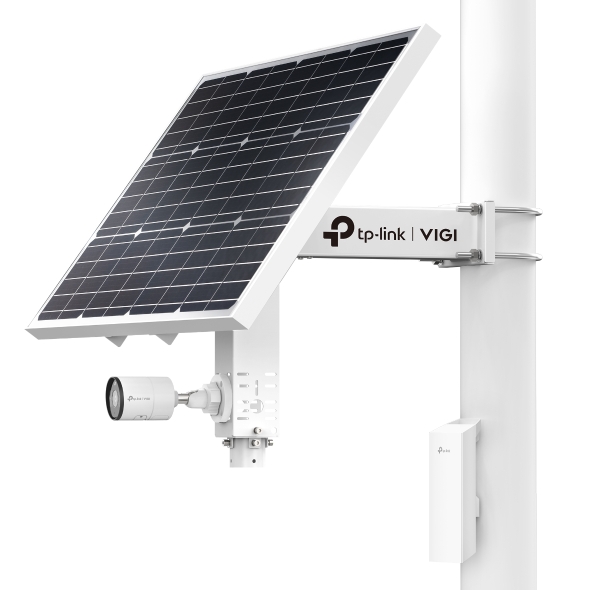

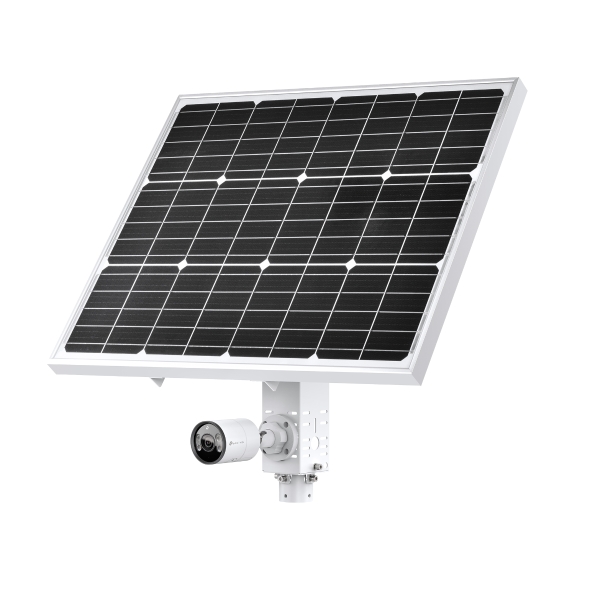

tp-link VIGI SP6020 Intelligent Solar Power Supply System 60W / 20.8Ah/10.8V Lithium Battery
- 60W Photovoltaic Panel and 20.8Ah/10.8V Lithium Battery
- 3× DC Voltage Output Ports
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
$1,199.00 inc GST +3 Year Warranty & Support

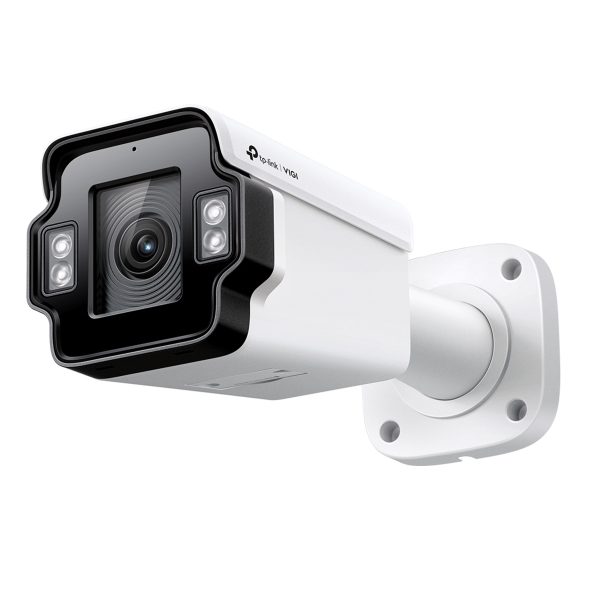

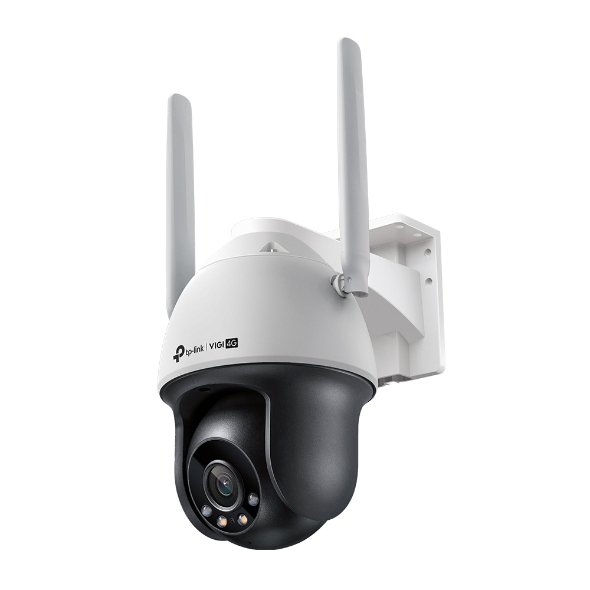

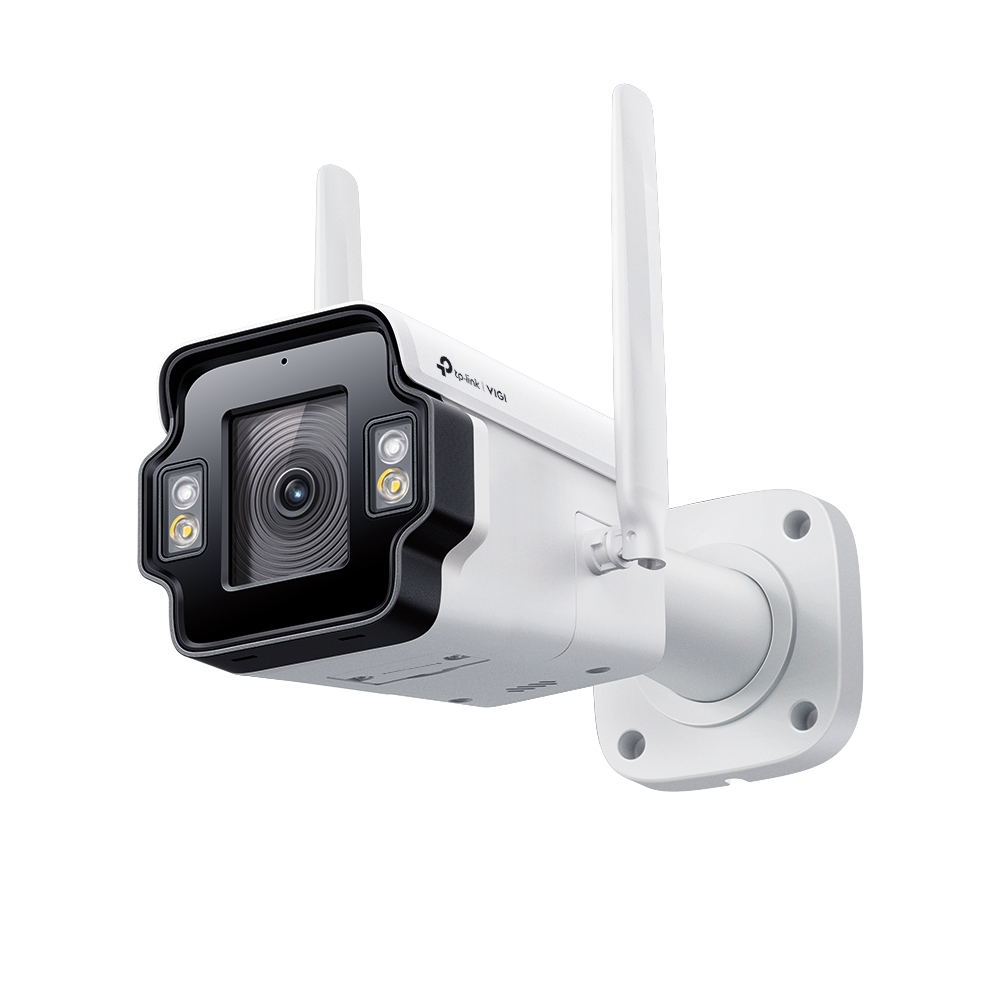

Recommended Camera Models
Highlights
- Working Hours on Consecutive Rainy Days: 4.3 Days
- On-load Charge on Sunny Days: 1.8 Days
-
†The data is based on TP-Link laboratory and public meteorological data obtained through model simulation. It only serves as a reference for network selection. Actual data may vary due to regional disparities, seasonal climate conditions, equipment power consumption, solar panel installation angles, and other factors. For accurate information, please refer to real-world applications and conditions.
‡On-load charge days is the time it takes for the battery to charge from 0% to 100% under load.
Remote Management
Control devices centrally, monitor power statistics, get low-battery alerts, update firmware, and reboot
the system via the mobile app. Enjoy peace of mind, no matter your location.
Intelligent Auxiliary Heating Technology
The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.
| SOLAR PANEL (PHOTOVOLTAIC PANEL) | |
|---|---|
| Power | 60 W |
| Voltage | 18 V |
| Dimensions (L x W x H) | 690×516×30 mm (27.2×20.3×1.2 in) |
| BATTERY | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 20.8 Ah |
| Voltage | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles |
| Dimension | 242×70×55 mm (9.5×2.8×2.2 in) |
| Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |

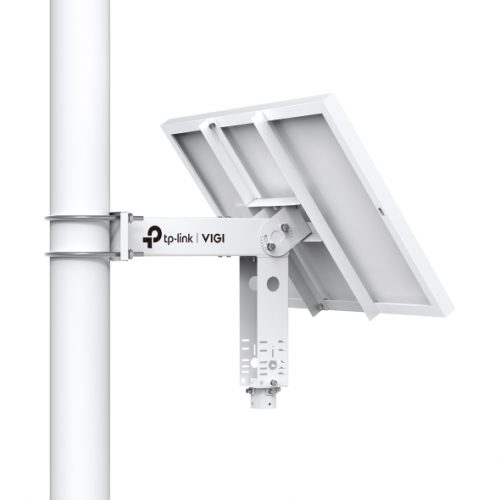

| ANGLE ADJUSTMENT (MANUAL) | |
|---|---|
| Range | 5°/15°/25°/35°/45°/55° |
| HARDWARE | |
|---|---|
| Interface | • 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Yes |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Smart Charging Control | -30°C~5°C |
| Account Management | Yes |
| Web Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 |
| Package Contents | • VIGI SP6020 • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Box Dimensions (W X D X H) | 800×615×225 mm (31.5×24.2×8.9 in) |
| Weight | • Product Weight: 13 kg • Package Weight: 14.5 kg |
| Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
