-5%
, ,

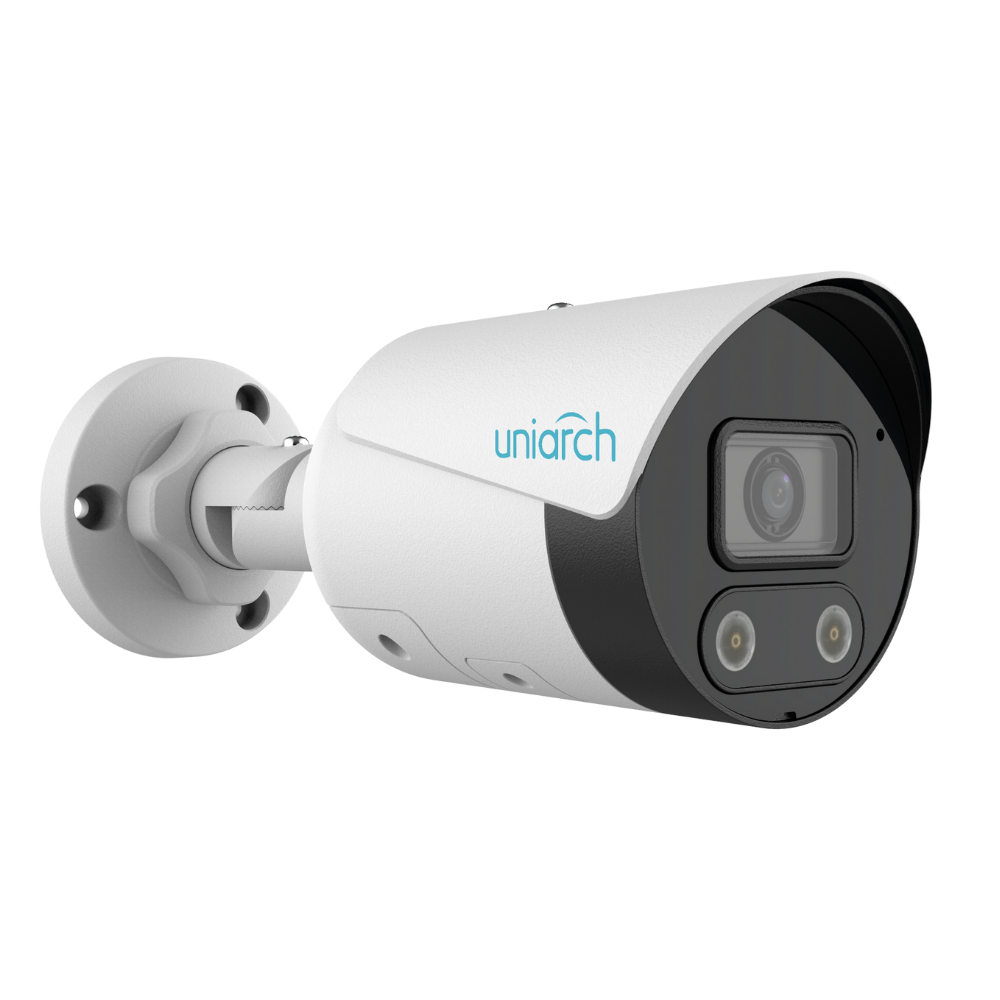

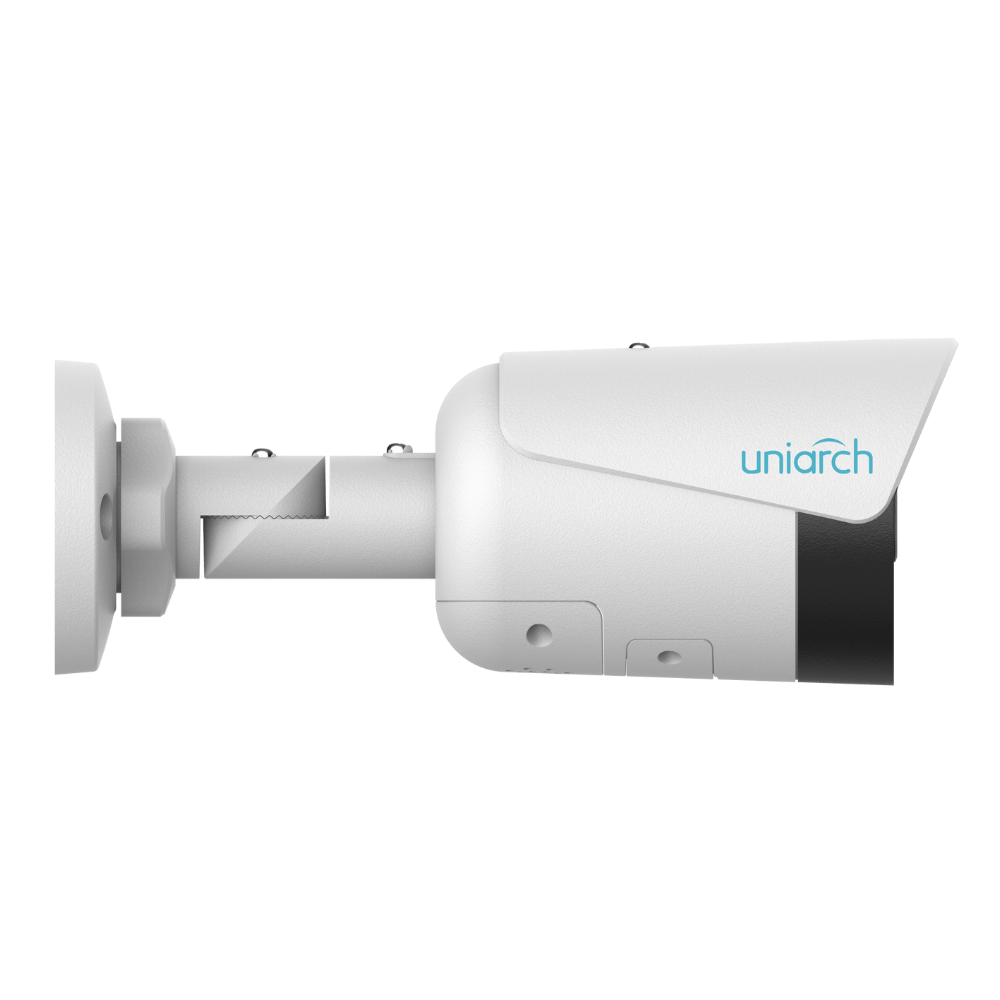

Uniarch powered by Uniview Tri-guard IPC-B1P8-AF28KC 8MP 4K Bullet Network Camera w/ Ai Filtering & LIGHT & SPEAKER

Uniarch Tri-guard 8MP Bullet, Min. illumination 0.01lux, Smart intrusion prevention, powered by ColorHunter technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic& Speaker, IP67











NOTE THIS CAMERA HAS 3 NIGHT MODES:
1. Black and white at night using Infrared
2. Colour at night with the help of an on board LED
3. Black and White and then Colour when a Human is triggered (Dual mode)

Uniarch_IPC-B1P8-AF28KC_8MP_HD_Intelligent_Light_and_Audible_Warning_Fixed__Bullet_Network_Camera

Uniarch-IPC-Network_Eyeball_Cameras_Quick_Guide-V2.01

Uniarch_Network_Camera_User_Manual-V1.00

$263.00 $277.00 inc GST +3 Year Warranty & Support

High quality image with 8MP, 1/2.8”CMOS sensor
> 8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
> Ultra 265, H.265, H.264, MJPEG
> Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
> Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
> Supports sound and light alarm linkage. When Smart intrusion prevention is triggered, the camera links sound alarm and light linkage.
> 120dB true WDR technology enables clear image in strong light scene
> Support 9:16 Corridor Mode
> Built-in Mic and Speaker
> Smart IR, up to 30m (98ft) IR distance
> Supports 256 G Micro SD card
> IP67 protection



Specifications
IPC-B1P8-AF28KC
Camera
Sensor 1/2.7″, 8.0 Ā  megapixel, progressive scan, CMOS
Minimum Ā  Illumination Colour: 0.01Lux Ā  (F2.0, AGC ON)

0Lux with IR on
Day/Night IR-cut filter with Ā  auto switch (ICR)
Shutter Auto/Manual, 1 ~ Ā  1/100000s
Adjustment angle Pan: 0Ā° ~ 360Ā° Tilt: 0Ā° ~ 90Ā° Rotate: 0Ā° ~ 360Ā°
WDR 120dB
S/N >56dB
Lens
Lens 2.8mm@F2.0
Angle of View Ā  (H) 112.4Ā°
Angle of View Ā  (V) 60.1Ā°
Angle of View Ā  (O) 146.1Ā°
DORI
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 84.0 33.6 16.8 8.4
Illuminator
IR Range Up to 30m (98ft) Ā  IR range
Wavelength 850nm
IR On/Off Ā  Control Auto/Manual
Video
Video Ā  Compression Ultra 265,H.265, Ā  H.264, MJPEG
H.264 code Ā  profile Baseline Ā  profile, Main Profile
Frame Rate Main Stream: 8MP Ā  (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max Ā  30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 1080P Ā  (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; Ā  640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;

Third Stream: D1 Ā  (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF Ā  (352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Ā  Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, Ā  brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise Ā  reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180Ā°/90Ā°Clockwise/90Ā°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Defog Digital Defog
Intelligent
Smart intrusion Prevention Support false alarm Ā  filtering: Line crossing detection, Intrusion detection, Region entrance Ā  detection, Region exit detection
Events
Basic Detection Motion detection, Ā  tampering alarm, audio detection
General Function Watermark, IP Ā  address filtering, tampering alarm, access policy, ARP protection, RTSP Ā  authentication, user authentication
Audio
Audio Ā  Compression G.711
Audio Bitrate 64 Kbps
Two-way Audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to Ā  256 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, Ā  ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, Ā  HTTPS, SMTP, 802.1x, SNMP, QoS ,RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Ā  Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 Ā  user levels: administrator and common user
Security Password Ā  protection, Strong password, HTTPS encryption, Export operation logs, Basic Ā  and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, Ā  WSSE and digest authentication for ONVIF
Web Browser Plug-in required Ā  live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live Ā  view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Supported
Built-in Speaker Supported
WIFI N/A
Network 1 RJ45 10M/100M Ā  Base-TX Ethernet
Video Output N/A
Alarm Light Supported
General
Power DC 12VĀ±25%, PoE (IEEE802.3 Ā  af)
Power Ā  consumption: Max 10.5 W
Power Interface Ƙ 5.5mm coaxial Ā  power plug
Dimensions (L x Ā  W x H) 191Ɨ 72 Ɨ 74mm Ā  (7.5ā€ Ɨ 2.8ā€ Ɨ 2.9ā€)
Weight 0.41kg (0.90lb)
Material Metal
Working Ā  Environment -30Ā°C ~ 60Ā°C (-22Ā°F Ā  ~ 140Ā°F), Humidity: ā‰¤95% RH (non-condensing)
Storage Ā  Environment -30Ā°C ~ 60Ā°C (-22Ā°F Ā  ~ 140Ā°F), Humidity: ā‰¤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Supported
Protection Ingression Ā  protection: IP67
SKU: IPC-B1P8-AF28KC Categories: , ,
