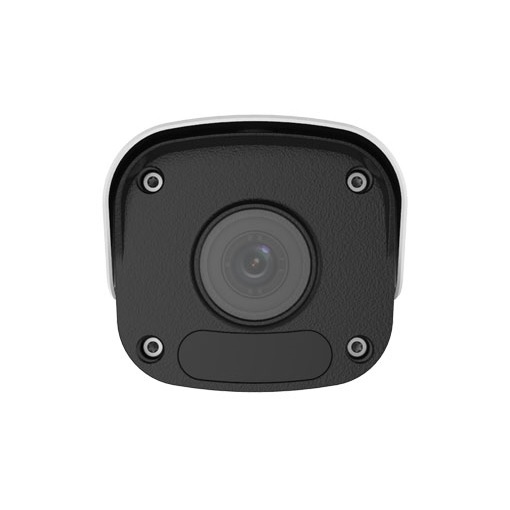

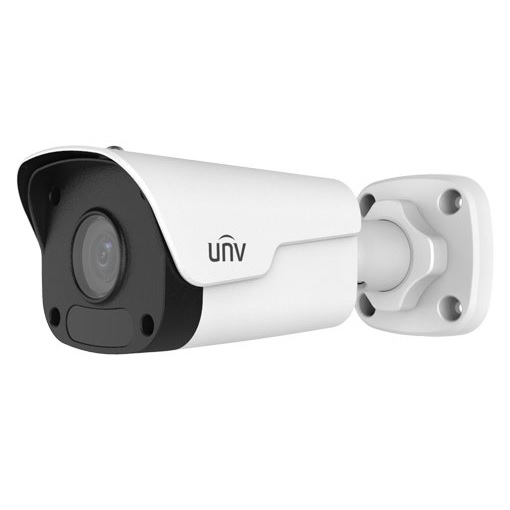

The Uniview 5MP Mini Fixed Bullet Network Camera (model IPC2125LR3-PF40M-D) offers high-resolution surveillance with its 5.0-megapixel progressive scan CMOS sensor, delivering clear images at a maximum resolution of 2592×1944 pixels. It features a 4.0mm fixed lens with an F2.0 aperture, providing a wide field of view with horizontal, vertical, and overall angles of 79.7°, 51.8°, and 98.0°, respectively. Equipped with Smart IR technology, the camera ensures effective illumination up to 30 meters (98 feet) in low-light conditions, complemented by an optical glass window that enhances light transmittance and an IR anti-reflection window to maximize infrared efficiency.
Designed for durability, the IPC2125LR3-PF40M-D operates within a wide temperature range of -30°C to 60°C (-22°F to 140°F) and boasts an IP67 rating, making it suitable for various weather conditions. Its 3-axis adjustment mechanism allows for flexible installation, offering pan, tilt, and rotate adjustments to suit diverse surveillance needs. The camera supports multiple video compression formats, including Ultra 265, H.265, H.264, and MJPEG, facilitating efficient storage and bandwidth management. Additionally, its compliance with ONVIF standards ensures compatibility with a broad range of network video recorders and video management systems.
Technical Specifications:
| Camera |
| Sensor |
1/2.7″, 5.0 megapixel, progressive scan, CMOS |
| Lens |
4.0mm@F2.0 |
| DORI Distance |
| Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 4.0 |
60 |
24 |
12 |
6 |
| 6.0 |
90 |
36 |
18 |
9 |
|
| Angle of View (H) |
79.7° |
| Angle of View (V) |
51.8° |
| Angle of View (O) |
98.0° |
| Adjustment angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.01Lux (F2.0, AGC ON), 0Lux with IR on |
| Digital noise reduction |
2D/3D DNR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| S/N |
>52dB |
| IR Range |
Up to 30m (98ft) IR range |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile |
| Frame Rate |
Main Stream: 5MP (2592*1944), Max 20fps; Sub Stream: 720P (1280×720), Max 20fps |
| HLC |
Supported |
| BLC |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 2 areas |
| Motion Detection |
Up to 4 areas |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile T), API |
| Interface |
| Network |
10/100M Base-TX Ethernet |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4W |
| Dimensions (L × W × H) |
167.3 × 62.9 × 62.7mm (6.6” × 2.5” × 2.5”) |
| Weight |
0.37kg (0.81lb) |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection |
IP67 |
| Reset Button |
Supported |
