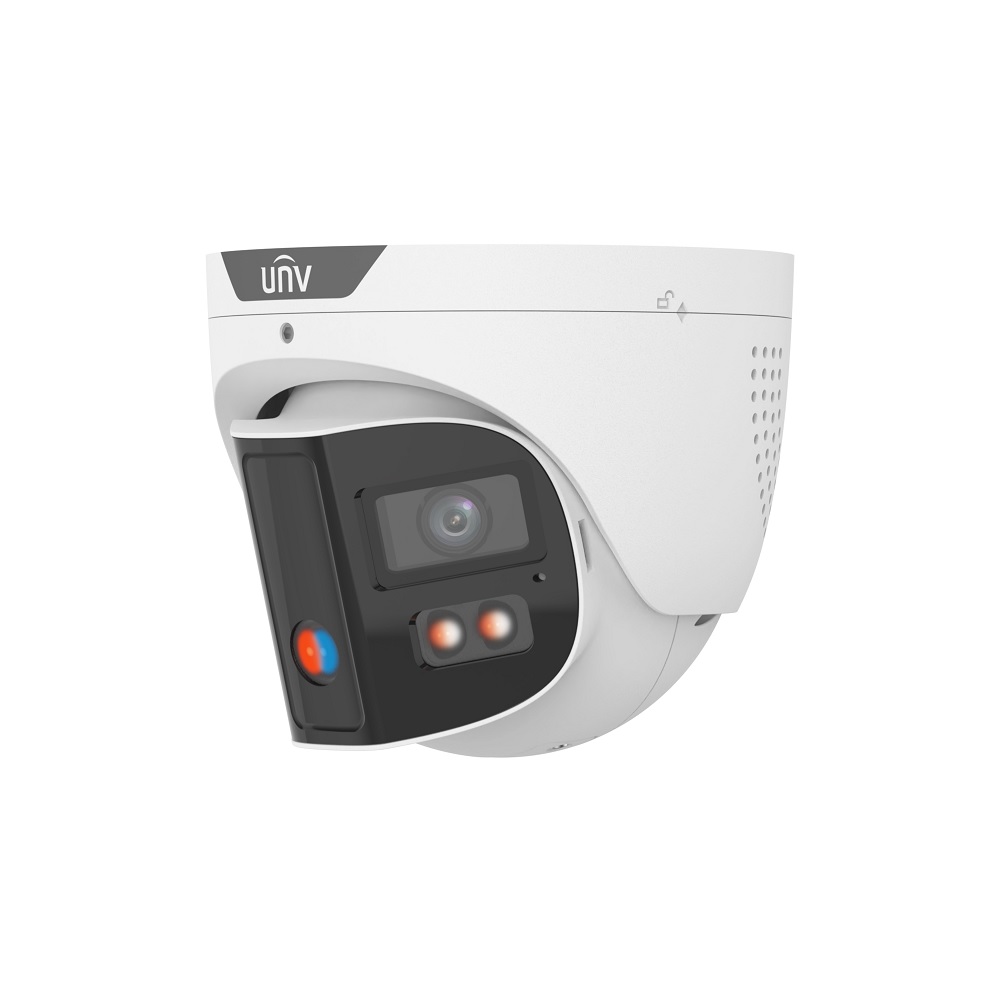

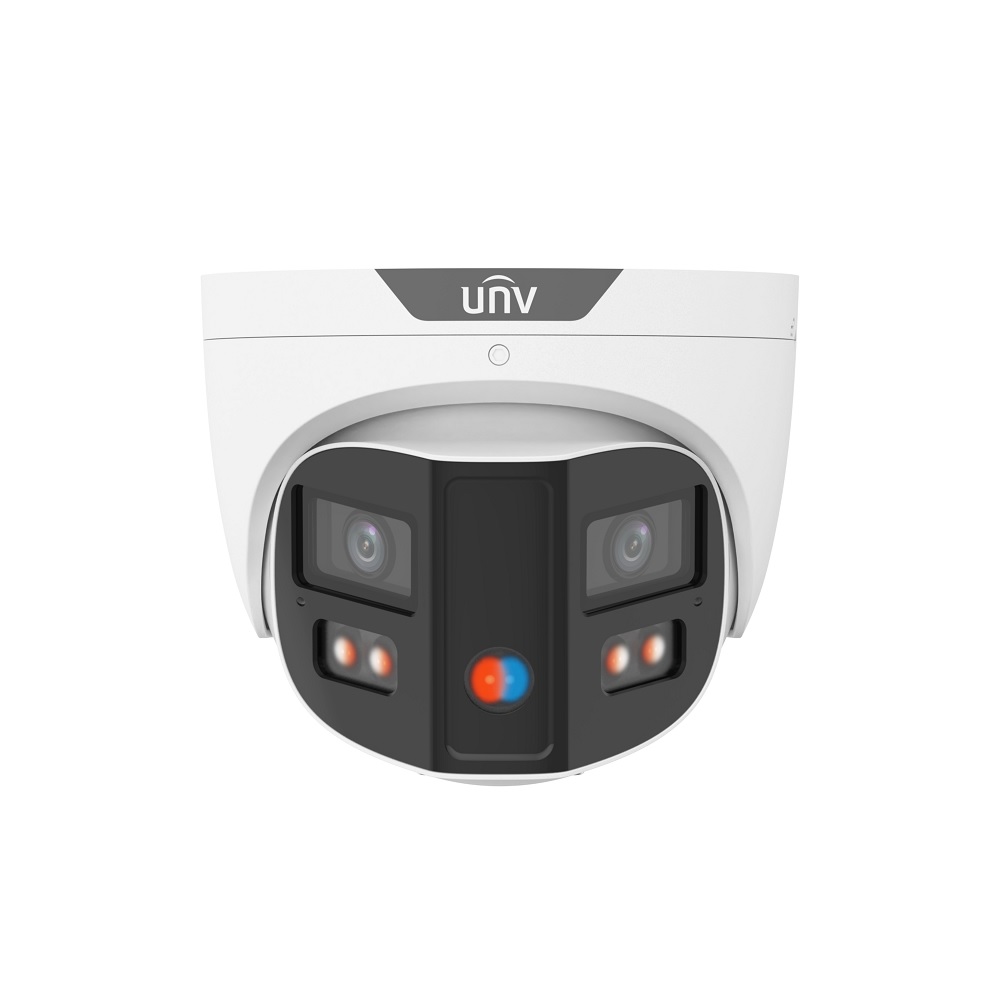

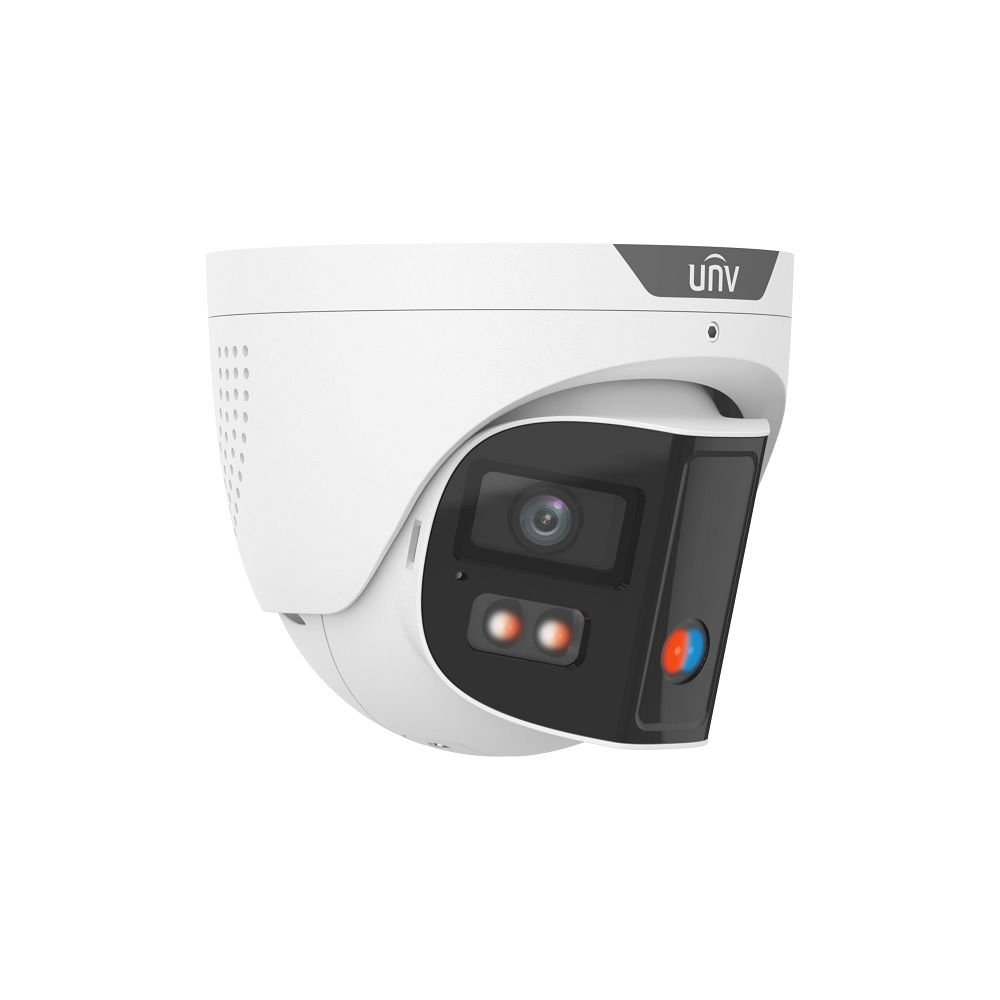

Uniview IPC3K28SE-ADF28KMC-DL-I0 8MP Double-Light Alarm Binocular Eyeball Camera, PoE

The Uniview IPC3K28SE-ADF28KMC-DL-I0 is an 8-megapixel dual-lens network camera that delivers high-quality 4096×1860 resolution video at 20 frames per second. Its dual-lens splicing technology provides a seamless 180° horizontal field of view, ideal for wide-area surveillance. Equipped with ColorHunter technology, it ensures vibrant, full-color images even in low-light conditions. The camera features integrated red and blue warning lights for active deterrence, 130dB true Wide Dynamic Range (WDR) for clear imaging in high-contrast scenes, and smart intrusion prevention that accurately distinguishes between humans, motor vehicles, and non-motor vehicles to reduce false alarms. Additional capabilities include people flow counting, crowd density monitoring, built-in dual microphones and speaker for two-way audio, and support for up to a 512GB micro SD card for local storage.

Key Features:

High quality image with 8MP, 1/2.5″ CMOS sensor
8MP (4096×1860) @ 20fps
The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°
ColorHunter technology ensures 24-hour full-color images
Supports red & blue warning light
130dB true WDR technology enables clear image in strong light scenes
Based on target classification, smart intrusion prevention significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, motor vehicles, and non-motor vehicles
Intelligent People Flow Counting and Crowd Density Monitoring
Smart intrusion prevention with color retrieval
Auto Scene Match (ASM) (Only WDR)
Alarm: 1 in / 1 out and Audio: 1 in / 1 out
Built-in speaker and dual mics
Supports 512 GB micro SD card

$334.80 inc GST +3 Year Warranty & Support

Description

The Uniview IPC3K28SE-ADF28KMC-DL-I0 is an 8-megapixel binocular eyeball network camera that utilizes dual-lens splicing technology to deliver a seamless 180-degree horizontal field of view. Equipped with a 1/2.5″ CMOS sensor, it captures high-quality images at a resolution of 4096×1860 pixels at 20 frames per second. The camera features ColorHunter technology, ensuring full-color images around the clock, even in low-light conditions. Additionally, it includes red and blue warning lights for active deterrence and employs 130dB true Wide Dynamic Range (WDR) technology to produce clear images in high-contrast lighting environments.

Beyond its imaging capabilities, the IPC3K28SE-ADF28KMC-DL-I0 offers advanced intelligent features such as smart intrusion prevention, which accurately distinguishes between humans, motor vehicles, and non-motor vehicles, thereby reducing false alarms caused by environmental factors like leaves or lights. It also supports intelligent people flow counting and crowd density monitoring, making it suitable for public spaces and retail environments. The camera is equipped with built-in dual microphones and a speaker, facilitating two-way audio communication, and supports up to a 512 GB micro SD card for local storage.

Technical Specifications:

Camera
Max Resolution	8 MP
Sensor	1/2.5″ CMOS
Min. Illumination	Colour: 0.0005 lux ( F1.0, AGC ON) 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N	>52 dB
WDR	130 dB
Lens
Focal Length	2.8 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	180°
Field of View (V)	65°
Field of View (D)	180°
Lens Type	Fixed
DORI
DORI Distance (Lens)	2.8mm
DORI Distance (Detect)	63.1m(206.7ft)
DORI Distance (Observe)	25.2m(82.7ft)
DORI Distance (Recognize)	12.6m(41.3ft)
DORI Distance (Identify)	6.3m(20.7ft)
Illuminator
Supplemental Light	Dual light
Illumination Distance (IR)	30 m (98.4 ft)
Illumination Distance (Warm Light)	30 m (98.4 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Light On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8MP (40961860), Max 20fps; Sub Stream: 2048936, Max 20fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Dual Streams
Auto Scene Match (ASM)	Support (Only WDR)
White Balance	Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	N/A
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Image Stabilization	N/A
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis	N/A
Attribute Collection	SIP with color retrieval
Events
Basic Detection	Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General Function	Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	UNV-Link, UNV-Link Pro, EZStation
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Serial Port	N/A
Built-in Mic	Built-in two mics
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption	Max 12.6W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø128.7 x 109.9mm (Ø5.1”x 4.3”) (Ø x H)
Weight	0.86kg (1.9lb)
Material	Metal
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
