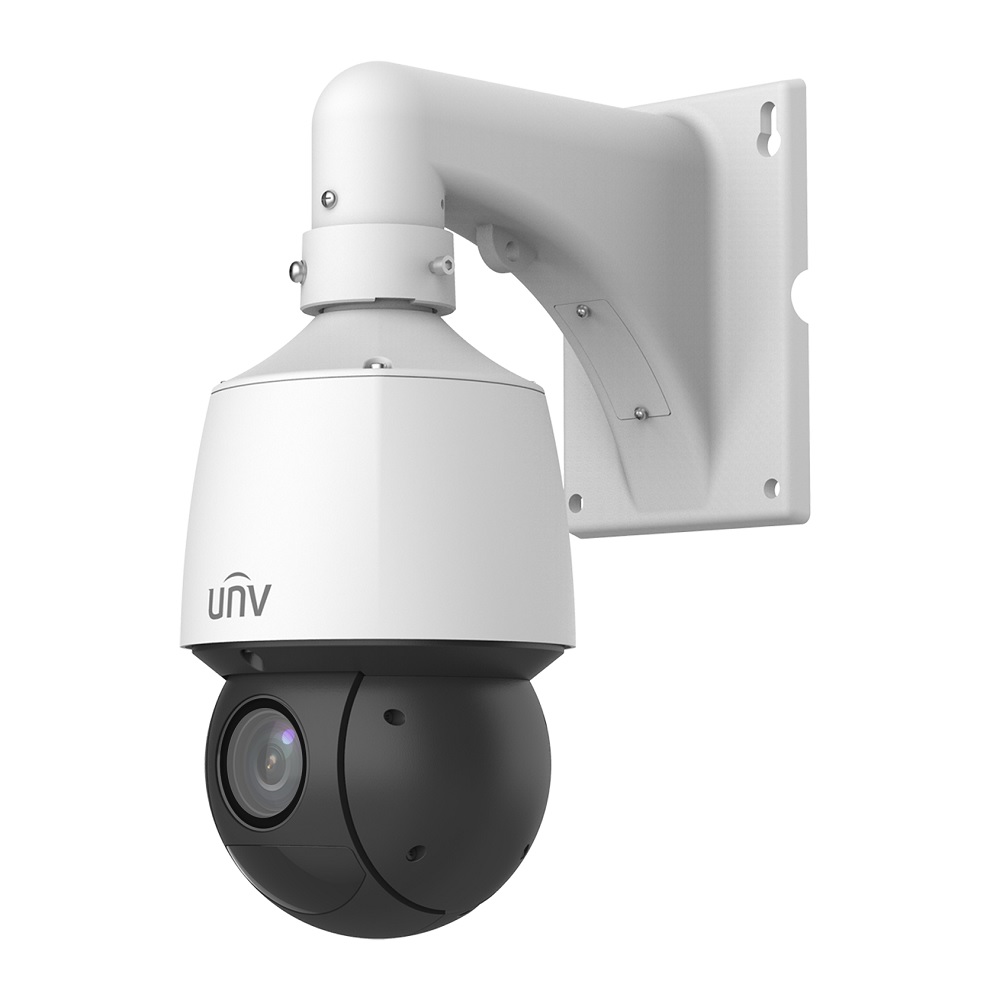

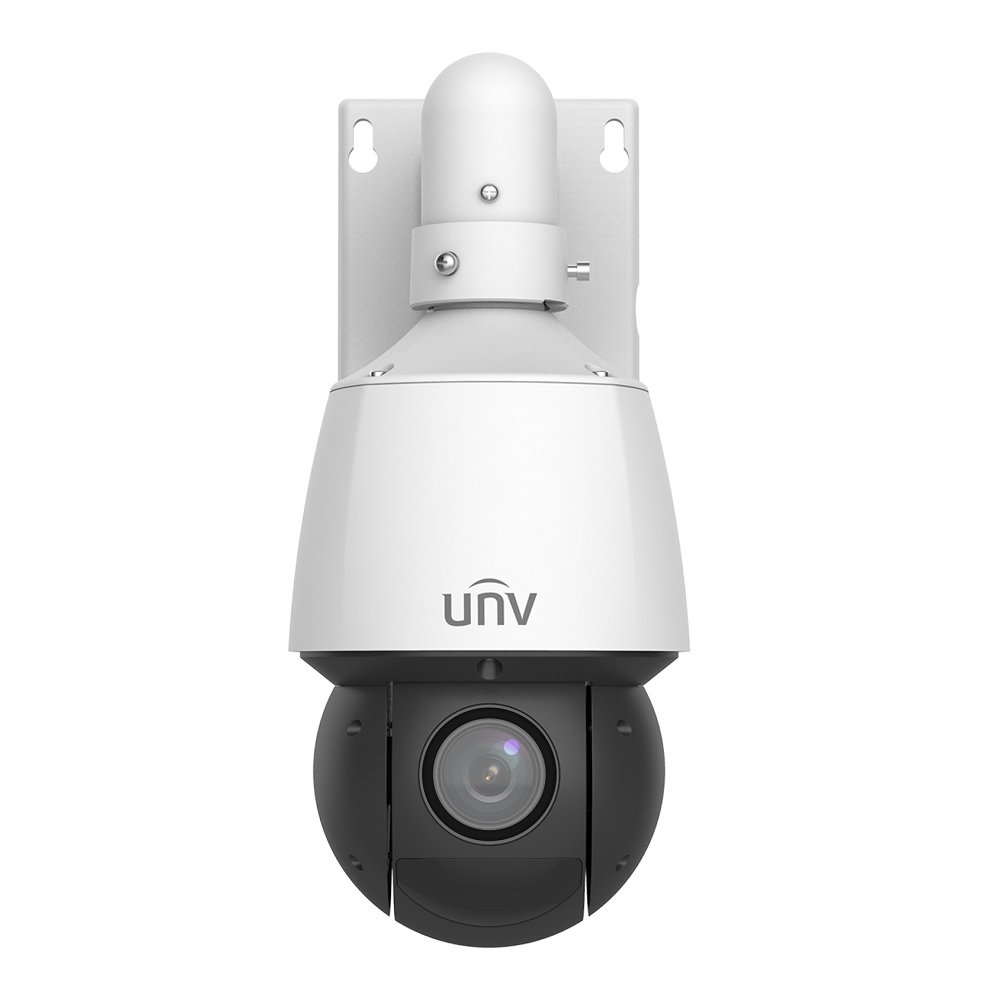

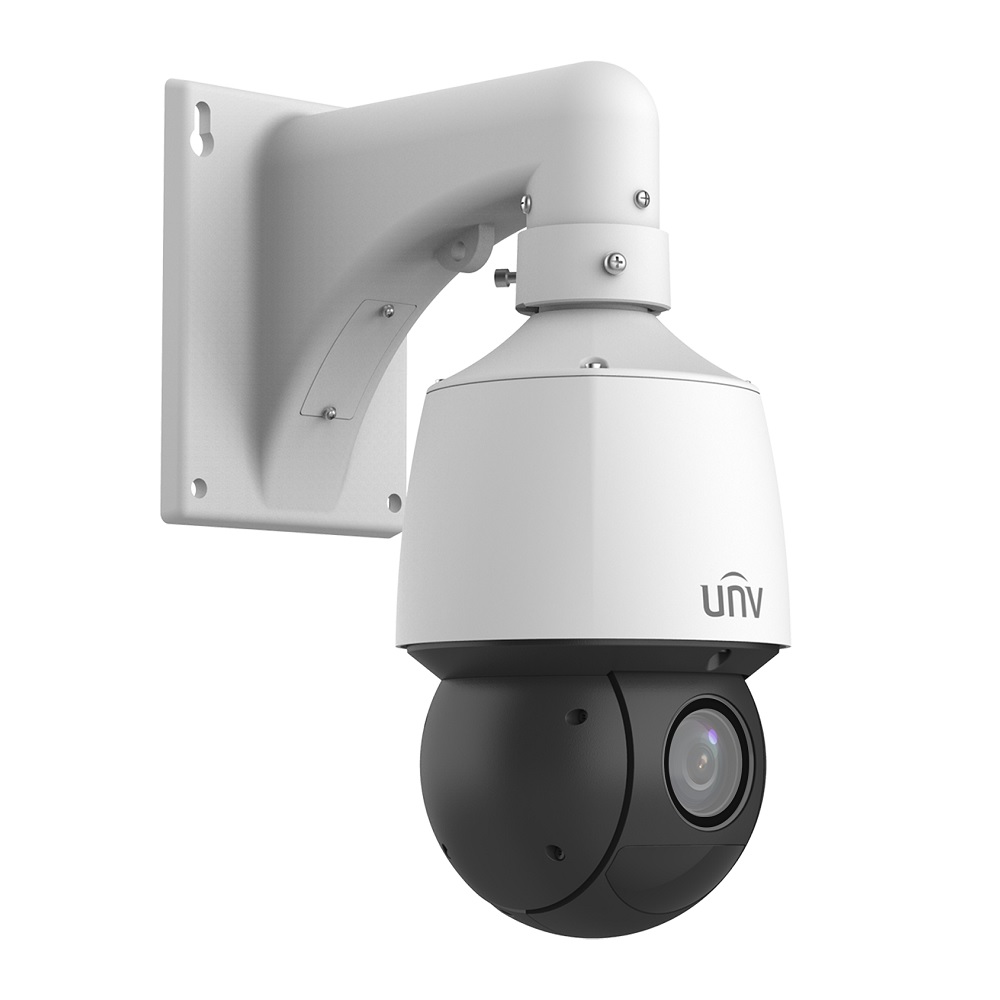

Uniview IPC6424SR-X25-VF-B 4MP 25x PTZ LightHunter Camera, IR100m, Motorised Zoom, IK10, PoE

The Uniview IPC6424SR-X25-VF-B is a 4MP PTZ dome camera equipped with a 1/2.8″ CMOS sensor, delivering high-resolution images at 2688×1520 pixels and 30fps. Its 25x optical zoom lens provides detailed surveillance over expansive areas, while LightHunter technology ensures exceptional image quality in low-light conditions. The camera features Smart IR with a range of up to 100 meters (328 feet), enhancing night vision capabilities. It supports Ultra 265, H.265, H.264, and MJPEG compression formats for efficient bandwidth and storage usage. With IP67-rated weatherproofing and IK10 vandal resistance, the IPC6424SR-X25-VF-B is designed for reliable outdoor use.

Key Features:

High quality image with 4MP, 1/2.8’’ CMOS sensor
2688×1520@30fps in the main stream
Ultra 265, H.265, H.264, MJPEG
25X Optical Zoom
Smart intrusion prevention with false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area detection
People Counting with support for people flow counting and crowd density monitoring, suitable for various statistical scenarios
Lighthunter technology ensures ultra-high image quality in low illumination environments
Smart IR, up to 100m (328ft) IR distance
DC 12V±25% or PoE+ (IEEE 802.3at)
Alarm: 2 inputs and 1 output; Audio: 1 input and 1 output
IP67 ingress protection
IK10 vandal resistance

$692.01 inc GST +3 Year Warranty & Support

Description

The IPC6424SR-X25-VF-B is a high-performance 4MP PTZ dome camera from Uniview, designed to deliver exceptional surveillance capabilities in both well-lit and low-light environments. It features a 1/2.8″ progressive scan CMOS sensor that captures video at a resolution of 2688×1520 pixels at 30 frames per second, ensuring clear and detailed footage. Equipped with a 25x optical zoom and LightHunter technology, the camera provides enhanced visibility in low-light conditions, making it suitable for 24/7 monitoring. Its Smart IR technology extends night vision up to 100 meters (328 feet), while the motorized varifocal lens offers a horizontal field of view ranging from 52.2° to 2.74°.

Designed for versatile and reliable outdoor use, the IPC6424SR-X25-VF-B boasts an IP67 weatherproof rating, ensuring protection against dust and rain, and an IK10 vandal-resistant enclosure to withstand tampering and impacts. It offers flexible installation options with support for both DC 12V±25% and PoE+ (IEEE 802.3at) power sources. Additional features include two-way audio support, alarm inputs and outputs, and compliance with ONVIF profiles G, S, and T, ensuring compatibility with a wide range of surveillance devices.

Technical Specifications:

Camera
Sensor	1/2.8″ CMOS
Min. Illumination	Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120 dB
S/N	>56 dB
Lens
Focal Length	4.8 to 120 mm
Digital Zoom	16X
Optical Zoom	25X
Iris	F1.5 to F3.8
Field of View (H)	52.20°~2.74°
Field of View (V)	30.81°~1.54°
Field of View (D)	64.20°~3.23°
DORI
DORI Distance (Lens)	4.8~120(mm)
DORI Distance (Detect)	119.3m~2475.0m(391.2ft~8120.1ft)
DORI Distance (Observe)	47.7m~990.0m(156.5ft~3248.0ft)
DORI Distance (Recognize)	23.9m~495.0m(78.2ft~1624.0ft)
DORI Distance (Identify)	11.9m~247.5m(39.1ft~812.0ft)
Illuminator
Illumination Distance (IR)	100 m (328.1 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Video
Privacy Mask	24 areas, up to 4 areas per scene
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4MP(26881520),Max 30fps Sub Stream: 2MP (19201080), Max 30fps Third Stream: D1 (720*576), Max 30fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple Streams
OSD	Up to 10 OSDs
Intelligent
Exception Detection	Object Removed, Object Left Behind
People Counting	Support People Flow Counting and Crowd Density Monitoring
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Defog	Digital Defog
White Balance	Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip Vertical, Flip Horizontal, 180°
HLC	Support
BLC	Support
Heatwave Reduction	Support
Events
Basic Detection	Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
General Function	Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16KHZ
Storage
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
PTZ
Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15 s to 1800 s
Preset Image Freeze	Support
Home Position	Support
Interface
Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	2/1
Serial Port	1 * RS485
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	1 BNC (For debugging)
Certification
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
General
Power	DC12V(±25%,3A), PoE+(IEEE 802.3at)
Power Consumption	MAX 21W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø 162 x 295mm (Ø 6.4″ x 11.6″) (Ø x H)
Weight	3.05kg(6.72lb)
Working Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Video

SKU: IPC6424SR-X25-VF-B Categories: Uniarch by Uniview CCTV, Uniarch by Uniview UNV IP Cameras, Uniview CCTV Suppliers
