Uniview UNV 8MP 4K HD IR Fixed Eyeball Network Camera IPC3618LE-ADF28K-GM

• High quality image with 8MP, 1/2.7″CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

DORI Distance
Lens (mm) 2.8 Detect (m) 84 Observe (m) 33 Recognize (m) 16.8 Identify (m) 8.4

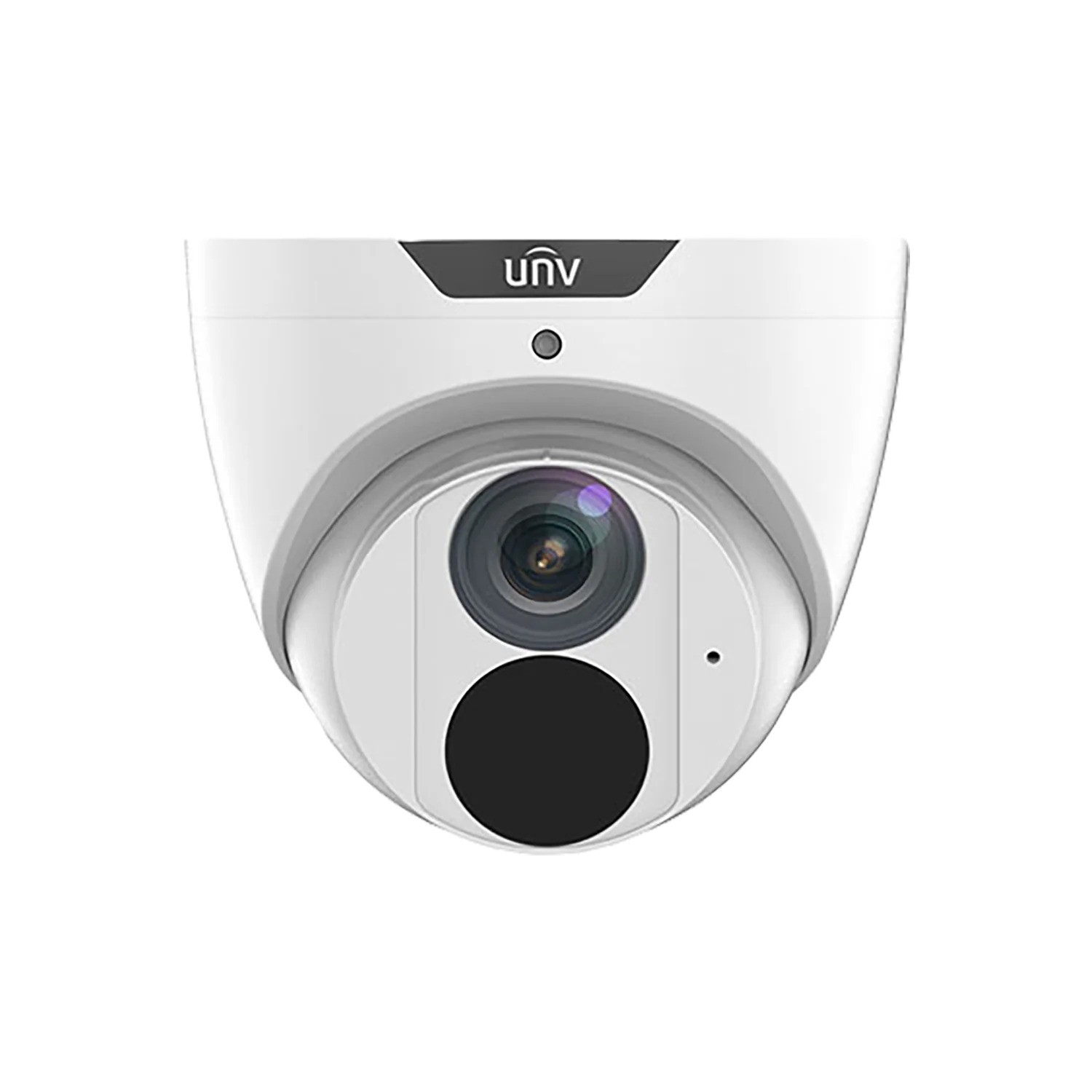

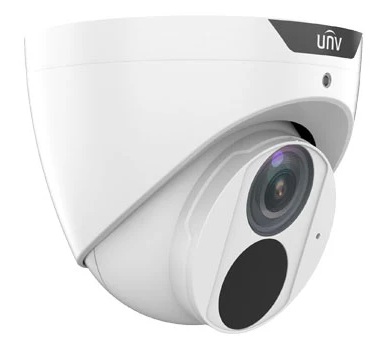

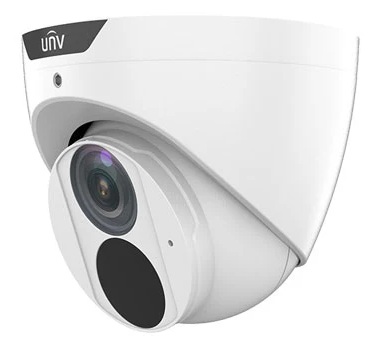

The Uniview IPC3618LE-ADF28K-GM is an 8-megapixel (8MP) turret-style network camera designed to deliver high-quality surveillance footage in various lighting conditions. Equipped with a 1/2.7″ CMOS sensor, it captures ultra-high-definition images with a maximum resolution of 3840×2160 pixels at 20 frames per second (fps).

Key Features:

• High-Quality Imaging: The 8MP resolution ensures detailed and sharp images, making it suitable for applications requiring precise image clarity.

• Easystar Technology: This feature enhances image quality in low-light environments, ensuring clear footage even under minimal illumination.

• Wide Dynamic Range (WDR): With a 120dB true WDR, the camera effectively balances light and dark areas in high-contrast scenes, preventing overexposure or underexposure.

• Infrared (IR) Illumination: The built-in Smart IR LEDs provide illumination up to 30 meters (98 feet), facilitating clear night vision without overexposing close objects.

• Built-in Microphone: The integrated microphone captures audio, adding an extra layer of information to the surveillance footage.

• Weatherproof Design: Rated IP67, the camera is protected against dust and water ingress, making it suitable for both indoor and outdoor installations.

• Flexible Compression Formats: Supports Ultra 265, H.265, H.264, and MJPEG compression formats, allowing for efficient storage management without compromising image quality.

• Corridor Mode: The 9:16 Corridor Mode is ideal for monitoring narrow vertical areas such as hallways or corridors, optimizing the field of view.

• Edge Storage: Comes with a microSD card slot supporting up to 256GB, enabling local storage of recordings.

• Power over Ethernet (PoE): Supports PoE power supply, simplifying installation by transmitting power and data over a single Ethernet cable.

Technical Specifications:

• Lens: Fixed 2.8mm lens offering a horizontal field of view of approximately 98.7°.

• Minimum Illumination: Color: 0.005 lux (F1.6, AGC ON); 0 lux with IR on.

• Video Frame Rate Options:

  • 8MP (3840×2160) at 20fps
  • 5MP (3072×1728) at 30/25fps
  • 4MP (2560×1440) at 30/25fps
  • 2MP (1920×1080) at 30/25fps

• Dimensions: Ø118 x 95mm (Ø4.6” x 3.8”)

• Weight: Approximately 0.32kg (0.71lb)

The Uniview IPC3618LE-ADF28K-GM is a versatile and robust surveillance solution suitable for various applications, including retail stores, office buildings, and residential areas. Its advanced imaging technologies and durable design ensure reliable performance in diverse environmental conditions.
