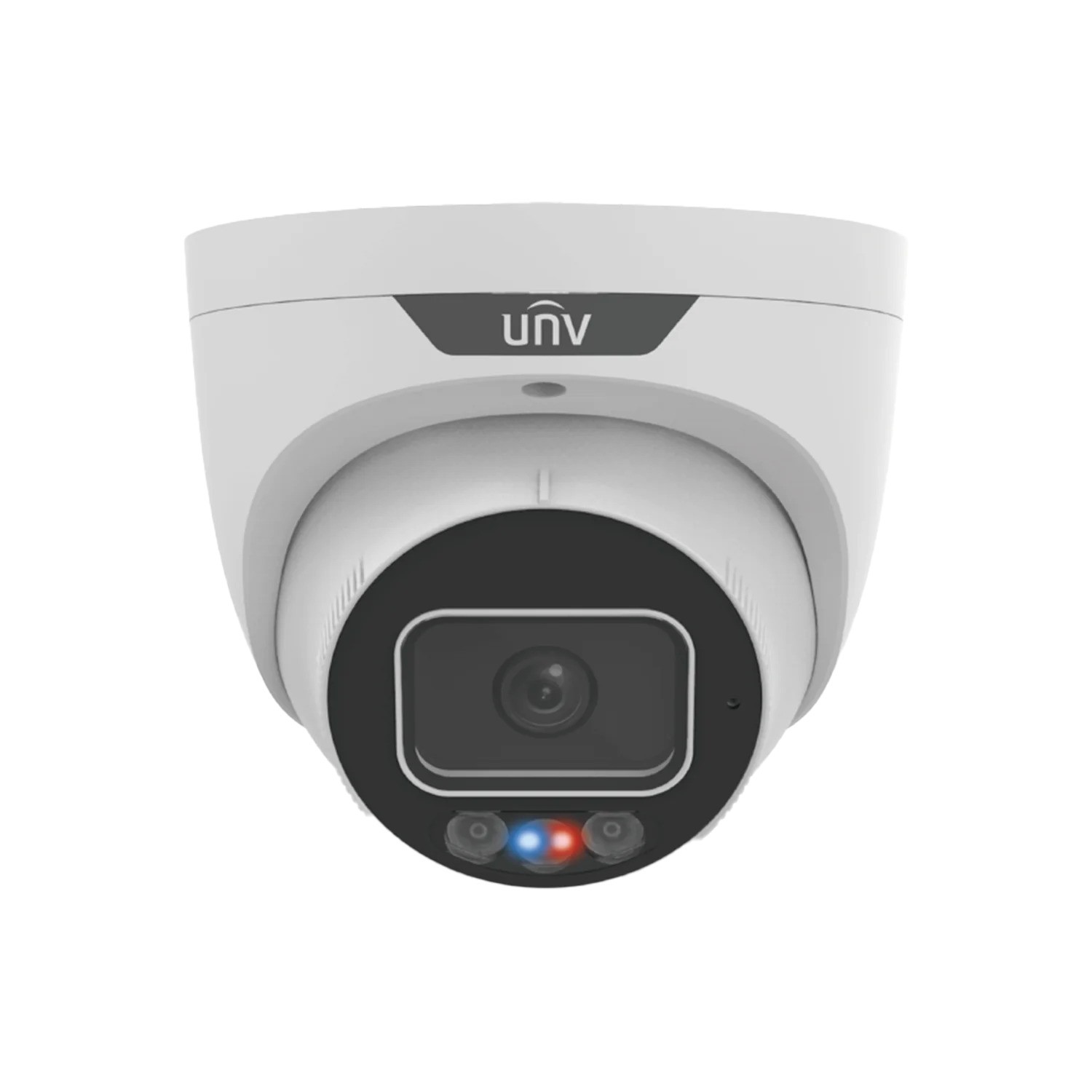

Uniview UNV 8MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera IPC3638SS-ADF28KMC-I1

• High quality image with 8MP, 1/2.8″ CMOS sensor
• 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Auto Scene Match (ASM)（Only WDR）
• 130dB true WDR technology enables clear image in strong light scene
• Support red & blue warning light
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
• Smart IR, up to 30m (98.4 ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

DORI Distance
Lens (mm) 2.8 Detect (m) 86.9 Observe (m) 34.8 Recognize (m) 17.4 Identify (m) 8.7



Product Description:

The Uniview IPC3638SS-ADF28KMC-I1 is an 8-megapixel (8MP) Tri-Guard Fixed Dual-Light Turret Network Camera. It is designed to provide comprehensive 24/7 surveillance through a combination of full-color low-light imaging, intelligent analytics, and active deterrence features.

---

Key Features:

• 8MP High-Resolution Imaging:
  Equipped with a 1/2.8″ CMOS sensor, the camera captures high-definition images up to 3840×2160 resolution at 30fps. It also supports 5MP, 4MP, and 2MP resolutions, maintaining smooth frame rates.

• Tri-Guard Technology:
  Integrates smart intrusion prevention, full-color imaging in low-light environments, and active deterrence (visual and audio alarms) to improve both detection and response.

• Smart Intrusion Prevention (SIP):
  Supports cross line detection, intrusion detection, region entrance and exit alerts. Uses deep learning-based algorithms to distinguish between humans, motor vehicles, and non-motor vehicles to reduce false alarms.

• Active Deterrence:
  Red and blue flashing lights combined with a built-in speaker can issue warnings or pre-recorded voice messages to deter unwanted activity.

• Full-Color Night Vision:
  With an F1.0 super aperture lens and supplemental warm white LED lighting, the camera provides full-color video even in ultra-low light (as low as 0.001 lux).

• 130dB True Wide Dynamic Range (WDR):
  Enhances image clarity in scenes with high contrast lighting, such as building entrances or windowed areas.

• People Counting & Crowd Monitoring:
  Supports people flow counting and crowd density analytics for enhanced situational awareness in public or commercial settings.

• Two-Way Audio:
  Includes a built-in microphone and speaker for real-time communication, with 1 audio input and 1 output port for external devices.

• Edge Storage:
  Supports Micro SD cards up to 512GB for local recording, ensuring redundancy during network outages.

• Rugged Design:
  The camera is IP67-rated for weather resistance and IK10-rated for vandal protection, making it suitable for both indoor and outdoor environments.

---

Specifications:

• Image Sensor: 1/2.8″ 8MP progressive scan CMOS

• Lens: 2.8mm fixed lens, F1.0 aperture

• Field of View: Horizontal: 106.5°, Vertical: 57.9°, Diagonal: 132°

• Minimum Illumination: 0.001 Lux (F1.0, AGC ON); 0 Lux with IR or warm light

• IR / Warm Light Range: Up to 30 meters

• WDR: 130dB True WDR

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• Max Frame Rate: 30fps at 8MP resolution

• Audio Compression: G.711U, G.711A

• Audio I/O: 1 input, 1 output; built-in mic and speaker

• Network Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH

• Storage: MicroSD slot (supports up to 512GB)

• Power Supply: 12V DC ±25% or PoE (IEEE 802.3af)

• Power Consumption: Max 10W

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)

• Humidity: ≤95% RH (non-condensing)

• Weatherproof Rating: IP67

• Vandal Resistance: IK10

• Dimensions: Ø129 x 118 mm

• Weight: Approx. 690g
