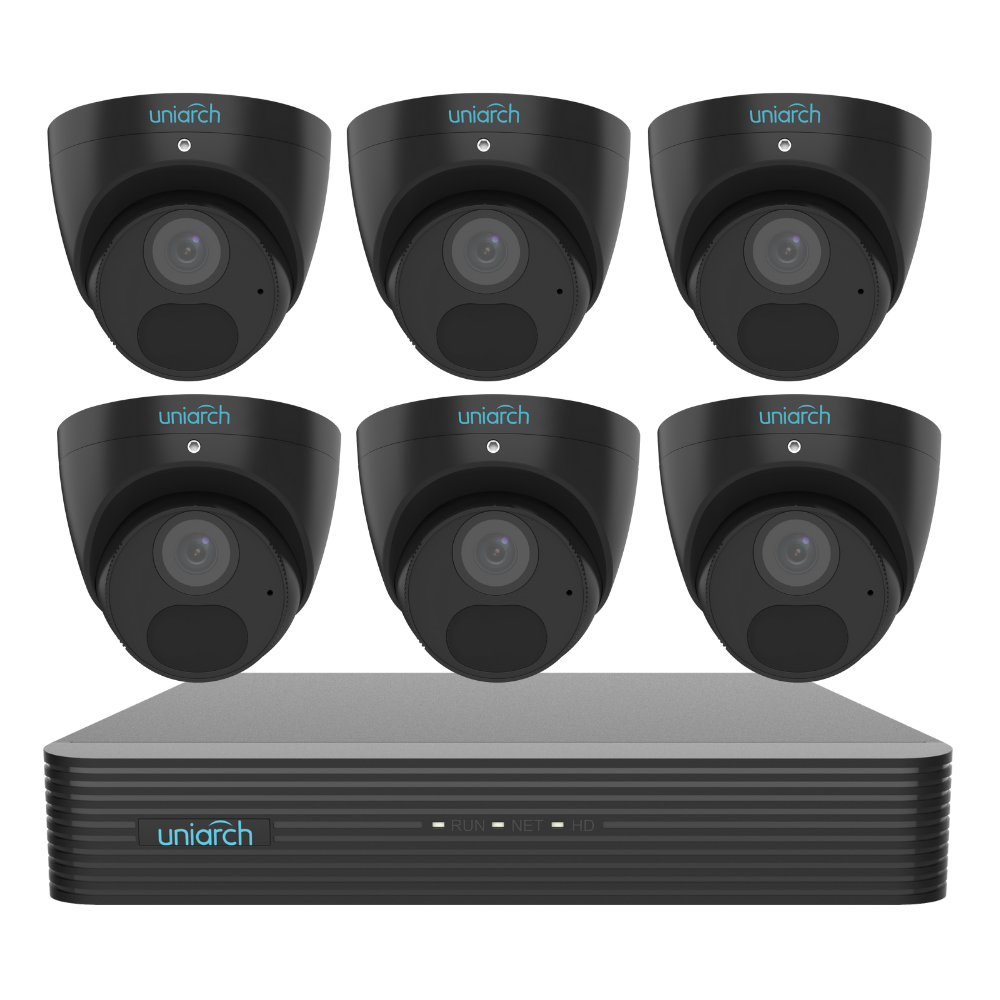

Uniarch powered by Uniview 6MP Starlight 6 x BLACK Fixed Turret Network Camera 8CH KIT
Uniarch 6MP Starlight 4ch Kit includes: 6 x BLACK IPC-T1E6-AF28K (6MP), 1 x PRO 8CH NVR NVR-108X-P8 No HDD
Uniarch_IPC-T1E4-AF28K_4MP_HD_Fixed_Turret_Network_Camera_Datasheet
$853.00 inc GST +3 Year Warranty & Support
> High quality image with 6MP, 1/2.7”CMOS sensor
> 6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
> 2MP(1920*1080)@30/25fps
> Ultra 265, H.265, H.264, MJPEG
> Easystar technology ensures high image quality in low illumination environment
> 120dB true WDR technology enables clear image in strong light scene
> Support 9:16 Corridor Mode
> Built-in Mic
> Smart IR, up to 30m (98ft) IR distance
> Supports 256 G Micro SD card
> IP67 protection
> Support PoE power supply
> 3-Axis
> 6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
> 2MP(1920*1080)@30/25fps
> Ultra 265, H.265, H.264, MJPEG
> Easystar technology ensures high image quality in low illumination environment
> 120dB true WDR technology enables clear image in strong light scene
> Support 9:16 Corridor Mode
> Built-in Mic
> Smart IR, up to 30m (98ft) IR distance
> Supports 256 G Micro SD card
> IP67 protection
> Support PoE power supply
> 3-Axis
Specifications
| IPC-T1E6-AF28K | ||||||
| Camera | ||||||
| Sensor | 1/2.7″, 6.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° | |||||
| S/N | >56dB | |||||
| WDR | 120dB | |||||
| Lens | ||||||
| Lens Type | 2.8mm @1.6, Fixed-focal | |||||
| Lens Mount | M12 | |||||
| Angle of View (H) | 112.9° | |||||
| Angle of View (V) | 59.1° | |||||
| Angle of View (O) | 121.2° | |||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||
| Illuminator | ||||||
| IR Range | Up to 30m (98 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 6MP (3072*2048), Max 20fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
|||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code | Supported | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Intrusion(based on human body detection) | |||||
| motion detection, tampering alarm, audio detection | ||||||
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS, | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | Uniarch Client
Uniarch APP |
|||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | ||||||
| Interface | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Built-in Mic | Supported | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 6.0W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L × W × H) | Φ111 x 95mm (Φ4.4” x 3.7”) | |||||
| Weight | 0.35kg (0.77lb) | |||||
| Material | Metal | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Reset Button | N/A | |||||
| Ingress Protection | Ingression protection: IP67 | |||||
