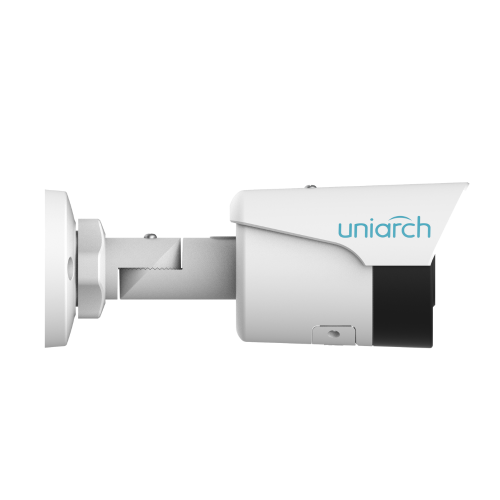

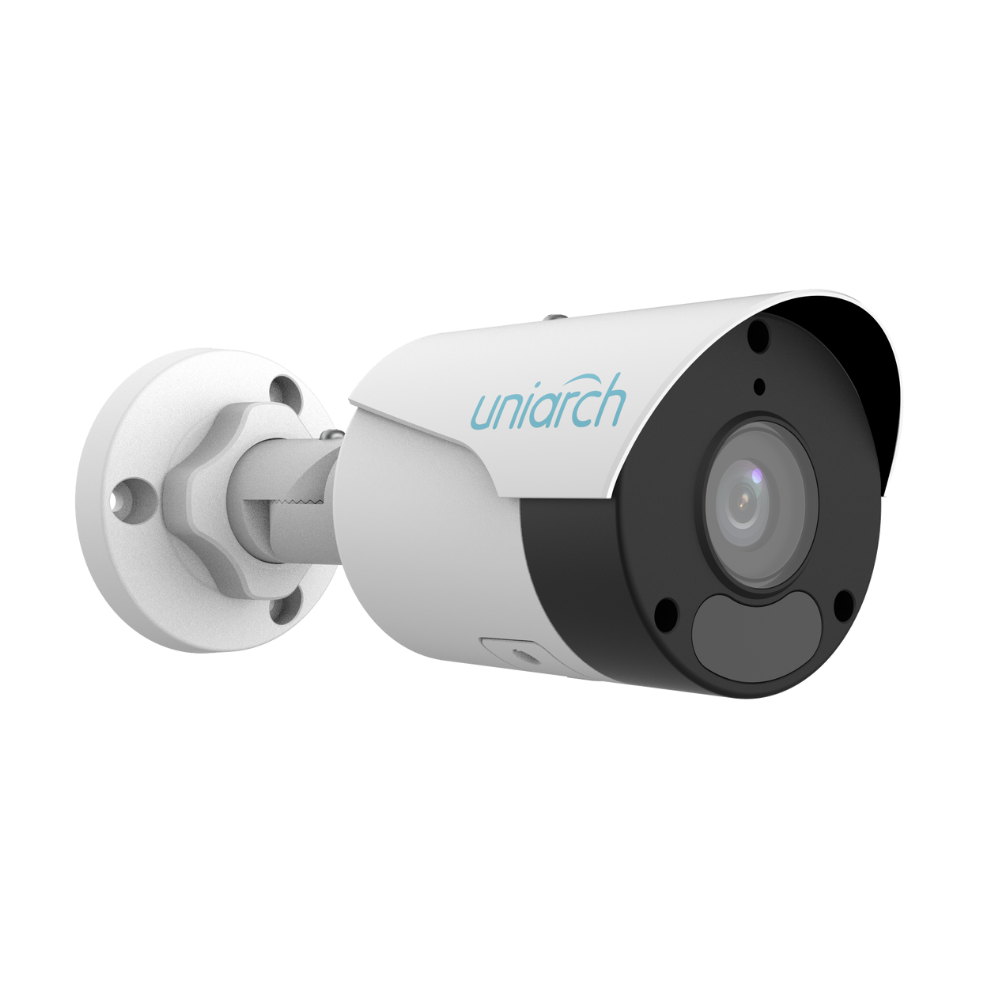

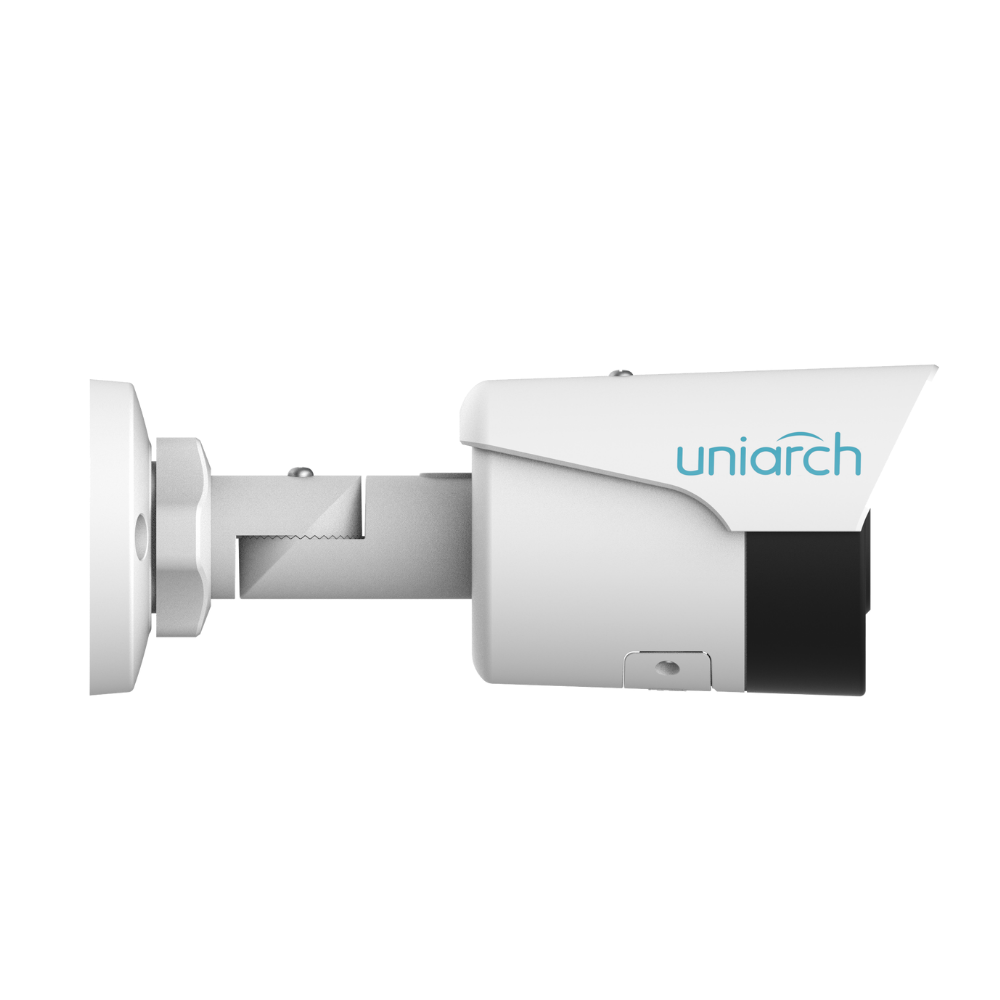

Uniarch powered by Uniview IPC-B1E6-AF28K 6MP Starlight Fixed Bullet Network Camera w/ Ai Filtering
Uniarch 6MP Starlight Fixed Bullet Network Camera, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 50M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Uniarch_IPC-B1E6-AF28K_6MP_HD_Fixed_Bullet_Network_Camera_Datasheet
$161.00 inc GST +3 Year Warranty & Support
-
- High quality image with 6MP, 1/2.7″CMOS sensor
- 6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps; 2MP(1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 50m IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3-Axis
————–
SPECIFICATIONS
| Product code – IPC-B1E6-AF28K | ||||||
| Camera | ||||||
| Sensor | 1/2.7″, 6.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Adjustment angle | Pan: 0° ~ 360°
Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
|||||
| S/N | >56dB | |||||
| WDR | 120dB | |||||
| Lens | ||||||
| Lens Type | 2.8mm @1.6, Fixed-focal | |||||
| Lens Mount | M12 | |||||
| Angle of View (H) | 112.9° | |||||
| Angle of View (V) | 59.1° | |||||
| Angle of View (O) | 121.2° | |||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||
| Illuminator | ||||||
| IR Range | Up to 50m (164ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 6MP (3072*2048), Max 20fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
|||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code | Supported | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Intrusion(based on human body detection) | |||||
| motion detection, tampering alarm, audio detection | ||||||
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication. Available at SecurityWholesalers.com.au | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS, | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | Uniarch Client
Uniarch APP |
|||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | ||||||
| Interface | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Built-in Mic | Supported | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 7.0W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L × W × H) | 179×71×70mm (7.0”×2.8”×2.8”) | |||||
| Weight | 0.45kg (0.99lb) | |||||
| Material | Metal | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Reset Button | N/A | |||||
| Ingress Protection | Ingression protection: IP67 | |||||
