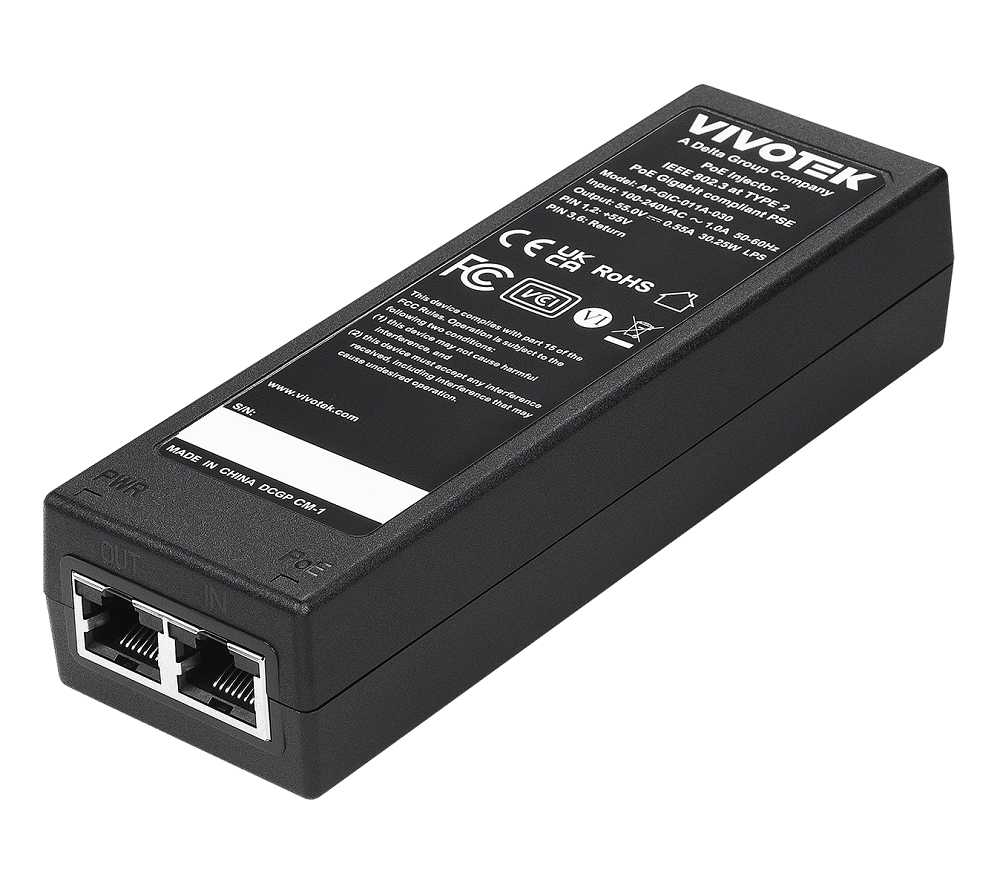

Vivotek AP-GIC-011A-030 AUN, 1xGE 30W af/at PoE Injector • NDAA Compliance
1xGE 30W af/at PoE Injector • NDAA Compliance
Key Features
- Number of PoE Port: 1
- Max. PoE Output Power/Per Port: 30W
- IEEE PoE Standard: 802.3af/at
- Over Current Protection: Supported
- Circuit Shorting Protection: Supported
- Total PoE Power Budget: 30W
- Power Pin Assignment: 1,2 (+)/3,6 (-)
- PoE PD Auto Detection: Supported
$64.00 inc GST +3 Year Warranty & Support
Technical Specifications
| Model | |
|---|---|
| AP-GIC-011A-030 | |
| Ethernet | |
| Gigabit Ethernet 10/100/1000Mbps (Data in) | 1 |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3 af/at/bt | Supported |
| PoE Function | |
| Number of PoE Port | 1 |
| Max. PoE Output Power/Per Port | 30W |
| IEEE PoE Standard | 802.3af/at |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Total PoE Power Budget | 30W |
| Power Pin Assignment | 1,2 (+)/3,6 (-) |
| PoE PD Auto Detection | Supported |
| General | |
| Input Voltage Range | 100~240VAC / 50~60Hz |
| Output Voltage/Current | 55VDC/0.55A |
| Electrostatic Discharge (ESD) Per IEC-61000-4-2 | Contact discharge: ±6KV Air discharge: ±8KV Criterion B |
| MTBF | 200k hours of continuous operation at 25°C |
| Dimensions | 140 (L) x 45.5 (W) x 30 (H) mm |
| Weight | 0.14 kg |
| Operating Temperature | -10°C ~ 45°C (14°F ~ 133°F) |
| Storage Temperature | -25°C ~ 65°C (-13°F ~ 149°F) |
| Humidity | Operating: 5~90% Storage: 5~90% (Non-condensing) |
| Safety Certifications | CE, CB, FCC, VCCI |
| Warranty | 24 Months |
| Accessories | |
| Included Accessories | Power cord, QIG |
