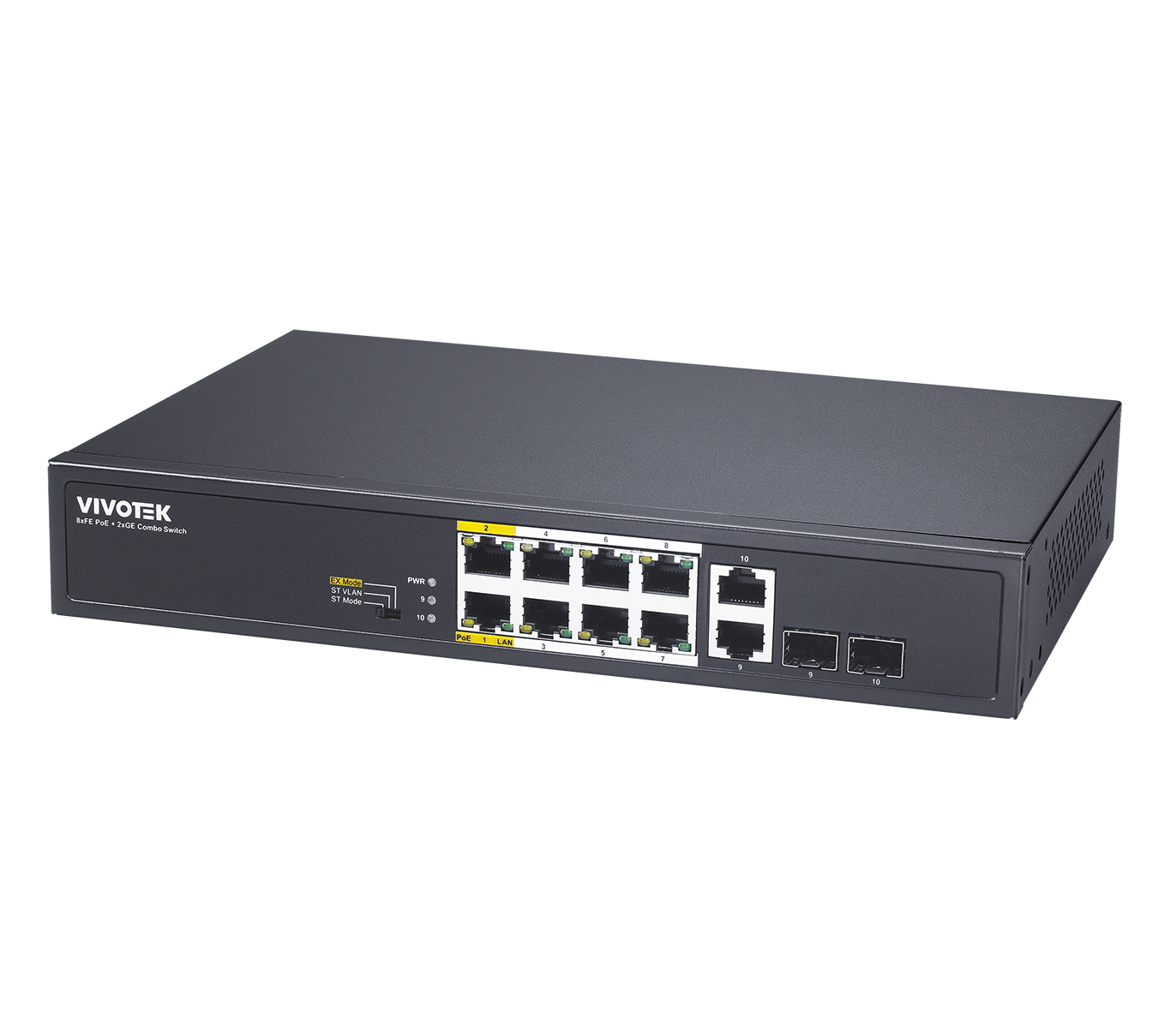

Vivotek AW-FGT-100D-120 AUN, Unmanaged 8xFE PoE + 2xGE Combo Switch
Extend PoE up to 250m • Surge Proection 6KV
Key Features
- 15.4W/30W 802.3af/802.3at Compliant
- 6KV PoE Surge Protection each Port
- 4KV AC Surge Protection
- 20% Range of Input Voltage Tolerance (280VAC 4hrs, 300VAC 1 min)
- Circuit Protection Prevents Power Interference between Ports
- Detects PoE PD (Power Device) Automatically
- ST Mode Reaches PoE Camera up to 100M@100Mbps via any Port
- EX Mode Reaches 802.3af/at Camera up to 250m@10Mbps via EX PoE Ports
$220.00 inc GST +3 Year Warranty & Support
Technical Specifications
| Model | AW-FGT-100D-120 |
|---|---|
| Short Highlight | Unmanaged 8xFE PoE + 2xGE Combo Switch |
Networking Specifications
| 10/100Mbps RJ45 PoE Port | 8 |
|---|---|
| Gigabit RJ45/SFP Combo Ports | 2 |
| EX Mode PoE Ports (250M@10Mbps) | 2 |
Ethernet Performance
| Switching Capacity | 5.6 Gbps |
|---|---|
| Mac Table | 4 K |
| Jumbo Frame | 1,536 Bytes |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
Power Specifications
| Power Input Voltage | 100VAC ~ 240VAC |
|---|---|
| Max. PoE Output Power | Per Port 54VDC, Max. 30W |
| Total PoE Power Budget | 115W |
| Power Consumption | 120W |
| IEEE 802.3af/at | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Supported |
| PoE Surge Protection | 6KV |
| AC Surge Protection | 4KV |
General
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
|---|---|
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Dimensions | 270 (L) x 181 (W) x 44 (H) mm |
| Weight | 1.54 kg |
| Warranty | 24 months |
Certifications
| EMC | CE, FCC, VCCI |
|---|---|
| Safety | LVD EN62368-1 |
