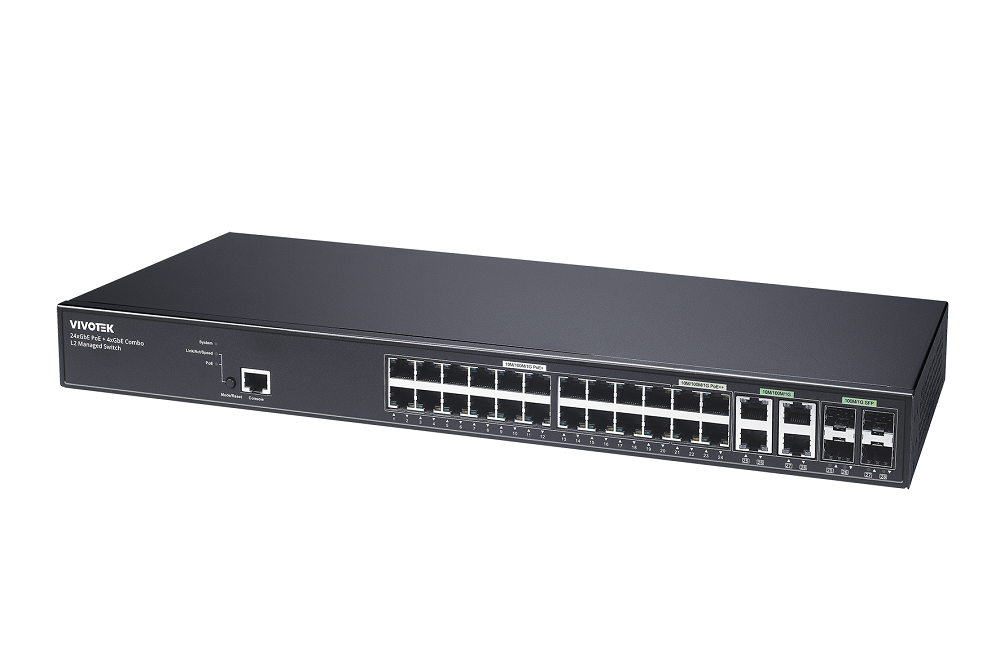

Vivotek AW-GEV-288A-370 AU, 4xGbE bt 90W PoE + 20xGbE 30W PoE + 4xGbE Combo VIVOCAM L2 Managed PoE Switch

Highlight Features

Auto Discovery
The VIVOCAM L2 series can automatically discover VIVOTEK’s devices, such as network cameras, video servers, and NVRs, with a simple click of the mouse.

Topology View
Auto-generated Topology View allows administrators to quickly view and export a complete network topology in SVG/PNG/ PDF format for easier inspection and planning.

Floor View
Upload custom floor images. Floor View allows for quick location of deployed surveillance devices and exporting this view in SVG/PNG/ PDF format for easier inspection and planning.

Google Map View
Locate surveillance devices on Google Maps to simplify multi-site management of any large-scale deployments.

Device Management
Easy network configuration, open camera Web UI, diagnose camera connection and cable status, display camera live stream, change camera network setting, restore default, PoE consumption, and PoE on/off control.

Traffic Monitor
An auto-generated comprehensive chart shows port-by-port network traffic status.

Product Specifications

Model
Model	AW-GEV-288A-370
Product Description	4xGbE bt 90W PoE + 20xGbE 30W PoE + 4xGbE Combo VIVOCAM L2 Managed PoE Switch

Port Configuration
Gigabit RJ45 Port	24
Gigabit Combo Port	4
Total Ports	28
Console Port	1

HW Performance
Switching Bandwidth	56 Gbps
Forwarding Capacity	41.7 Mpps
MAC Address	8 K
Jumbo Frames	9216 Bytes

Surveillance Features
Auto Search VIVOTEK Device	up to 256 pcs
PoE Reboot	V
Surveillance Device Management List	V
DHCP Server Function	V
VIVOTEK Device Account/Password Setting	V
VIVOTEK Device Grouping Setting for VLAN	V
VIVOTEK Device Name Edit	V
VIVOTEK Camera/Video Server Reboot/Restore Default	V
VIVOTEK Device Re-direct Link	V
VIVOTEK Device On/Off Line Status	V
E-Map View
Topology View	V
Floor View	V
Google Map View	V

Maintenance
VIVOTEK Camera/Video Server Configuration File Export/Import	V
Floor Image Management	V
Export Surveillance Management Device List	V
Cable Diagnostics	V
Traffic Monitoring	V

L2 Managed Features
Spanning Tree
IEEE802.1D (STP)	V
IEEE802.1w (RSTP)	V
IEEE802.1s (MSTP)	V
Trunking
IEEE802.1d (LACP)	V
Static Aggregation	V
VLAN
802.1Q Tag-based VLAN	4096 VLAN IDs
Port-based VLAN	V
Private VLAN Edge (PVE)	V
GARP VLAN	V
Q-in-Q (Double Tag)	V
Protocol-based VLAN	V
MAC-based VLAN	V
Voice VLAN	V
IP Subnet-based VLAN	V
Multicast VLAN Registration (MVR)	V
IGMP Snooping (v1/v2)	V
DHCP Relay	V
MLD v1/v2 Snooping	V

Network
IPv4/IPv6	V

QoS Features
Hardware Queues	8
Classification
Port Based	V
802.1p	V
Rate Limiting
Ingress	V
Egress	V
Per Port	V
Priority Queue Scheduling	WRR
DSCP & Class of Service	V

Security
IEEE802.1x	V
RADIUS Authentication	V
IGMP-RADIUS Based	V
Secure Sockets Layer (SSL)	V
Port Security	V
IP Source Guard	V
Storm Control	V
Layer 2 Isolation Private VLAN Edge (PVE)	V
RADIUS/TACACS+	V
Loop Detection	V
DHCP Snooping	V
ACLs	Up to 384 Entries
Source and Destination MAC, VLAN ID or IP Address, Protocol, Port	V
(DSCP) / IP Precedence	V
TCP/ UDP source and destination ports	V
802.1p priority	V
ICMP Packets	V
Ethernet type	V
TCP flag	V

Management
SNMP (v1, v2c, v3)	V
RMON (1,2,3 & 9 groups)	V
DHCP Server & Client	V
Port Mirroring	V
UPnP	V
LLDP (IEEE802.1ab)	V
LLDP-MED	V
S-Flow	V
Firmware Upgrade	V
NTP	V

PoE Management
PoE On/Off Control	V
PoE Alive Checking for PD	V
PoE Scheduling	V
Power Delay	V
Non-Stop PoE	V
Extended PoE Mode (up to 250m/10mbps)	V
PoE Function	IEEE 802.3af/at/bt PoE Standard Compliant
Number of PoE Output Port	24
PoE Output Power	Port 1-20 at 30W, Port 21-24 bt 90W
Total PoE Power Budget	370 W
PoE Pin Assignment	Port 21-24 bt: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-), Port 1-20 af/at: 2 pairs 1/2 (+), 3/6 (-)

Environmental Specifications
Operating Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity	10 ~ 90% RH

Mechanical Specifications
Dimensions	442 (W) x 44 (H) x 211 (D) mm
Weight	3.2 kg
Power Source
AC Input	100V ~ 240V
Frequency	50 ~ 60 Hz

Certifications
Certifications	UL, CE, UKCA, FCC, VCCI, LVD, ICES

Warranty
Warranty	24 months

Accessories
Included Accessories	Power Cord, QIG, CD Manual, Rack Mount Kit
