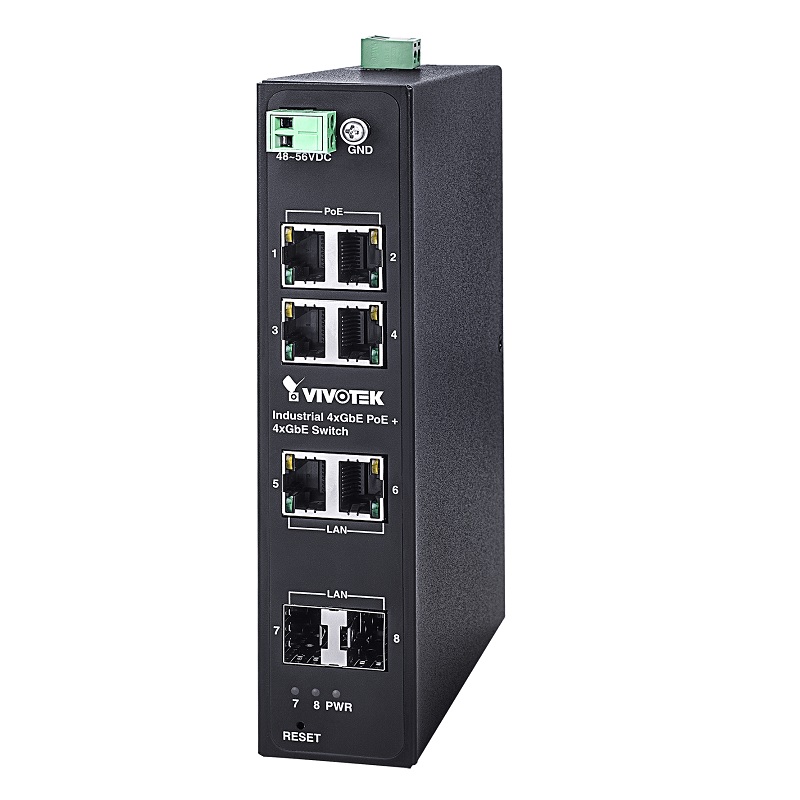

Vivotek AW-IHT-0800, Industrial 4xGE PoE + 2xGE UTP + 2xGE SFP Switch
Gigabit Ethernet • Surge Protection 12KV • -40°C to 75°C
Key Features
- Power Input Voltage
- PW1: 48 ~ 56VDC
- PW2: 48 ~ 56VDC
- Redundant Power Backup
- PoE Output Power Per Port: 54VDC, Max. 30W
- Total PoE Power Budget: 120W
- IEEE 802.3af/at Supported
- Power Pin Assignment: 1/2(+), 3/6(-)
- PoE PD Auto Detection Supported
- Surge Protection/Per PoE Port: 12KV
$320.00 inc GST +3 Year Warranty & Support
Technical Specifications
| Model | |
|---|---|
| AW-IHT-0800 | |
| Networking Specifications | |
| Gigabit Ethernet RJ45 PoE Port | 4 |
| Gigabit Ethernet RJ45 port | 2 |
| Gigabit SFP Port | 2 |
| Ethernet Performance | |
| Switching Bandwidth | 16 Gbps |
| MAC Address | 4 K |
| Buffer Memory | 128 KB |
| Jumbo Frame | 9 KB |
| Transmission Method | Store and Forward |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) | Supported |
| IEEE 802.3x Flow Control (Full-Duplex Flow Control) | Supported |
| IEEE 802.3af Power over Ethernet | Supported |
| IEEE 802.3at Power over Ethernet Plus | Supported |
| Power Specifications | |
| Power Input Voltage | PW1: 48 ~ 56VDC PW2: 48 ~ 56VDC |
| Redundant Power Backup | Max. PoE Output Power /Per PoE Port: 54VDC, Max. 30W Total PoE Power Budget: 120W |
| IEEE 802.3af/at | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Supported |
| Surge Protection/Per PoE Port | 12KV |
| General | |
| Operating Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
| Dimensions | 172 (L) x 132 (W) x 39 (H) mm |
| Weight | 0.7 kg |
| Warranty | 24 months |
| Certifications | |
| EMS | EN55024, IEC 61000-4-2(ESD), IEC 61000-4-3(RS), IEC 61000-4-4(EFT), IEC 61000-4-5(Surge), IEC 61000-4-6(CS), IEC 61000-4-8(PFMF), IEC 61000-4-11(DIP) |
| EMI | EN 55032, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 32, FCC Part15 Class A, VCCI |
| Safety | LVD, EN60950 |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
