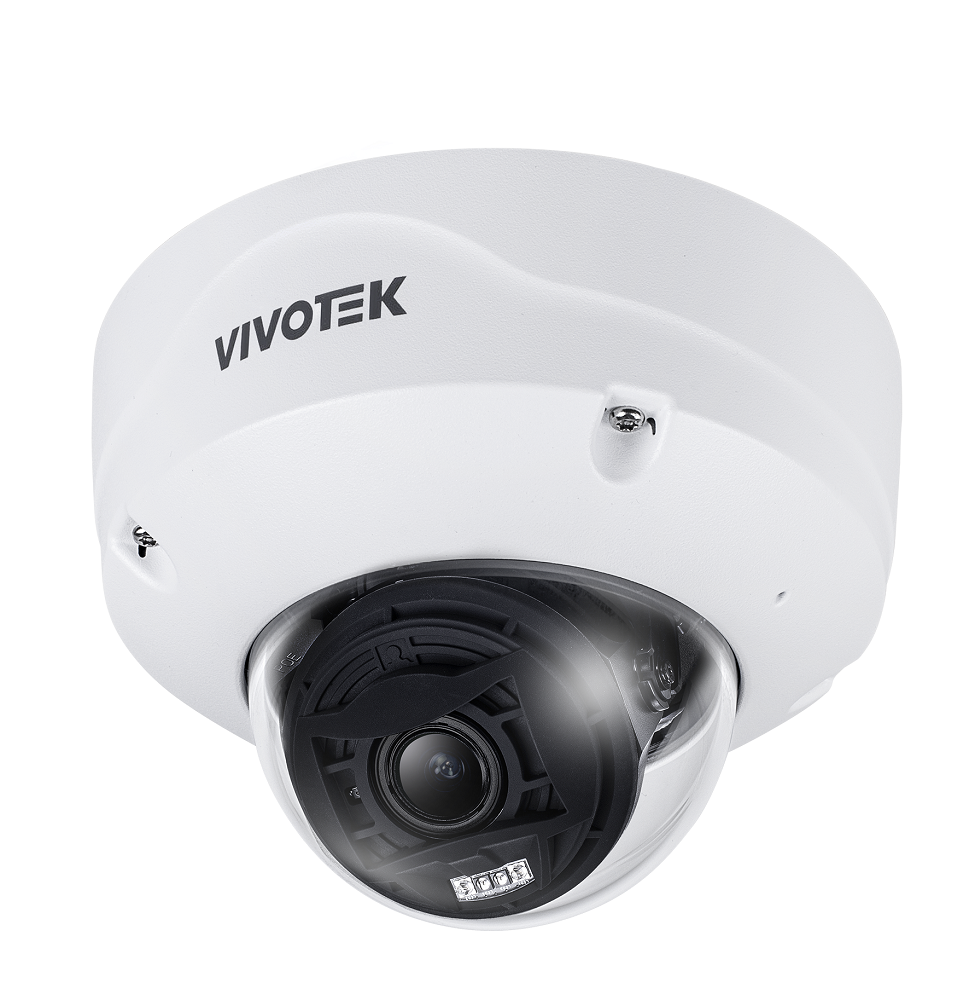

Vivotek FD9387-EHTV-v3 Fixed Dome Camera, 5MP@30 fps, 2 focal length variants, H.265, 50M IR, SNV, NEMA 4X-rated Protection

Focal Length Coverage
Thoughtfully crafted to meet a variety of needs, each model is accompanied by both outdoor and indoor versions, simplifying project installations for enhanced convenience. The shadowed areas within the photos visually approximate the coverage for each range, giving a clear representation of the surveillance capabilities across different focal lengths.

Designed for Broad and Easy Installation
Experience the seamless installation process with our 87-V3 Series cameras. These cameras offer standard junction box mounting holes, ensuring unmatched flexibility in setup.

Flagship Housing for Better Weatherproofing
Meticulously designed for superior weatherproofing. These features ensure that the camera is prepared to face diverse weather conditions, maintaining peak performance. Prioritize reliability in any environment with our advanced housing technology.

Simplifying Inventory Management and Installation
Effortlessly manage your inventory with our universal accessories, shared across multiple product lines, including the 65v2, 67v2, 91v2, and the latest 87V3 series. This streamlined approach not only ensures compatibility and versatility but also facilitates a seamless transition between products, minimizing the learning curve for our resellers and distributors.

Smart VCA: AI-Powered Video Analytics on Edge
Empowers cameras to collect more valuable scene awareness data than traditional frame-difference-based video motion detection. Operating as edge-based applications, Smart VCA also minimizes bandwidth and storage usage. Smart VCA is designed to improve efficiency and reduce operators’ workloads.

Deep Search: AI-Driven Solution
While AI adoption has presented challenges in installation and configuration for many, VIVOTEK Deep Search revolutionizes the process, simplifying user judgment through automated investigation.

Technical Specifications

System Information

Model	FD9387-EHTV-V3
CPU	Multimedia SoC (System-on-Chip)
Flash	eMMC 8 GB
RAM	DDR4 2 GB

Camera Features

Image Sensor	1/2.8″ Progressive CMOS
Max. Resolution	2560×1920 (5MP)
Lens Type	Motorized, Vari-focal, Remote Focus
Focal Length	f = 2.7 ~ 13.5 mm (short range) f = 7 ~ 22 mm (mid-range)
Aperture	F1.83(W) ~ F3.32(T) (Short range) F1.70(W) ~ F2.90(T) (Mid-range)
Iris Type	P-iris
Field of View	Short range 100.1° ~ 29.9° (Horizontal) 71.8° ~ 22.4° (Vertical) 135.2° ~ 37.4° (Diagonal)Mid-range 39.3° ~ 15.5° (Horizontal) 28.8° ~ 11.6° (Vertical) 50.8° ~ 19.4° (Diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Pro
Day/Night	Yes
Removable IR-cut Filter	Yes
IR Illuminators	Built-in IR illuminators, effective up to 50 meters with Smart IR III, IR LED*4
Minimum Illumination	Short range 0.04 lux @ F1.8 (Color) <0.005 lux @ F1.8 (B/W) 0 lux with IR illumination onMid-range 0.035 lux @ F1.7 (Color) <0.005 lux @ F1.7 (B/W) 0 lux with IR illumination on
Pan Range	±175°
Tilt Range	80°
Rotation Range	±175°
Pan/Tilt/Zoom Functionalities	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage	Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS)
Built-in Installation Aids	Remote focus, remote zoom, Micro USB*, pixel calculator *Requires Wi-Fi dongle and Micro B converter

Video

Video Compression	H.265, H.264, MJPEG
Maximum Frame Rate	30 fps @ 2560×1920 (WDR Pro on) 30 fps @ 2560×1440 (WDR Pro on) 60 fps @ 1920×1080 (WDR Pro off)
Maximum Streams	3 video streams (Up to 8 configurable profiles)
Main Stream	30 fps @ 2560×1920, 1600×1200, 1280×960, 640×480 (4:3); 30 fps @ 2560×1440, 1920×1080, 1600×904, 1280×720,1360×768, 640×360 (16:9) 60 fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9)
2nd Stream	30 fps @ 2560×1920, 1600×1200, 1280×960, 640×480 (4:3); 30 fps @ 2560×1440, 1920×1080, 1600×904, 1280×720,1360×768, 640×360 (16:9) 60 fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9)
3rd Stream	30 fps @ 1280×960, 640×480 (4:3); 30 fps @ 1280×720, 640×360 (16:9); 60 fps @ 1280×720, 640×360 (16:9)
S/N Ratio	70 dB
Dynamic Range	120 dB
Video Streaming	Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings	General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure, VCA-based Smart IR III; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; pixel calculator; Scheduled profile settings

Audio

Audio Capability	Two-way audio (Full duplex)
Audio Compression	G.711, G.726, MPEG-2 AAC-LC
Audio Interface	Built-in microphone
External Microphone Input	External line output
Effective Range	5 meters

Network

Users	Live viewing for up to 10 clients
Security	Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface	10 Base-T/100 Base-TX Ethernet *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF	Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

Compute Capability	SoC with built-in hardware deep learning accelerator
Vision Object Analytics	Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction
Application	Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection) Application available with license Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
AI-powered Image Enhancement	Smart IR III

Solution Integration

Applications	Stratocast, Trend Micro IoT Security (3-year free trial)

Alarm and Event

Event Trigger	Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action	Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card

General

Connectors	Default IO: RJ-45 cable connector for 10/100 Mbps PoE network connection Built-in Microphone Audio line input Audio line output DC 12V power input Digital input*1 Digital output*1 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) Micro USB
Module I/O (AO-011)*	Digital input *1 Digital output *1 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) AC 24V power input *Requires extension I/O module kit (AO-011 I/O Kit for dome cameras)
LED Indicator	System power and status indicator
Power Input	AC 24V*, DC 12V, IEEE 802.3af PoE Class 0 (Power Redundancy) *Requires extension I/O module kit (AO-011)
Power Consumption	12.95 W
Dimensions	ø 173.6 x 122.6 mm
Weight	1.30 kg
Certifications	EMC: CE (EN 55032/EN 55035 Class B, EN 50121-4), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032/BS EN 55035 Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), IC (ICES-003 Issue 7); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD, (EN 62368-1), UKCA (BS EN IEC 62368-1); Environment: IK10+ (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X), IEC 60068-2-11, IP6K9K (ISO 20653); IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature	Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (IR off) -40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity	98% RH (non-condensing)

System Requirements

Operating System	Microsoft Windows 10/8/7 Mac 10.12 (Chrome only)
Web Browser	Chrome 58.0 or above Internet Explorer 11
Other Players	VLC: 1.1.11 or above

Included Accessories

Packing Contents	Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, conduit bracket, I/O cable

DORI (EN 62676-4 Standard)

Detect (25PPM/ 8PPF)	Short range Wide: 64.4 m (211.2 ft) Tele: 196.6 m (645.2 ft) Middle range Wide: 157.3 m (516.0 ft) Tele: 378.2 m (1240.6 ft)
Observe (63PPM/ 19PPF)	Short range Wide: 25.7 m (84.4 ft) Tele: 78.7 m (258.1 ft) Middle range Wide: 62.7 m (205.6 ft) Tele: 151.3 m (496.2 ft)
Recognize (125PPM/ 38PPF)	Short range Wide: 12.8 m (42.1 ft) Tele: 39.3 m (129.0 ft) Middle range Wide: 31.4 m (103.2 ft) Tele: 75.9 m (249.1 ft)
Identify (250PPM/ 76PPF)	Short range Wide: 6.4 m (20.9 ft) Tele: 19.6 m (64.5 ft) Middle range Wide: 15.7 m (51.4 ft) Tele: 37.9 m (124.3 ft)
