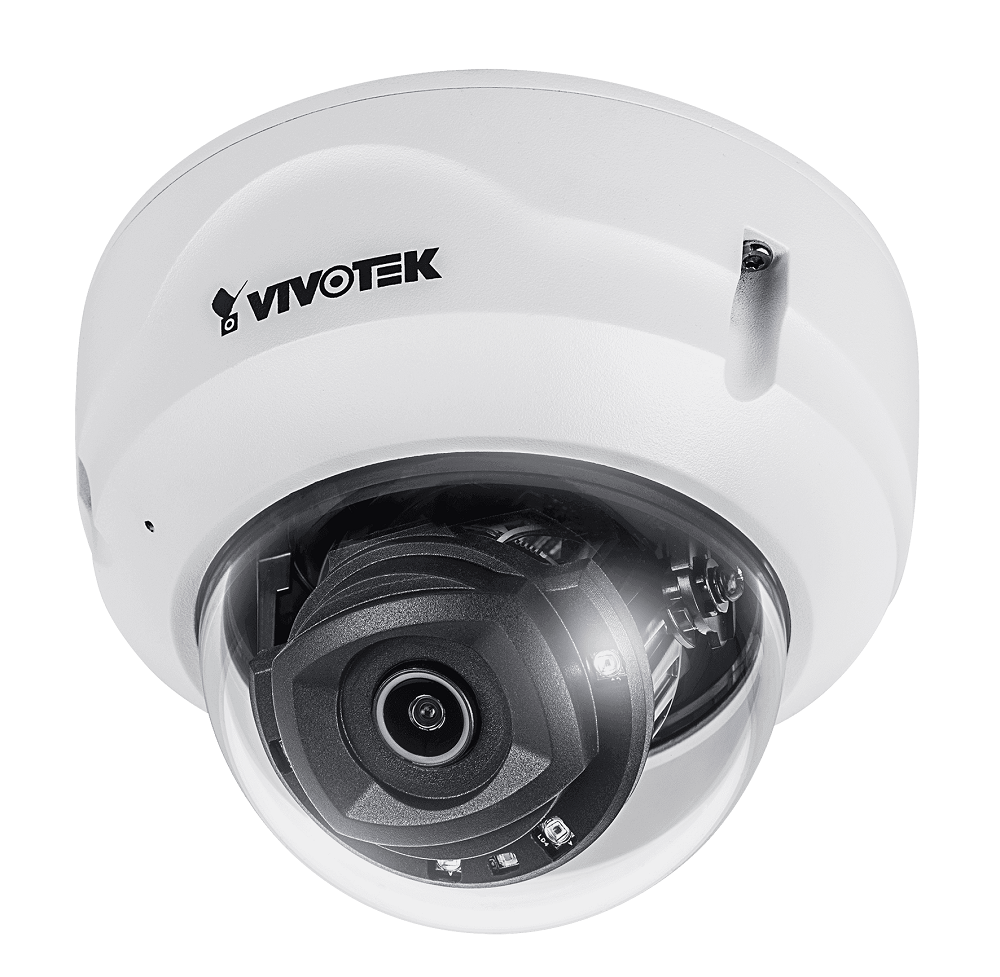

Vivotek FD9389-EHV-v2 Fixed Dome Camera, 5MP 30fps, H.265, 2MP 60fps, 2.8mm, 30M IR, WDR Pro, Supreme Night Visibility

VIVOTEK’s FD9389-v2 series is a H.265 outdoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9389-v2 series is capable of capturing high-quality imagery in both high contrast and low light environments.

The FD9389-v2 series offers two lens options, fixed-focal and remote focus lens for different user scenarios. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the FD9389-v2 series is encased in IP66 and IK10 housing.

Employing VIVOTEK’s Smart Stream III technology and H.265 codec support, the FD9389-v2 series reduces bandwidth up to 90%* while maintaining supreme image quality. Furthermore, FD9389-v2 series offer AI-powered smart motion detection allowing events focusing on human object instead of irrelevant noise . * Depending on scenes

H.265 + Smart Stream III, Ultra-low Bandwidth

Lightning-fast search speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search result. Experience the power of Deep Search in VIVOTEK’s network video recording, VAST Security Station, and VORTEX VSaaS.

Technical Specifications

System Information
Model	FD9389-EHV-v2
CPU	Multimedia SoC (System-on-Chip)
Flash	8 GB
RAM	1 GB

Camera Features
Image Sensor
Sensor Type	1/2.7″ Progressive CMOS
Max. Resolution	2560×1920 (5MP)
Lens
Lens Type	Fixed-focal
Focal Length	f = 2.8 mm
Aperture	F2.0
Iris Type	Fixed iris
Field of View	103° (Horizontal), 76° (Vertical), 134° (Diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Pro
Day/Night	Yes
Removable IR-cut Filter	Yes
IR Illuminators	Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*4
Minimum Illumination	0.06 lux @ F2.0 (Color), 0.01 lux @ F2.0 (B/W), 0 lux with IR illumination on
Pan/Tilt/Zoom Functionalities
Pan Range	>350°
Tilt Range	80°
Rotation Range	±175°
ePTZ	48x digital zoom (4x on IE plug-in, 12x built-in)

Storage
Seamless Recording	MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

Video
Video Compression
Compression Formats	H.265, H.264, MJPEG
Maximum Frame Rate	30 fps @ 2560×1920, 60 fps @ 1920×1080
Maximum Streams	3 video streams (Up to 8 configurable profiles)
Stream 1	2560×1920
Stream 2	1280×960, 800×600, 640×480
Stream 3	800×600, 640×480
S/N Ratio	55 dB
Dynamic Range	120 dB
Video Streaming	Adjustable resolution, quality and constant bit rate control, Smart Stream III

Image Settings
General settings	Video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators	Illuminators, anti-overexposure
Image settings	White balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur)
Exposure	BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Privacy mask	Yes
Scheduled profile settings	Yes

Audio
Audio Capability	One-way Audio
Audio Compression	G.711, G.726, MPEG-2 AAC-LC
Audio Interface	Built-in microphone
Effective Range	5 meters

Network
Users	Live viewing for up to 10 clients
Security
Access List	Yes
Account Block	Yes
Audit Log	Yes
Configurable Password Strength Protection	Yes
CSRF Protection	Yes
Digest Authentication	Yes
HTTPS	Yes
IEEE 802.1x	Yes
Secure Boot	Yes
Session Timeout	Yes
Signed Firmware	Yes
Trend Micro IoT Security	Brute force attack event, Cyberattack event, Quarantine event
User Access Log	Yes
User Account Management	Yes
Protocols
Supported Protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
Network Interface	10 Base-T/100 Base-TX Ethernet (RJ-45)
ONVIF	Profile G, S, T supported, specification available at www.onvif.org

AI Analytics
Compute Capability
SoC	With built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection	People, vehicle (4-wheeled); Path Extraction
Application	Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection	Five-window video motion detection, People detection, Vehicle detection, Time filter
Smart VCA	Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application Available with License	Running detection, Parking Violation Detection, Restricted Zone Detection
Support	For more analytic applications and free trial, please visit vivotek.com/video-analytics

Solution Integration
Applications	Stratocast, Trend Micro IoT Security (3-year free trial)

Alarm and Event
Event Trigger
Trigger Types	Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Notification	Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File Upload	Via email, HTTP, FTP/SFTP, NAS server, SD card

General
Connectors	RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator	System power and status indicator
Power Input	IEEE 802.3af PoE Class 0
Power Consumption	Max: 8.55W (IR on), Max: 6.15W (IR off)
Dimensions	Ø 129 x 94 mm
Weight	605 g
Certifications
EMC	CE (EN55032, EN55024 Class A, EN50121-4), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)
Safety	UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment	IK10 (IEC 62262), IP66 (IEC 60529)
IA	BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature
Starting Temperature	-30°C ~ 50°C (-13°F ~ 122°F)
Working Temperature (IR on)	-40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature (IR off)	-40°C ~ 50°C (-40°F ~ 122°F)
Humidity
Operating Humidity	98% RH (non-condensing)

System Requirements
Operating System	Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
Web Browser	Chrome 58.0 or above, Internet Explorer 10/11
Other Players	VLC: 1.1.11 or above

Included Accessories
Packing Contents	Quick installation guide, alignment sticker, screw pack

DORI (EN 62676-4 Standard)
Detect (25PPM/8PPF)	68.6 m (225.1 ft)
Observe (63PPM/19PPF)	27.2 m (89.3 ft)
Recognize (125PPM/38PPF)	13.7 m (45.0 ft)
Identify (250PPM/76PPF)	6.9 m (22.5 ft)
