360° Fisheye Camera, Fisheye Dome Camera, Network Camera, Supreme Series, Vivotek

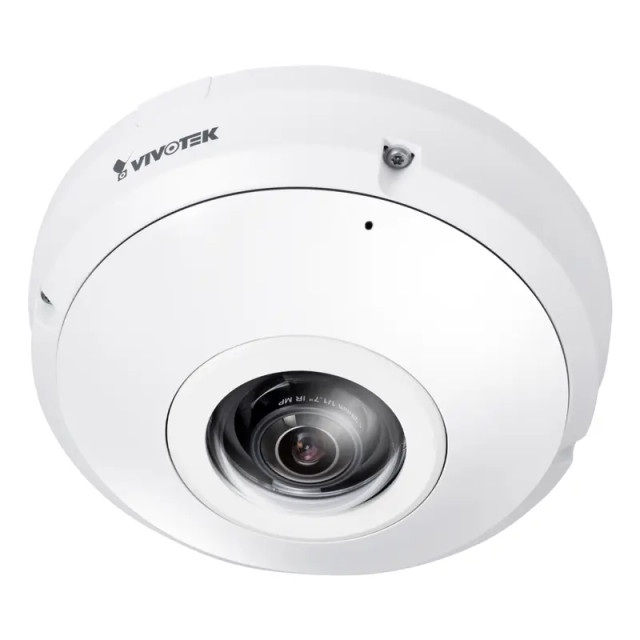

Vivotek FE9191-H-v2 Indoor 360 Fisheye, 12MP, f1.22mm lens, WDR Pro, Built-in Mic, PoE,Smart VCA
The FE9191-H-v2 comes fully equipped with VIVOTEK’s Smart VCA (Video Content Analysis). With AI-based deep-learning and Smart Motion Detection, Smart VCA will enable users to quickly and accurately detect event triggers such as intrusion detection and missing object alerts. This suite of analytic functions is only available on our SUPREME line of products.
Key Features
- 12-Megapixel CMOS Sensor
- 30 fps @ 2944×2944
- WDR Pro (120dB) for Improved Visibility in High Contrast Scenes
- Smart Motion Detection to Reduce False Alarms
- Smart VCA (Intrusion Detection, Crowd Detection, Loitering Detection)
- Trend Micro IoT Security
- Built-in Microphone
- Local Dewarp
$986.00 inc GST +3 Year Warranty & Support
VIVOTEK’s FE9191-H-v2 is a fisheye network camera featuring a detailed 12-Megapixel resolution sensor for superb image quality. A small camera with big functionality, VIVOTEK’s FE9191-H-v2 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Equipped with a fisheye lens for 360° surround view with no blind spots, the low profile design enables very discrete surveillance of indoor spaces, such as retail boutiques, hotel lobbies, banks, and more.
Furthermore, the FE9191-H-v2 comes fully equipped with VIVOTEK’s Smart VCA (Video Content Analysis). With AI-based deep-learning and Smart Motion Detection, Smart VCA will enable users to quickly and accurately detect event triggers such as intrusion detection and missing object alerts. This suite of analytic functions is only available on our SUPREME line of products.
| Specifications | |
|---|---|
| System Information | |
| Model | FE9191-H-v2 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
| Camera Features | |
| Image Sensor | 1/2.3″ Progressive CMOS in 4056×3040 |
| Max. Resolution | 2944×2944 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.22 mm |
| Aperture | F2.0 |
| Iris Type | Fixed iris |
| Field of View | 180° (Horizontal), 180° (Vertical), 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| Minimum Illumination | 0.1 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 12x digital zoom (12x on IE plug-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and network-attached storage (NAS) |
| Built-in Installation Aids | Pixel calculator |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2944×2944 (WDR off), 20 fps @ 2944×2944 (WDR on) |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 56.9 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | Video title and time stamp overlay, video orientation (flip, mirror), day/night settings, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, BLC, exposure control, AE speed adjustment, WDR, Privacy mask, Scheduled profile settings, Pixel calculator |
| Display Mode | Client Dewarping: Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R One Fisheye Three Regions |
| Local Dewarping: Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions | |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Audio Compression | G.711, G.726, MPEG-2 AAC-LC |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection: people, vehicle (4-wheeled, 2-wheeled); Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) |
| Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection) Application available with license | |
| Solution Integration | Applications: Stratocast, Trend Micro IoT Security (3-year free trial) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Event notification via audio clip*, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card, Camera link |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mbps PoE network connection; Audio input*, Audio output*, DC 12V power input*, Digital input*, Digital output* (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 9 W |
| Dimensions | ø 150 x 68.2 mm |
| Weight | 701 g |
| Certifications | EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B), UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), ICES-003 Issue 7, BSMI (EMC: CNS 13438, Safety: CNS 14336-1); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1); *IK10 (Metal Housing) |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~122°F); Working Temperature: -10°C ~ 50°C (14°F ~122°F) |
| Humidity | 90% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, mounting bracket |
| DORI (EN 62676-4 Standard) | Detect (25PPM/ 8PPF): 31.5 m (103.3 ft); Observe (63PPM/ 19PPF): 12.5 m (41 ft); Recognize (125PPM/ 38PPF): 6.3 m (20.7 ft); Identify (250PPM/ 76PPF): 3.1 m (10.2 ft) |
