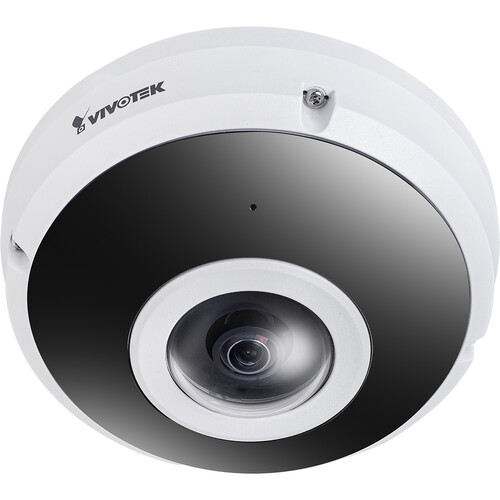

Vivotek FE9380-HV Outdoor Vandal Proof, 5M, f1.16mm fisheye lens, D/N, IR 10m, WDR Pro, 3DNR, PoE, built-in mic, IP66, IK10

5MP • 360° Fisheye • WDR Pro • 360° 10M IR • Smart IR • Smart Stream III • IP66
• IK10

To meet the demands of harsh outdoor applications, the FE9380-HV is armed with an IP66-rated housing for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism. Lastly the FE9380-HV uses H.265 compression technology. When combined with Smart Stream III, H.265 helps to reduce bandwidth and storage consumption up to 90%*, enabling the FE9380-HV to record more detailed 360° images while simultaneously helping to reduce costs.

Key Features

  • H.265 compression Technology
  • 30 fps @ 1920×1920
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Smart Stream III to Optimize Bandwidth Efficiency
  • WDR Pro for Improved Visibility in Extremely Bright and Dark Environments
  • Built-in IR Illuminators, Effective up to 10 Meters
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Trend Micro IoT Security
  • Built-in Microphone
  • Local Dewarping

Datasheet FE9380-HV



$820.00 inc GST +3 Year Warranty & Support

The 5-Megapixel FE9380-HV is the newest addition to the VIVOTEK 360° fisheye family. The FE9380-HV is a true day/night camera, with a removable IR-cut filter and 360° IR illumination up to 10 meters radius. It supports up to 30fps at full 5MP resolution as well as WDR Pro 120dB to maintain excellent image quality in high contrast lighting environments. These features greatly enable the FE9380-HV to provide clear images 24 hours a day.

To meet the demands of harsh outdoor applications, the FE9380-HV is armed with an IP66-rated housing for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism. Lastly the FE9380-HV uses H.265 compression technology. When combined with Smart Stream III, H.265 helps to reduce bandwidth and storage consumption up to 90%*, enabling the FE9380-HV to record more detailed 360° images while simultaneously helping to reduce costs. * Depending on scenes

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.

  • Client and local dewarping modes offer various fisheye, panoramic, and region views while the camera is wall or ceiling mounted
  • Multimedia SoC CPU
  • Removable IR cut filter enables day and night functionality
  • H.265, H.264, and MJPEG video codecs
  • Smart Stream III optimizes bandwidth efficiency
  • Four streams
  • ePTZ with 12x digital zoom
  • WDR Pro
  • 120 dB dynamic range
  • 63 dB S/N ratio
  • Image settings include video title and time stamp overlay, video orientation (flip, mirror), day/night settings, illuminators, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, DIS, scene mode (auto, deblur), exposure, BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), WDR, privacy mask, and scheduled profile settings
  • Five-window video motion detection
  • Event triggers include audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, microSD card life expectancy, shock detection, and system boot
  • Built-in microphone with an effective audio pickup range of about 16′
  • 100M RJ45 Ethernet
  • Compatible with Windows 10, 8 & 7, Mac OS 10.12 (Chrome only), Internet Explorer 10 & 11, Chrome 58 or higher, VLC 1.1.11 or higher, VADP package (Stratocast, Trend Micro IoT Security (1-year free trial), AWS, VAST VMS, and Shepherd
  • Live viewing for up to ten clients
  • System power and status LED indicators
  • CE, FCC, VCCI, UL, and CB certified



Specifications
System Information
Model FE9380-HV
CPU Multimedia SoC (System-on-Chip)
Flash 128 MB
RAM 512 MB
Camera Features
Image Sensor 1/2.7″ Progressive CMOS in 2688×1944
Max. Resolution 1920×1920
Lens Type Fixed-focal
Focal Length f = 1.16 mm
Aperture F2.25
Iris Type Fixed iris
Field of View 180° (Horizontal), 180° (Vertical), 180° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Day/Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR illuminators, effective up to 10 meters with Smart IR, IR LED*4
Minimum Illumination 0.05 lux @ F2.25 (Color), <0.005 lux @ 2.25 (B/W), 0 lux with IR illumination on
Pan/Tilt/Zoom Functionalities ePTZ: 12x digital zoom (12x on IE plug-in)
Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 24 fps @ 1920×1920 (WDR on), 30 fps @ 1920×1920 (WDR off)
Maximum Streams 4 video streams (Up to 9 configurable profiles)
S/N Ratio 63 dB
Dynamic Range 120 dB
Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), WDR; Privacy mask; Scheduled profile settings
Display Mode Client dewarping: Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions. Local dewarping: Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
Audio
Audio Capability One-way Audio
Audio Compression G.711, G.726
Audio Interface Built-in microphone
Effective Range 5 meters
Network
Users Live viewing for up to 10 clients
Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
ONVIF Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection Five-window video motion detection
VADP Package Stratocast, Trend Micro IoT Security (1-year free trial)
Alarm and Event
Event Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action Event notification via email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE Class 0
Power Consumption Max. 12 W/3.8 W (IR on/off)
Dimensions Ø 150 x 68.2 mm
Weight 695 g
Certifications EMC: CE (EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F); Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 90%
System Requirements
Operating System Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above, Internet Explorer 10/11
Other Players VLC: 1.1.11 or above



Sample Video
