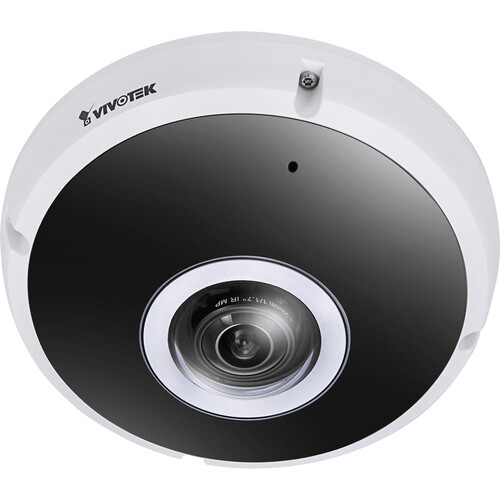

Vivotek FE9391-EHV-v2 Outdoor Vandal Proof, 12M, f1.29mm panamorph lens, IR 20m, Smart IR II (adIR), WDR Enhanced
VIVOTEK’s FE9391-EHV-v2 is an outdoor fisheye network camera, featuring a detailed 12-Megapixel sensor for superb image quality. It has WDR Pro to maintain optimal image quality in high contrast lighting environments as well as H.265 compression with Smart Stream III to reduce bandwidth and storage consumption to a minimum. Equipped with IR illuminators and VIVOTEK’s Smart IR II technology, the FE9391-EHV-v2 can see up to 20m radius in total darkness. The housing is IP66-rated for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism.
Key Features
- 12-Megapixel CMOS Sensor
- 30 fps @ 2944×2944
- 360° 20M IR with Smart IR II
- WDR Pro (120dB) for Improved Visibility in High Contrast Scenes
- Smart Motion Detection to Reduce False Alarms
- Smart VCA (Intrusion Detection, Crowd Detection, Loitering Detection)
- Trend Micro IoT Security
- Local Dewarp
$1,217.00 inc GST +3 Year Warranty & Support
VIVOTEK’s FE9391-EHV-v2 is an outdoor fisheye network camera, featuring a detailed 12-Megapixel sensor for superb image quality. It has WDR Pro to maintain optimal image quality in high contrast lighting environments as well as H.265 compression with Smart Stream III to reduce bandwidth and storage consumption to a minimum. Equipped with IR illuminators and VIVOTEK’s Smart IR II technology, the FE9391-EHV-v2 can see up to 20m radius in total darkness. The housing is IP66-rated for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism.
With added NEMA 4X protection, even more extreme offshore applications will not be an issue. The 12-Megapixel fisheye lens provides a 360 degree surround view with no blind spots, excellent for coverage of open areas such as airports, schools, parking garages, and more. The FE9391-EHV-v2 comes fully equipped with VIVOTEK’s Smart VCA (Video Content Analysis). With AI based deep-learning and Smart Motion Detection, Smart VCA will enable users to quickly and accurately detect event triggers such as intrusion detection and missing object alerts. This suite of analytic functions is only available on our SUPREME line of products.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure for outdoor use in areas at risk of vandalism. An embedded heater allows the camera to be operational in temperatures as low as -40°F.
- Built-in heater
- Client and local dewarping modes offer various fisheye, panoramic, and region views while the camera is wall or ceiling mounted
- Multimedia SoC CPU
- Removable IR cut filter enables day and night functionality
- Smart Stream III optimizes bandwidth efficiency
- ePTZ with 12x digital zoom
- WDR Pro
- 120 dB dynamic range
- 56.9 dB S/N ratio
- Image settings include: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, exposure, BLC, exposure control, AE speed adjustment, WDR, privacy mask, scheduled profile settings, and pixel calculator
- Five-window video motion detection, people detection, and time filter
- Smart VCA includes: intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, crowd detection, and running detection (parking violation and restricted zone detection available separately with license)
- Event triggers include: audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, microSD card life expectancy, shock detection, and system boot
- Secure boot and signed firmware security
- Built-in microphone with an effective audio pickup range of about 16′
- Audio input and output
- Compatible with Windows 10, 8 & 7, macOS 10.12 (Chrome only), Internet Explorer 10 & 11, Chrome 58 or higher, VLC 1.1.11 or higher, and VADP package
- Live viewing for up to ten clients
- System power and status LED indicators
| Specifications | |
|---|---|
| System Information | |
| Model | FE9391-EHV-v2 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
| Camera Features | |
| Image Sensor | 1/2.3″ Progressive CMOS in 4056×3040 |
| Max. Resolution | 2944×2944 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.22 mm |
| Aperture | F2.0 |
| Iris Type | Fixed Iris |
| Field of View | 180° (Horizontal), 180° (Vertical), 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 20 meters with Smart IR II, IR LED*4 |
| Minimum Illumination | 0.1 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W), 0 lux with IR illumination on |
| Pan/Tilt/Zoom Functionalities | ePTZ: 12x digital zoom (12x on IE plug-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Pixel calculator |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30fps @ 2944×2944 (WDR off), 20fps @ 2944×2944 (WDR on) |
| Maximum Streams | 3 video streams (up to 8 configurable profiles) |
| S/N Ratio | 56.9 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, exposure control, AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator |
| Display Mode | Client Dewarping: Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions |
| Local Dewarping | Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions |
| Audio | |
| Audio Capability | Two-way audio (Full duplex) |
| Audio Compression | G.711, G.726, MPEG-2 AAC-LC |
| Audio Interface | Built-in microphone, External microphone input (FE9391-EHV-v2 (IO Cable), P/N 100273700G version only), External line output (FE9391-EHV-v2 (IO Cable), P/N 100273700G version only) |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection: people, vehicle (4-wheeled, 2-wheeled); Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) |
| Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection) | |
| Application available with license: Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit vivotek.com/video-analytics | |
| AI-powered Image Enhancement | Smart IR III |
| Solution Integration | Applications: Stratocast, Trend Micro IoT Security (3-year free trial) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Event notification via audio clip*, digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mbps PoE network connection; Audio input*, Audio output*, DC 12V power input*, Digital input*, Digital output* (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3at PoE Class 4 |
| Power Consumption | Max. 22.5 W/9.55 W (IR on/off) |
| Dimensions | ø 150 x 68.2 mm |
| Weight | 701 g |
| Certifications | EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22); Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X); IA: BIS (IS 13252) |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F); Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) (IR off), -40°C ~ 50°C (-40°F ~ 122°F) (IR on) |
| Humidity | 90% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7; Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above; Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | Quick installation guide, alignment sticker, desiccant bag, screw driver, screw pack |
| DORI (EN 62676-4 Standard) | Detect (25PPM/ 8PPF): 31.5 m (103.3 ft); Observe (63PPM/ 19PPF): 12.5 m (41 ft); Recognize (125PPM/ 38PPF): 6.3 m (20.7 ft); Identify (250PPM/ 76PPF): 3.1 m (10.2 ft) |
