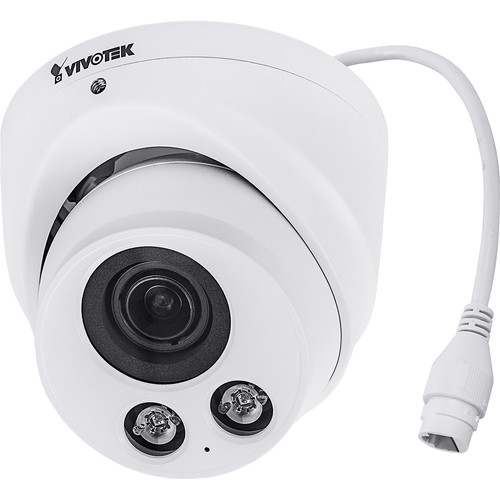

Vivotek IT9388-HT Outdoor Network Turret Camera, 5MP 20fps, H.265, 2.8~12mm, 30M IR, WDR Pro, Supreme Night Visibility
5MP • Remote Focus • SNV • WDR Pro • 30M IR • Smart Stream III • IP66
The IT9388-HT uses a 1/2.7″ progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 20 fps. Two IR LEDs provide up to 98′ of night vision. The camera’s 2.8-12mm varifocal lens delivers a 90 to 30° horizontal field of view. A built-in microphone picks up audio from up to 16′ away. A memory card slot accepts micro SD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Key Features
- H.265 Compression Technology
- 20 fps @ 2560×1920 (WDR Pro on)
- 2.8~12 mm, Remote Focus
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Trend Micro IoT Security
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Built-in Microphone
$373.00 inc GST +3 Year Warranty & Support
The Vivotek IT9388-HT Outdoor Network Turret Camera uses a 1/2.7″ progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 20 fps. Two IR LEDs provide up to 98′ of night vision. The camera’s 2.8-12mm varifocal lens delivers a 90 to 30° horizontal field of view. A built-in microphone picks up audio from up to 16′ away. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This turret camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.
- Multimedia SoC CPU
- Removable IR cut filter enables day and night functionality
- Supreme Night Visibility (SNV) for low-light conditions
- Smart IR technology
- H.265, H.264, and MJPEG video codecs
- Three simultaneous streams
- Smart Stream III optimizes bandwidth efficiency
- Seamless recording
- Fixed iris
- Remote focus
- 4.3x optical and 48x digital zoom
- Camera pivots 360° horizontally and 70° vertically
- 360° rotation range
- WDR Pro (120 dB)
- 61 dB S/N ratio
- Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, highlight compensation, defog, 3D-DNR, and video rotation
- Five-window video motion detection
- Built-in microphone that picks up audio up to 16′ away
- Alarm triggers include motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, audio detection, microSD card life expectancy, and cybersecurity (brute force attack event, cyberattack event, quarantine event)
- Event notification via email, HTTP, FTP, NAS server, and microSD card
- File upload via email, HTTP, FTP, NAS server, and microSD card
- 100M Ethernet
- System power and status LED indicators
- Live viewing for up to ten clients
- Compatible with Microsoft Windows 7 and 8, Mac 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, VLC 1.1.11 or above, QuickTime 7 or above, Trend Micro IoT Security, Stratocast, Amazon Web Services, VAST VMS, and Shepherd camera management tool
- CE, FCC Class B, UL, LVD, VCCI, and C-Tick certified
Technical Specifications
| Model | IT9388-HT |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
| Image Sensor | 1/2.7″ Progressive CMOS |
|---|---|
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8 ~ 12 mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Type | Fixed iris |
| Field of View | 90° ~ 30° (Horizontal), 65° ~ 23° (Vertical), 115° ~ 38° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.035 lux @ F1.4 (Color), <0.005 lux @ F1.4 (B/W), 0 lux with IR illumination on |
| Pan Range | 360° |
| Tilt Range | 70° |
| Rotation Range | 360° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom |
| Video Compression | H.265, H.264, MJPEG |
|---|---|
| Maximum Frame Rate | 20 fps @ 2560×1920 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 61 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Audio Capability | One-way Audio |
|---|---|
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Users | Live viewing for up to 10 clients |
|---|---|
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Video Motion Detection | Five-window video motion detection |
|---|---|
| VADP Package | Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
|---|---|
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card |
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection |
|---|---|
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 9.8 W/6.29 W (IR on/off) |
| Dimensions | Ø 120 x 90.5 mm |
| Weight | 625 g |
| Certifications | EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252) |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 90% |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
|---|---|
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
|---|
