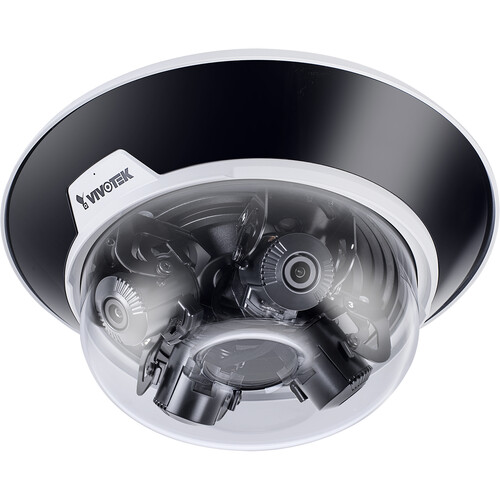

Vivotek MA9322-EHTVL Multi-Sensor Adjustable Dome Camera, 20MP, Adjustable Views, 3.7~7.7mm, 30M IR, WDR Pro, Supreme Night Visibility

High Quality Unlimited Coverage
Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.

360° Extreme Low Light Visibility
By adding IR illumination up to 30 meters, no matter day or night, light or dark, it always provides complete video security. Further, in addition to SNV technology, areas of low light visibility are no longer an issue either.

Comprehensive Video Coverage from a Single Mount Point
The MA9322-EHTVL captures every angle for comprehensive video coverage from a single IP address, helping to reduce the amount of cameras needed and saving on installation time and costs.

Vivotek MA9322-EHTVL Multi-Sensor camera is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.

• Multimedia SoC CPU
• Removable IR cut filter enables day and night functionality
• Supreme Night Visibility (SNV) for low-light conditions
• Smart IR technology
• H.265, H.264, and MJPEG video compressions
• Dual streaming per channel
• Two-axis angle adjustments per lens (0 to 105° vertical pivot, ±90° rotation range)
• Image settings include video title and time stamp overlay, video orientation (flip, mirror), day/night settings, illuminators, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control), AE speed adjustment, WDR, privacy masking, and scheduled profile settings
• Built-in microphone with an audio pickup range up to 16′
• Five-window video motion detection
• Additional features include: WDR Pro (120 dB), 60.4 dB S/N ratio, ePTZ that provides 48x digital zoom, live viewing for up to 20 clients, system power and status LED indicators, and seamless recording to microSD/SDHC/SDXC card and NAS
• Compatible with Microsoft Windows 10, 8, and 7, Mac 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, and VLC 1.1.11 or above



Technical Specifications

System Information
Model	MA9322-EHTVL
CPU	Multimedia SoC (System-on-Chip)
Flash	1 GB
RAM	4 GB
Camera Features
Image Sensor	1/2.7″ Progressive CMOS
Max. Resolution	2688×1920 (5MP) x 4
Lens Type	Motorized, Vari-Focal, Remote Focus
Focal Length	f = 3.7 ~ 7.7 mm
Aperture	F1.9 ~ F2.9
Iris Type	Fixed-iris
Field of View	88.6° ~ 40.1° (Horizontal) 61.2° ~ 28.6° (Vertical) 115.5° ~ 49.5° (Diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Pro
Day/Night	Yes
Removable IR-cut Filter	Yes
IR Illuminators	Built-in IR illuminators, effective up to 30 meters with Smart IR
Minimum Illumination	0.035 lux @ F1.9 (Color) 0.005 lux @ F1.9 (B/W) 0 lux with IR Illuminators on
Tilt Range	0° ~ 105° each lens
Rotation Range	±90° each lens
Pan/Tilt/Zoom Functionalities	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording	MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids	Remote Focus, Remote Zoom
Video
Video Compression	H.265, H.264, MJPEG
Maximum Frame Rate	12 fps @ (2688×1920) x 4 30 fps @ (2560×1440) x 4
Maximum Streams	2 simultaneous streams* per channel; max total 13 profiles * Stream 1: 2688×1920, 2560×1920, 2160×1536, 2048×1536, 1680×1200, 1600×1200, 1344×960, 1280×960, 672×480, 640×480 * Stream 2: 1280×960, 672×480, 640×480
S/N Ratio	60.4 dB
Dynamic Range	120 dB
Video Streaming	Adjustable resolution, quality and constant bit rate control
Image Settings	General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings Illuminators: illuminators, anti-overexposure Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control), AE speed adjustment, WDR Privacy mask Scheduled profile settings
Audio
Audio Capability	Two-way Audio (full duplex)
Audio Compression	G.711, G.726
Audio Interface	Built-in microphone External microphone input* External line output*
Effective Range	5 meters
* Requires AO-006 cable
Network
Users	Live viewing for up to 20 clients
Security	Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, user access log, user account management
Protocols	802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface	10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
Solution Integration
Video Motion Detection	Five-window video motion detection
Alarm and Event	Event Trigger: Audio detection*, camera tampering detection, digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot Event Action: Event notification via audio clip*, camera link, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card * Requires AO-006 cable
General
Connectors	RJ-45 cable connector for 10/100/1000 Mbps PoE network connection Audio input* Audio output* AC 24V power input* Digital input* Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)* * Requires AO-006 cable.
LED Indicator	System power and status indicator
Power Input	AC 24V IEEE 802.3 at PoE
Power Consumption	AC: Max. 25 W PoE: Max. 25 W
Dimensions	Ø 267×114 mm (main body) Ø 275×118 mm (w/ bracket)
Weight	2.7 kg
Certifications	EMC: CE (EN55032 Class A, EN55024), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); UKCA, ICES-003 issue 7; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)
Operating Temperature	Start Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Working temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Humidity	90%
System Requirements	Operating System: Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) Web Browser: Chrome 58.0 or above Internet Explorer 10/11 Other Players: VLC: 1.1.11 or above
Included Accessories	Packing Contents: Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack
DORI (EN 62676-4 Standard)
Detect (25PPM/ 8PPF)	Wide: 74.0 m (242.8 ft) Tele: 153.9 m (505.0 ft)
Observe (63PPM/ 19PPF)	Wide: 29.3 m (96.1 ft) Tele: 61.1 m (200.4 ft)
Recognize (125PPM/ 38PPF)	Wide: 14.8 m (48.6 ft) Tele: 30.8 m (101.0 ft)
Identify (250PPM/ 76PPF)	Wide: 7.4 m (24.3 ft) Tele: 15.4 m (50.5 ft)
