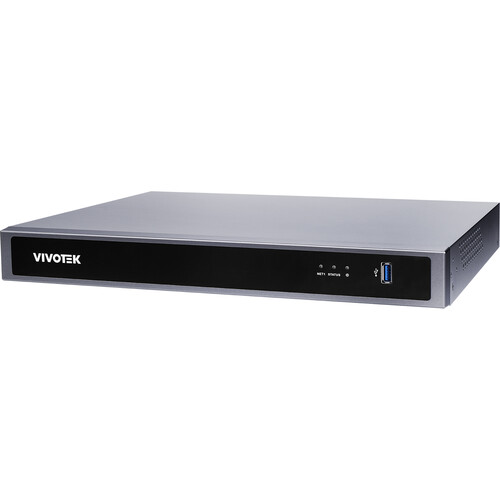

Vivotek ND9326P H.265, 8CH, 1 HDMI+1 VGA, 1080P @ 480 fps, 4K display, 8 PoE 802.3at/af 120W

Next Generation NVR Firmware: Core+AI
Core+ AI firmware take Core+ up a level. Core+ AI NVR’s are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search’s AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.

Deep Search

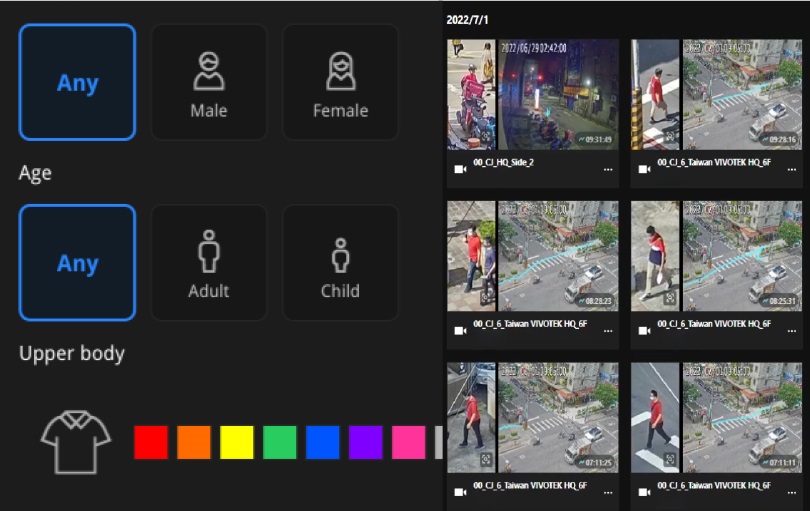

Attribute Search uses people and vehicles as search criteria utilizing multiple attributes (e.g., gender, age group, clothing or car color, vehicle type, etc.) to quickly and accurately find the person / vehicle of interest.

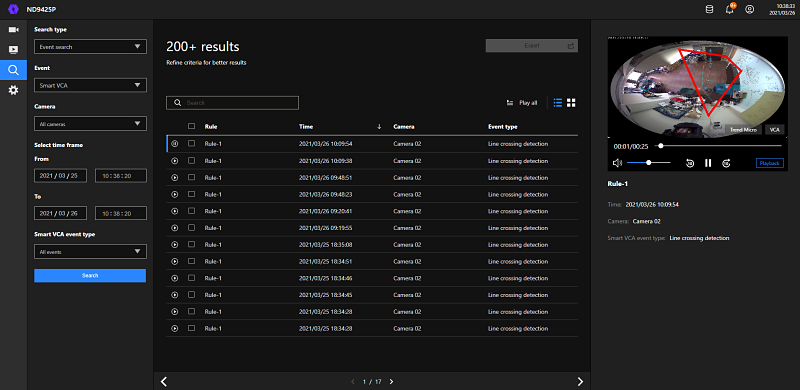

Smart VCA Event Search
it supports alarm management and event search of VIVOTEK’s deep-learning video analytics technology, Smart VCA. Users can search by single or multiple event types, playback triggered events and then export these search results to video clips. *Requires Smart VCA enabled cameras

4K IP Camera Video Input and 4K Local Video Output
Supporting 4K IP camera video input and 4K local video output, it can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording.

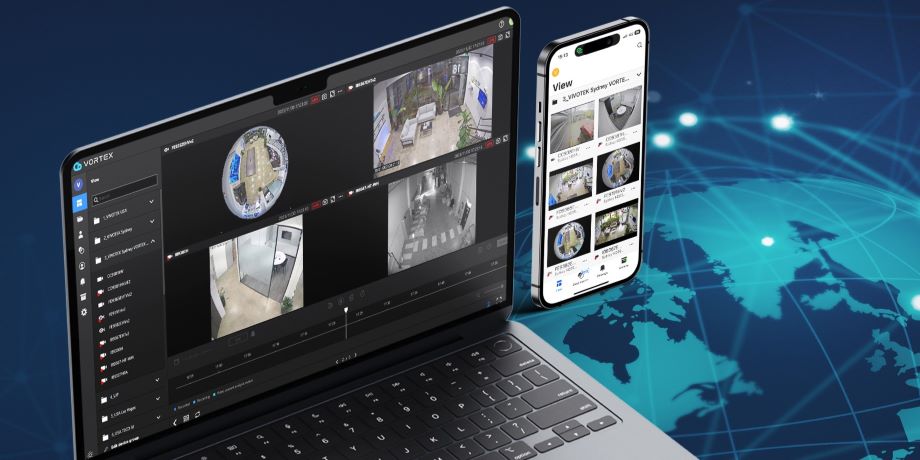

24/7 Monitoring Convenience through VORTEX
VORTEX makes surveillance lightweight and portable, ensuring efficient operation. This cloud cross-platform makes surveillance even more convenient, users can view live streams, play recorded clips at any time, anywhere. Equipped with the Push Notification function, users receive immediate alert messages on their Android/iOS mobile devices and can directly playback the video to inspect any suspicious activity.

This NVR features HDMI and VGA ports, along with an audio input and output. Remote management is possible thanks to the iViewer app for iOS and Android. Compliance with ONVIF profile S enables interoperability with ONVIF cameras.

• Embedded Linux OS
• Recording modes include: continuous, schedule, manual, and event
• 8 x PoE ports
• 4K UHD video output via HDMI
• Watermark support
• Fisheye dewarping
• PTZ operation includes: direction control, home, iris, preset, patrol (group), and PiP control
• Compatible with Internet Explorer 10 or later, Chrome 68.0.3 or later, iViewer, VIVOCloud, Shepherd, and VAST 2
• HDD S.M.A.R.T disk management
• Watchdog hardware and software
• Power restoration restarts the system automatically after power recovery



Technical Specifications

Device
Model	ND9326P
OS	Embedded Linux
Watchdog	Hardware + Software
Power Restoration	System Restart Automatically after Power Recovery
Display
LiveView Display	8 Channels
Multi Layout Display	1×1, 2×2, 3×3, 1M+5, 1P+3, 1P+6, 2P+3, 3V
Video Output	HDMI x1, VGA x1
Display Resolution	3840×2160, 1920×1080, 1280×720
Stream Application	Constant/Auto Adaptive Stream
Fisheye Dewarp	Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R Web: 1O, 1R, 1P
PTZ Operation	Direction Control, Home, Iris, Preset, Patrol (Group)
Video
Video Format	MJPEG, H.264, H.265
Graphic Decoder	Hardware decoding
Decoding Resolution	Up to 7680×2560
Decoding Capability	H.265/H.264: 3840×2160 @ 120 fps 1920×1080 @ 480 fps
Audio
Audio Format	G.711, G.726, MPEG-2 AAC-LC
Audio In/Out	3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1
Record
Recording Time (sec.)	Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300)
Recording Stream	Dual
Recording Throughput	192 Mbps
Recording Mode	Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting	Recycle (unit: Day)
Watermark	Supported
Seamless Recording	Supported
Storage & Backup
DISK Devices	Internal x2 (3.5″) (HDD is purchased separately)
HDD Max. Capacity	Please refer to HDD supported list on VIVOTEK website
RAID	RAID 0,1
Disk Management	Create, Format and Remove Disk
HDD S.M.A.R.T	Supported
External Storage	USB Storage (USB 3.0)
Video Clip Export	USB Dongle (FAT Format)
Schedule Backup	FTP
Playback
Playback Display	4 Channels Multi Layout Display: 1×1, 2×2, 1P+3, 3V
Playback Control	Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
Video Search	By Calendar, Date/Time, and Alarm
Thumbnail Explorer (Storyboard)	Listing the thumbnail of recorded video (Max. 2 CH)
Snapshot	JPEG
Video Clip Export	EXE
Network
Ethernet	10/100/1000Mbps Ethernet (RJ-45) x2
Network Throughput in total	224 Mbps
PoE	802.3at/af compliant PoE ports x 8 (total Max. 120W) * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
PoE Management	Supported
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
External Interface	USB Front x1 (USB 3.0) Back x2 (USB 2.0)
Alarm In	4
Alarm Out	1
Audio	3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input x1 (reserved)
System
Camera Integration	ONVIF Profile S
Event	Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss
Event Action	Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service
User Management	User level: administrator, regular user
Log	System, Recording, User, Error
Date & Time	Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language	Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
Deep Search	Object Search: People, Vehicle Scene Search: Line crossing, Intrusion, Loitering Attribute Search: People: Gender, Age, Clothing Color, Accessories Vehicles: Type, Color
Advanced Features
VCA Counting Solution	Supported
VCA Event Search	Smart VCA, Smart 360 VCA
Smart Search II	Supported
Trend Micro IoT Security	Supported
Cybersecurity Management	Supported
Remote Client
Software AP	Shepherd, VSS (VAST Security Station)
Mobile/Tablet App	iViewer (Android & iOS)
Web Browser	Chrome
Cloud Service	VORTEX Connect
General
Power Input	100-240V AC, 50/60Hz
Power Consumption	Max. 190 W
Dimensions	365 (W) x 315 (D) x 44 (H) mm
Weight	2.65 kg
Operating Temperature	-10°C ~ 55°C (14°F ~ 131°F)
Humidity	0 ~ 95%
Safety Certifications	CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
