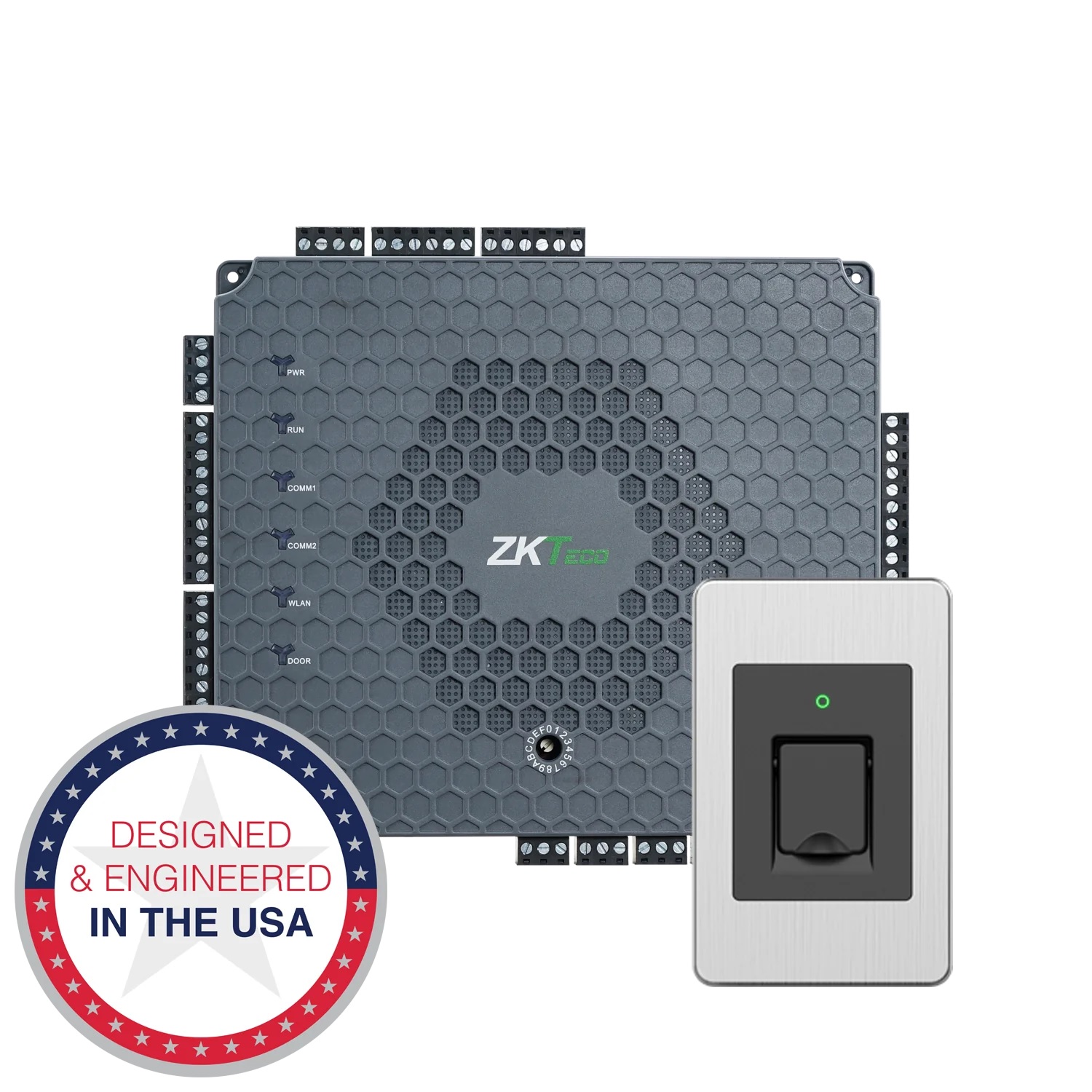

ZKTeco ATLAS 260 WIFI 2-Door Network Controller WiFi Panel
The ZKTeco Atlas-260 is a 2-door biometric access control panel designed to streamline security management. It features a built-in web application, eliminating the need for external management software. The panel supports various third-party readers that communicate via Wiegand, RS485, or OSDP protocols, offering flexibility in reader selection. Additionally, it is compatible with ZKTeco’s FR1500A fingerprint readers, enhancing biometric security options. This makes it a versatile solution for organizations looking to enhance their access control systems.
ZKTeco ATLAS 260 WIFI Technical Specifications:
| Number of Readers Supported |
4 (Fingerprint Readers), 4 (Wiegand or OSDP Readers) |
| Types of Readers Supported |
ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP, and RS485 readers |
| Number of Inputs |
6 (2 Exit Devices, 2 Door Contacts, and 2 Aux) |
| Number of Outputs |
3 (2 Form C relays for lock and 1 Form C relay for Aux output) |
| User Capacity |
5000 (Fingerprint and/or card users) |
| Fingerprint Template Capacity |
5000 (up to 10 fingerprints per user) |
| Logs |
10,000 transactions plus unlimited archive downloads |
| Weight |
3.8kg (9lbs) |
| Communication |
OSDP, TCP/IP, Wi-Fi, Wiegand |
| Browsers Supported |
Chrome, Edge, Firefox |
| Enclosure |
Powder Coated Aluminium |
| Mounting |
Wall Mount |
| Recommended Power Supply |
12V DC, 3A (PoE) |
| Dimensions (Bundle Only) |
380×80×280mm (15×3.15×11in) (l×w×h) |
| Dimensions (Board Only) |
197×171mm (7.75×6.73in) |
ZKTeco FR1500S-A[MF] Fingerprint and Card Reader
The ZKTeco FR1500S is a waterproof fingerprint and EM card reader designed for secure access control and time attendance systems. Equipped with a Silk ID fingerprint sensor and a 125KHz RFID card reader, it offers versatile biometric and RFID verification options. Its RS485 communication interface ensures seamless integration with inBio/inBioPro controllers and standalone fingerprint devices. The device’s stainless steel front casing and flush-mounted design provide durability and a sleek appearance. With an IP65 protection rating, the FR1500S is fully dust-tight and resistant to water splashes, making it suitable for outdoor installations.
ZKTeco FR1500S Technical Specifications:
| Power Supply |
DC 12V |
| Communication |
RS485 |
| Algorithm |
ZKFinger V10.0 |
| Working Temperature |
-10°C to 45°C |
| Working Humidity |
20% to 95% (Non-condensing) |
| Dimensions (L*W*H) |
121.3*77.3*38mm |
| Hardware |
CPU of 1.0GHz |
| Sensor |
ZKSilkID Sensor |
| Voice Prompt |
Buzzer |
| LED Indicator |
Three-color Indicator |
| Compatibility |
inBio/inBioPro Controllers, Standalone Fingerprint Devices |
| Standard Features |
125KHz RFID Card |
| Optional Features |
125KHz HID Prox Card, 13.56MHz HID Iclass Card, 13.56MHz IC Card (S50 / S70) |
| Peak Current of Fingerprint Scanning |
140mA |
| Power Consumption (Stand-by Mode) |
12V*60mA=0.72W |
ZKTeco SLK20R Fingerprint Enroller Sensor
The ZKTeco ZK-SLK20R is an advanced fingerprint scanner developed by ZKTeco’s USA laboratory, featuring a sophisticated optical design. Equipped with a 2-megapixel CMOS camera, it excels in live fingerprint detection and captures high-quality images, making it an ideal choice for desktop enrollment and identification applications. The device operates reliably under strong light conditions and supports anti-fake fingerprint functionality, enhancing security measures. Its large fingerprint capture area and high image performance ensure accurate and efficient recognition. The SLK20R is compatible with various operating systems, including Windows XP/Vista/7/8/10 (32/64 bit) and Android.
ZKTeco ZK-SLK20R Fingerprint Sensor Technical Specifications:
| Material |
Optical |
| CPU |
280MHz DSP |
| Flash |
32 MB |
| SoC |
RTOS (image out only) |
| Image Quality |
2 million pixels CMOS |
| Encrypted Fingerprint Data |
Yes |
| Sunlight Operation |
Dark field and Automatic Gain / Exposure, Yes |
| Water Splash Proof |
YES |
| Live Fingerprint Detection |
Yes |
| Dry, Wet, or Rough Fingerprints |
Work well |
| Power Consumption |
5V:200mA Scanning; 5V:60mA idle (waiting for finger) |
| LED |
White |
| Product Certifications |
CE, PIV, RoHS, FCC |
| Power Voltage |
5V (USB) |
| Power/Current |
200mA |
| Communication |
USB 2.0 / USB 1.1 |
| Interface Socket |
USB Type A |
| Image Resolution |
500 dpi |
| Effective Collecting Area |
15.24 × 20.32mm (FAP20) |
| Collecting Area |
16.5 × 23mm |
| Image Size |
300 × 400 pixels (FAP20) |
| Dimension |
49 × 44 × 20.1mm (L × W × H) |
| Image Format |
BMP, JPG, RAW |
| Template |
ZKFinger V10.0; ISO19794-2; ANSI-378 |
| Template Size |
1-4KB (ZKFinger V10.0); 1568 B (ISO 19794-2) |
| Gray Level |
256 |
| Weight |
0.12kg |
| Operating Environment |
-20°C ~ +50°C; 90% r.h. |
