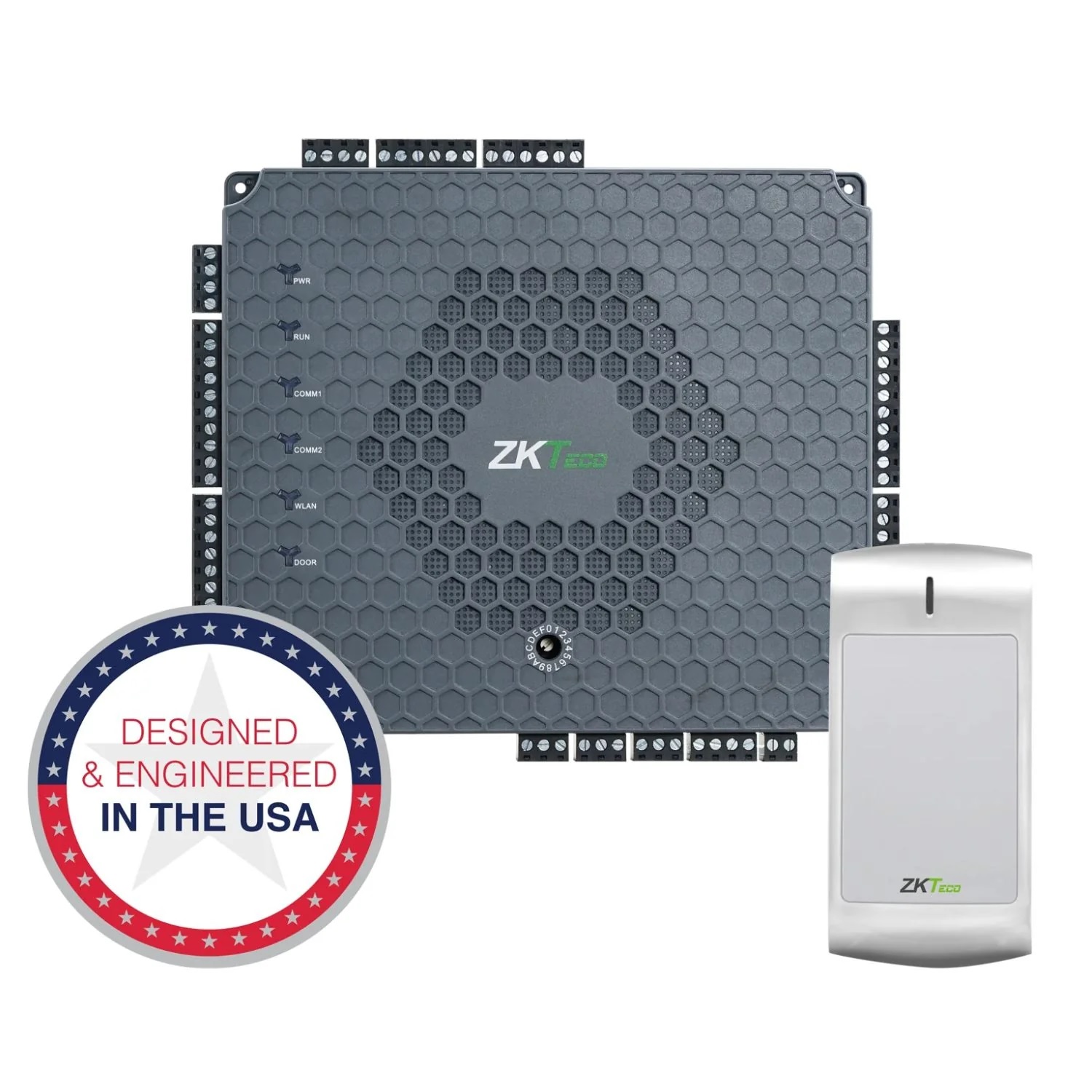

ZKTeco ATLAS 260 WIFI 2-Door Network Controller WiFi Panel
TheĀ ZKTeco ATLAS 260Ā is a sophisticated 2-door biometric access control panel equipped with a built-in web application, eliminating the necessity for additional management software. It supports various third-party readers communicating via Wiegand, RS485, or OSDP protocols, offering flexibility in reader integration. Advanced access control features include user enrollment and management, door control and monitoring, lockdown capabilities, reporting, mapping, anti-passback, first-card opening, multi-card opening, card design, and duress PINs. The system can store up to 5,000 users (including fingerprint templates and/or cards) and log 10,000 transactions, with the capacity to support up to 84 doors when utilizing one primary panel and 20 secondary panels.
For communication, theĀ ATLAS 260Ā utilizes secure wired and wireless TCP/IP networks with SSL/TLS encryption, and is compatible with browsers such as Google Chrome, Mozilla Firefox, and Microsoft Edge. User-programmable auxiliary relays enable control over external devices like lights, alarms, and intrusion detection panels. The panel operates on a 12V DC, 3A power supply and supports Power over Ethernet (PoE), simplifying installation and reducing cabling requirements. Additionally, a mobile app provides features like remote door unlocking, universal lockdown and recovery, event and alarm access, and user management, enhancing the systemās versatility and user-friendliness.
ZKTeco ATLAS 260 WIFI Technical Specifications:
| Number of Readers Supported |
4 (Fingerprint Readers), 4 (Wiegand or OSDP Readers) |
| Types of Readers Supported |
ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP, and RS485 readers |
| Number of Inputs |
6 (2 Exit Devices, 2 Door Contacts, and 2 Aux) |
| Number of Outputs |
3 (2 Form C relays for lock and 1 Form C relay for Aux output) |
| User Capacity |
5000 (Fingerprint and/or card users) |
| Fingerprint Template Capacity |
5000 (up to 10 fingerprints per user) |
| Logs |
10,000 transactions plus unlimited archive downloads |
| Weight |
3.8kg (9lbs) |
| Communication |
OSDP, TCP/IP, Wi-Fi, Wiegand |
| Browsers Supported |
Chrome, Edge, Firefox |
| Enclosure |
Powder Coated Aluminium |
| Mounting |
Wall Mount |
| Recommended Power Supply |
12V DC, 3A (PoE) |
| Dimensions (Bundle Only) |
380Ć80Ć280mm (15Ć3.15Ć11in) (lĆwĆh) |
| Dimensions (Board Only) |
197Ć171mm (7.75Ć6.73in) |
ZKTeco MR1010 Metal Reader Outdoor
TheĀ ZKTeco MR1010Ā is a robust RFID card reader designed for outdoor access control applications. Its metal casing provides IK10-rated vandal resistance, ensuring durability against physical impacts. With an IP66 rating, the MR1010 is both waterproof and dustproof, making it suitable for harsh environmental conditions. The device supports 125kHz EM cards and offers a reading distance of 2 to 6 centimeters. Operating within a voltage range of 9 to 24V DC, it functions reliably in temperatures from -40Ā°C to 60Ā°C.
Measuring 105mm in height, 49mm in width, and 21mm in depth, theĀ MR1010ās compact design facilitates easy installation. It outputs Wiegand signals in 26 or 34 bits, ensuring compatibility with various access control systems. The deviceās operating humidity ranges from 20% to 80%, accommodating diverse climatic conditions. Weighing 240 grams, the MR1010 is lightweight yet sturdy, suitable for environments requiring secure and efficient entry management.
ZKTeco MR1010 Technical Specifications:
| Model |
MR1010 / MR1020 |
| Power Supply |
9 ā 24V DC |
| Operating Current |
ā¤ 50mA |
| Card Frequency |
125KHz & 13.56MHz |
| Card Type |
EM card, S50, S70 |
| Card Reading Distance |
2 ~ 6cm |
| Dimension |
105 * 49 * 21 (mm) (W*H*D) |
| Wiegand Output |
26 / 34bits |
| Weight |
240g |
| Weight of the Device with Packaging |
270g |
| Ingress Protection Rating |
IK10 & IP66 |
| Operating Temperature |
ā 40Ā°C ~ 60Ā°C |
| Operating Humidity |
20% ~ 80% |
