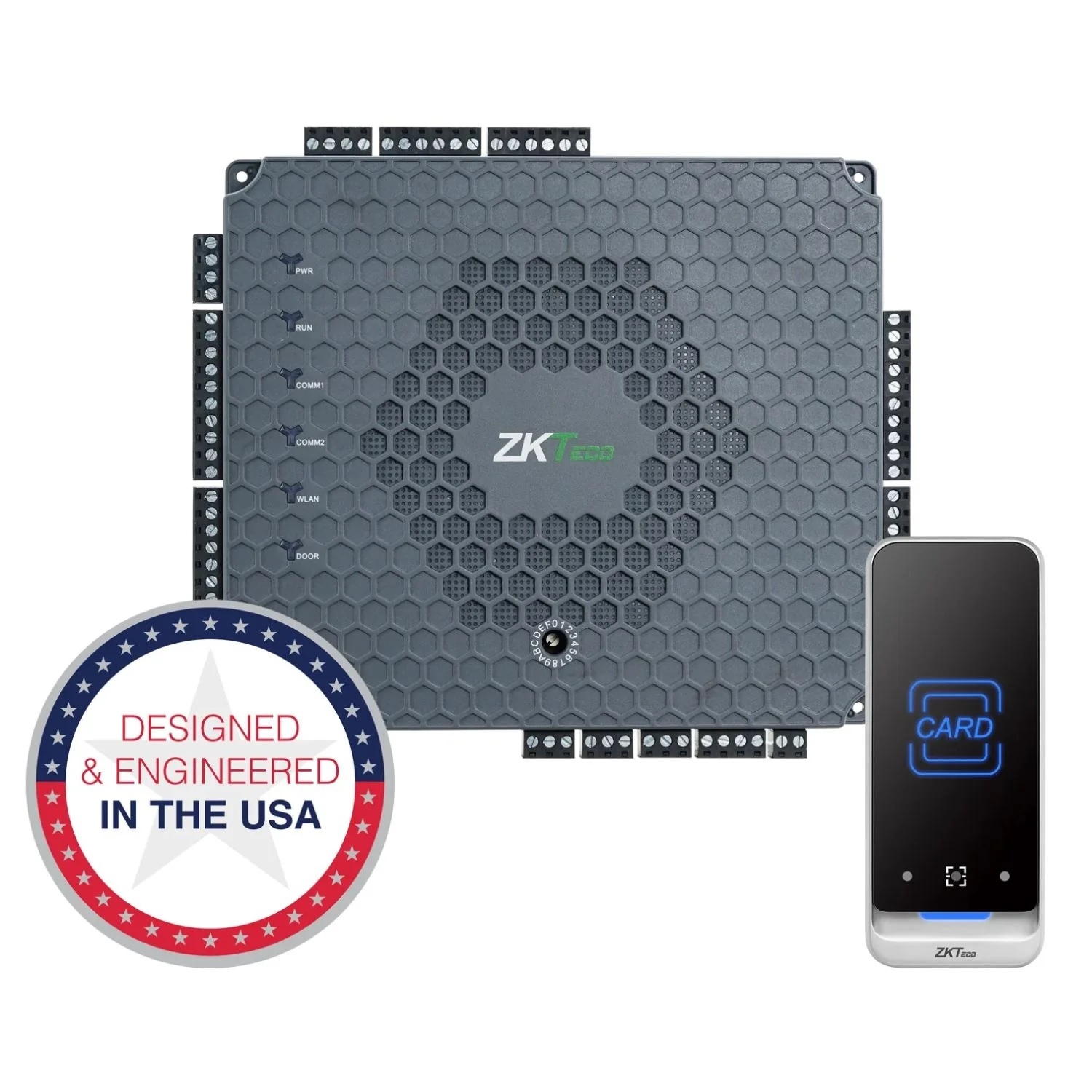

ZKTeco ATLAS-1QR600V260 Atlas Kit

ZKTeco ATLAS 260 WIFI 2-Door Network Controller WiFi Panel
The ZKTeco ATLAS 260 is a sophisticated 2-door biometric access control panel equipped with a built-in web application, eliminating the necessity for additional management software. It supports various third-party readers communicating via Wiegand, RS485, or OSDP protocols, offering flexibility in reader integration. Advanced access control features include user enrollment and management, door control and monitoring, lockdown capabilities, reporting, mapping, anti-passback, first-card opening, multi-card opening, card design, and duress PINs. The system can store up to 5,000 users (including fingerprint templates and/or cards) and log 10,000 transactions, with the capacity to support up to 84 doors when utilizing one primary panel and 20 secondary panels.

For communication, the ATLAS 260 utilizes secure wired and wireless TCP/IP networks with SSL/TLS encryption, and is compatible with browsers such as Google Chrome, Mozilla Firefox, and Microsoft Edge. User-programmable auxiliary relays enable control over external devices like lights, alarms, and intrusion detection panels. The panel operates on a 12V DC, 3A power supply and supports Power over Ethernet (PoE), simplifying installation and reducing cabling requirements. Additionally, a mobile app provides features like remote door unlocking, universal lockdown and recovery, event and alarm access, and user management, enhancing the system’s versatility and user-friendliness.

ZKTeco ATLAS 260 WIFI Technical Specifications:

Number of Readers Supported	4 (Fingerprint Readers), 4 (Wiegand or OSDP Readers)
Types of Readers Supported	ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP, and RS485 readers
Number of Inputs	6 (2 Exit Devices, 2 Door Contacts, and 2 Aux)
Number of Outputs	3 (2 Form C relays for lock and 1 Form C relay for Aux output)
User Capacity	5000 (Fingerprint and/or card users)
Fingerprint Template Capacity	5000 (up to 10 fingerprints per user)
Logs	10,000 transactions plus unlimited archive downloads
Weight	3.8kg (9lbs)
Communication	OSDP, TCP/IP, Wi-Fi, Wiegand
Browsers Supported	Chrome, Edge, Firefox
Enclosure	Powder Coated Aluminium
Mounting	Wall Mount
Recommended Power Supply	12V DC, 3A (PoE)
Dimensions (Bundle Only)	380×80×280mm (15×3.15×11in) (l×w×h)
Dimensions (Board Only)	197×171mm (7.75×6.73in)



ZKTeco QR600-V QR Code Reader and Card Reader
The ZKTeco QR600-V is a robust QR code and RFID card reader designed for secure access control applications. Constructed with a metal casing, it boasts an IP65 rating, ensuring resistance to water and dust, making it suitable for both indoor and outdoor installations. The device supports dynamic QR code recognition, enhancing flexibility in various security scenarios. Its sleek and durable design makes it ideal for high-traffic environments. The QR600-V is widely used in office buildings, residential complexes, and transportation hubs.

Equipped with both Wiegand and RS485 communication interfaces, the QR600-V offers seamless integration into existing security systems. It is capable of reading multiple QR code formats, including Data Matrix, PDF417, and GS1 Databar, as well as standard barcodes like Code 128 and UPC/EAN. Additionally, the reader supports 125kHz ID cards and 13.56MHz IC cards, such as Mifare and NFC, providing versatile authentication options. This broad compatibility ensures that the device can be used across various industries and security setups. Its advanced scanning technology enables quick and accurate code recognition.

The QR600-V is part of the QR600 Series, which includes models with different configurations to meet diverse requirements. While the QR600-V features a vertical layout without a keypad, other models like the QR600-VK include a keypad for additional input capabilities. This range of options allows organizations to select the most appropriate model based on their specific access control needs. Its user-friendly design and efficient scanning speed contribute to a streamlined entry process. The ZKTeco QR600-V is an excellent choice for businesses looking to enhance their security with modern authentication solutions.

ZKTeco QR600-V Technical Specifications:

Model	QR600-HK / QR600-H / QR600-VK / QR600-V
QR Sensor	QR, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128, UPC / EAN, Codabar, Code 39 / Code 93 etc.
RFID	125kHz ID cards / 13.56MHz IC Cards
Reading Distance	QR Code ≥ 5cm; RFID Card ≥ 4cm
Communication	Wiegand & RS485
Ingress Protection Rating	IP65
Power Supply	DC 12V (±5%)
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 80°C
Operating Humidity	20% to 80% (assuming the working environment temp. is 25°C)
Dimension	QR600-HK / QR600-H: 120 * 80 * 16 (mm) (L*W*H) QR600-VK / QR600-V: 138 * 58 * 16 (mm) (L*W*H)
