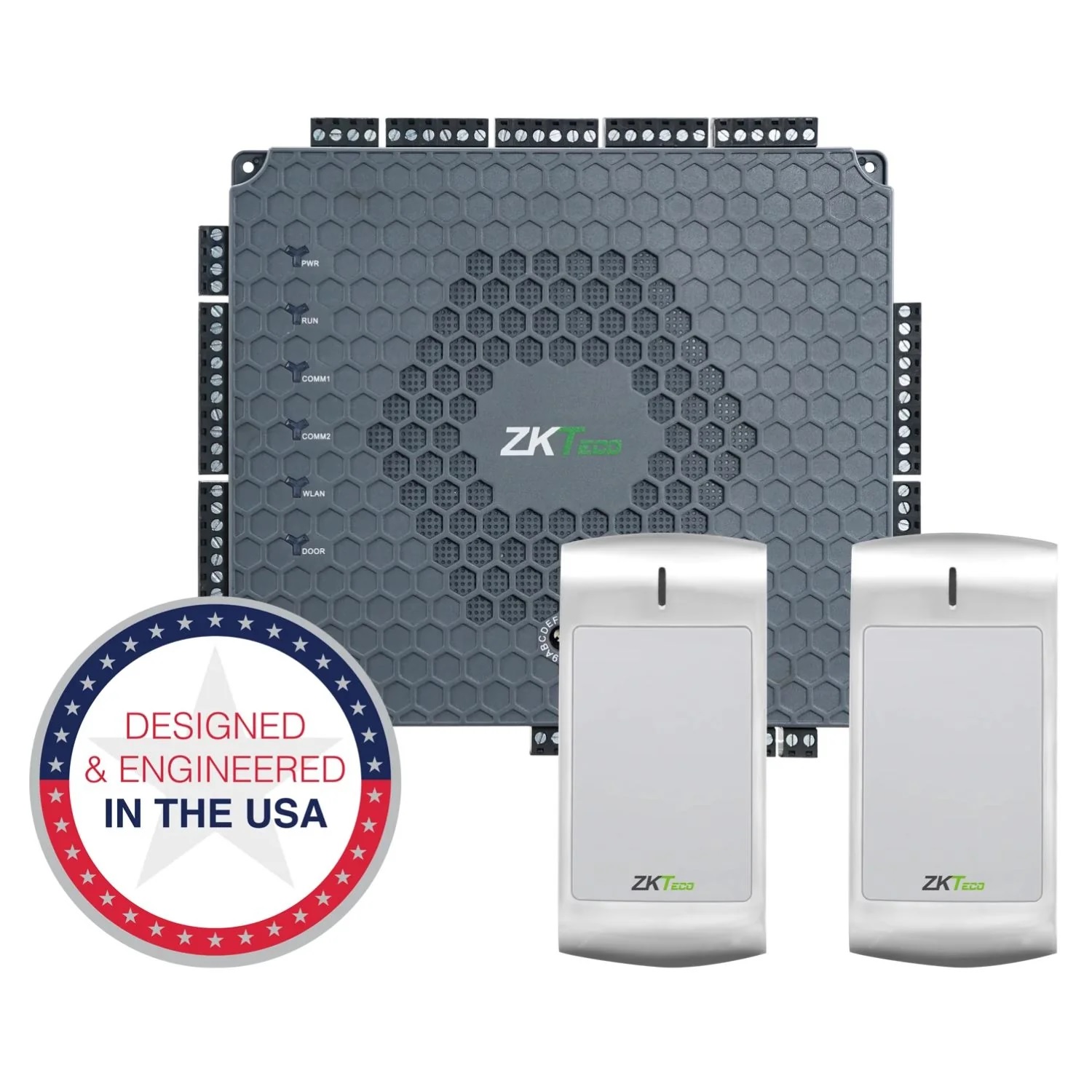

ZKTeco ATLAS 460 WIFI 4-Door Network Controller WiFi Panel
TheĀ ZKTeco Atlas-460Ā is a sophisticated 4-door biometric access control panel designed to streamline security management. Featuring a built-in web application, it eliminates the necessity for external management software, simplifying user enrollment, door monitoring, and reporting. The system supports various advanced access control functionalities, including lockdown protocols, anti-passback, first-card opening, multi-card opening, card design, and duress PINs. This comprehensive suite of features ensures robust and flexible security solutions for diverse organizational needs. It is an ideal choice for businesses seeking an efficient and scalable security solution.
In terms of compatibility, theĀ Atlas-460Ā supports ZKTeco FR1500A fingerprint readers and can integrate with third-party readers using Wiegand or OSDP communication protocols. This flexibility allows organizations to tailor their access control systems to specific requirements. The panelās user-programmable auxiliary relays can manage external devices such as lights, alarms, and additional locking mechanisms, enhancing overall security infrastructure. With a capacity to store up to 5,000 users and 10,000 transactions, the Atlas-460 is well-suited for both small and large-scale deployments. Its scalability makes it a valuable addition to businesses with growing security needs.
Communication is secured over wired and wireless TCP/IP networks utilizing SSL/TLS encryption, ensuring data protection. The system is compatible with browsers like Google Chrome, Mozilla Firefox, and Microsoft Edge, facilitating easy access and management. Additionally, a mobile app offers features such as remote door unlocking, universal lockdown and recovery, event and alarm monitoring, and user management, providing administrators with convenient control. TheĀ Atlas-460Ā operates on a 12V DC 3A power supply and supports Power over Ethernet (PoE), offering flexible installation options. These features make it a powerful and user-friendly access control solution for modern security demands.
ZKTeco ATLAS 460 WIFI Technical Specifications:
| Number of Doors Controlled |
4 Doors |
| Number of Readers Supported |
8 (Fingerprint Readers), 8 (Wiegand or OSDP Readers) |
| Types of Readers Supported |
ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS485 readers |
| Number of Inputs |
10 (4 Exit Devices, 4 Door Contacts and 2 Aux) |
| Number of Outputs |
5 (4 Form C relays for lock and 1 Form C relay for Aux output) |
| User Capacity |
5000 (Fingerprint and/or card users) |
| Fingerprint Template Capacity |
5000 (up to 10 fingerprints per user) |
| Logs |
10, 10000 transactions plus unlimited archive downloads |
| Weight |
3.8kg (9lbs) |
| Communication |
OSDP, TCP/IP, Wi-Fi, Wiegand |
| Browsers Supported |
Chrome, Edge, Firefox |
| Enclosure |
Powder Coated Aluminium |
| Mounting |
Wall Mount |
| Recommended Power Supply |
12V DC, 3A (PoE) |
| Dimensions (Bundle Only) |
380*80*280mm (15*3.15*11in (l*w*h)) |
| Dimensions (Board Only) |
197*171mm (7.75*6.73in) |
ZKTeco MR1010 Metal Reader Outdoor
TheĀ ZKTeco MR1010Ā is an advanced access control reader utilizing 125kHz RFID technology, designed to meet high-security requirements in various environments. Its robust metal casing ensures durability and resistance to tampering, making it suitable for both indoor and outdoor installations. The device offers a card reading distance of 2 to 6 centimeters, facilitating quick and efficient access for authorized personnel. With Wiegand outputs of 26 or 34 bits, the MR1010 seamlessly integrates with a wide range of access control systems. Its compact dimensions of 105 x 49 x 21 mm allow for versatile installation options without compromising on functionality.
Engineered to withstand harsh environmental conditions, theĀ MR1010Ā boasts an IP66 rating, ensuring protection against dust and powerful water jets. Additionally, its IK10 vandal-proof rating signifies high resistance to physical impact, enhancing the security and longevity of the device. The reader operates efficiently in temperatures ranging from -40Ā°C to +60Ā°C, making it reliable in extreme climates. Its operating humidity tolerance between 20% and 80% further underscores its adaptability to various environmental conditions. These features collectively make the MR1010 a dependable choice for securing access points in demanding settings.
TheĀ MR1010Ā supports EM cards, specifically S50 and S70 types, offering flexibility in credential management for organizations. Its low operating current of ā¤50mA ensures energy-efficient performance, contributing to reduced operational costs. The deviceās design emphasizes both functionality and aesthetics, blending seamlessly into different architectural styles while providing robust security features. Its metal casing not only enhances durability but also adds a sleek, professional appearance to any access point. Overall, the ZKTeco MR1010 stands out as a reliable and versatile solution for modern access control needs.
ZKTeco MR1010 Technical Specifications:
| Model |
MR1010 / MR1020 |
| Power Supply |
9 ā 24V DC |
| Operating Current |
ā¤ 50mA |
| Card Frequency |
125KHz & 13.56MHz |
| Card Type |
EM card, S50, S70 |
| Card Reading Distance |
2 ~ 6cm |
| Dimension |
105 * 49 * 21 (mm) (W*H*D) |
| Wiegand Output |
26 / 34bits |
| Weight |
240g |
| Weight of the Device with Packaging |
270g |
| Ingress Protection Rating |
IK10 & IP66 |
| Operating Temperature |
ā 40Ā°C ~ 60Ā°C |
| Operating Humidity |
20% ~ 80% |
