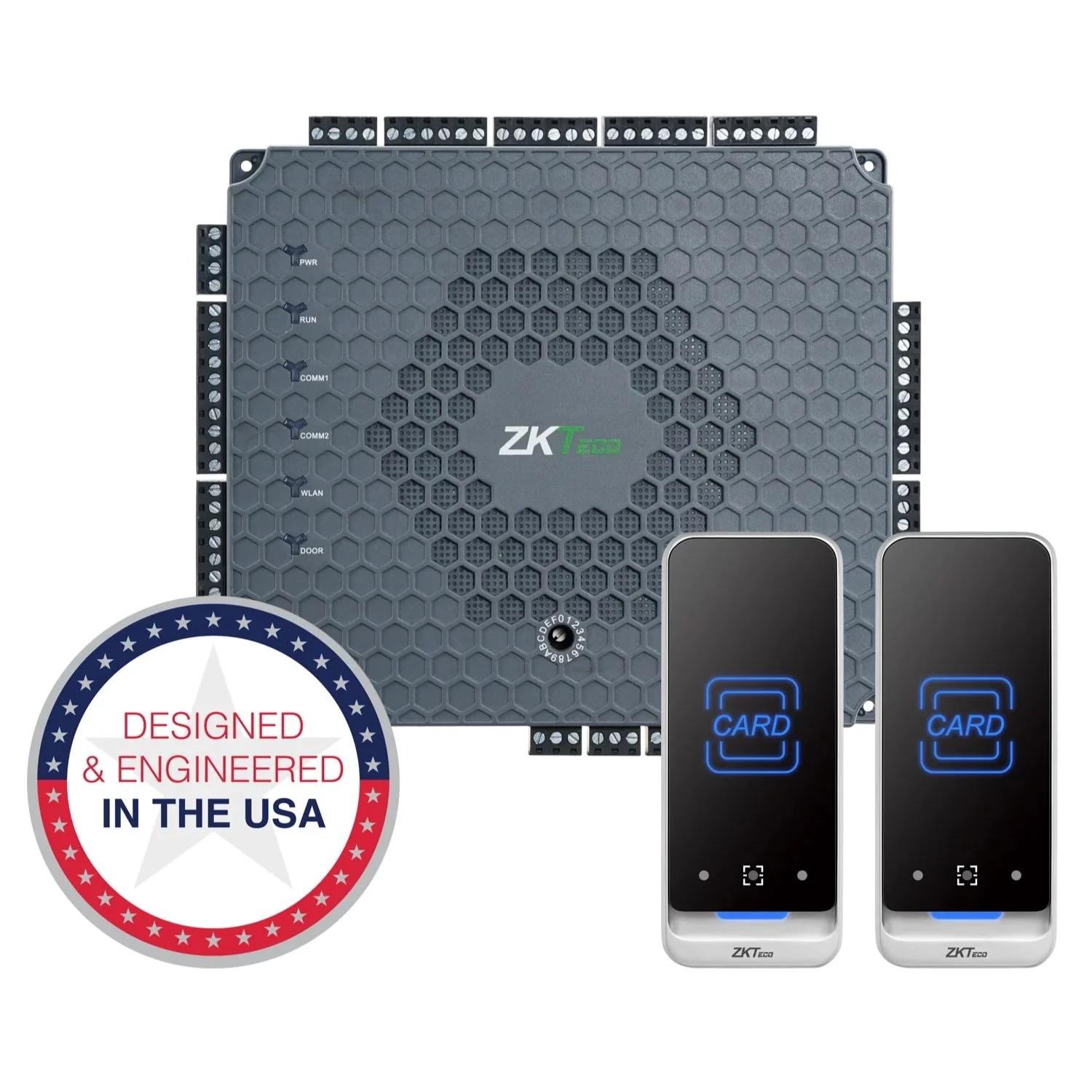

ZKTeco ATLAS 460 WIFI 4-Door Network Controller WiFi Panel
The ZKTeco Atlas-460 is a sophisticated 4-door biometric access control panel designed to streamline security management. Featuring a built-in web application, it eliminates the necessity for external management software, simplifying user enrollment, door monitoring, and reporting. The system supports various advanced access control functionalities, including lockdown protocols, anti-passback, first-card opening, multi-card opening, card design, and duress PINs. This comprehensive suite of features ensures robust and flexible security solutions for diverse organizational needs. It is an ideal choice for businesses seeking an efficient and scalable security solution.
In terms of compatibility, the Atlas-460 supports ZKTeco FR1500A fingerprint readers and can integrate with third-party readers using Wiegand or OSDP communication protocols. This flexibility allows organizations to tailor their access control systems to specific requirements. The panel’s user-programmable auxiliary relays can manage external devices such as lights, alarms, and additional locking mechanisms, enhancing overall security infrastructure. With a capacity to store up to 5,000 users and 10,000 transactions, the Atlas-460 is well-suited for both small and large-scale deployments. Its scalability makes it a valuable addition to businesses with growing security needs.
ZKTeco ATLAS 460 WIFI Technical Specifications:
| Number of Doors Controlled |
4 Doors |
| Number of Readers Supported |
8 (Fingerprint Readers), 8 (Wiegand or OSDP Readers) |
| Types of Readers Supported |
ZKTeco FR1500A fingerprint readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS485 readers |
| Number of Inputs |
10 (4 Exit Devices, 4 Door Contacts and 2 Aux) |
| Number of Outputs |
5 (4 Form C relays for lock and 1 Form C relay for Aux output) |
| User Capacity |
5000 (Fingerprint and/or card users) |
| Fingerprint Template Capacity |
5000 (up to 10 fingerprints per user) |
| Logs |
10, 10000 transactions plus unlimited archive downloads |
| Weight |
3.8kg (9lbs) |
| Communication |
OSDP, TCP/IP, Wi-Fi, Wiegand |
| Browsers Supported |
Chrome, Edge, Firefox |
| Enclosure |
Powder Coated Aluminium |
| Mounting |
Wall Mount |
| Recommended Power Supply |
12V DC, 3A (PoE) |
| Dimensions (Bundle Only) |
380*80*280mm (15*3.15*11in (l*w*h)) |
| Dimensions (Board Only) |
197*171mm (7.75*6.73in) |
ZKTeco QR600-V QR Code Reader and Card Reader
The ZKTeco QR600-V is a robust QR code and RFID card reader designed for secure access control applications. Constructed with a metal casing, it boasts an IP65 rating, ensuring resistance to water and dust, making it suitable for both indoor and outdoor installations. The device supports dynamic QR code recognition, enhancing flexibility in various security scenarios. Its sleek and durable design makes it ideal for high-traffic environments. The QR600-V is widely used in office buildings, residential complexes, and transportation hubs.
Equipped with both Wiegand and RS485 communication interfaces, the QR600-V offers seamless integration into existing security systems. It is capable of reading multiple QR code formats, including Data Matrix, PDF417, and GS1 Databar, as well as standard barcodes like Code 128 and UPC/EAN. Additionally, the reader supports 125kHz ID cards and 13.56MHz IC cards, such as Mifare and NFC, providing versatile authentication options. This broad compatibility ensures that the device can be used across various industries and security setups. Its advanced scanning technology enables quick and accurate code recognition.
ZKTeco QR600-V Technical Specifications:
| Model |
QR600-HK / QR600-H / QR600-VK / QR600-V |
| QR Sensor |
QR, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128, UPC / EAN, Codabar, Code 39 / Code 93 etc. |
| RFID |
125kHz ID cards / 13.56MHz IC Cards |
| Reading Distance |
QR Code ≥ 5cm; RFID Card ≥ 4cm |
| Communication |
Wiegand & RS485 |
| Ingress Protection Rating |
IP65 |
| Power Supply |
DC 12V (±5%) |
| Operating Temperature |
-20°C to 60°C |
| Storage Temperature |
-20°C to 80°C |
| Operating Humidity |
20% to 80% (assuming the working environment temp. is 25°C) |
| Dimension |
QR600-HK / QR600-H: 120 * 80 * 16 (mm) (L*W*H)
QR600-VK / QR600-V: 138 * 58 * 16 (mm) (L*W*H) |
