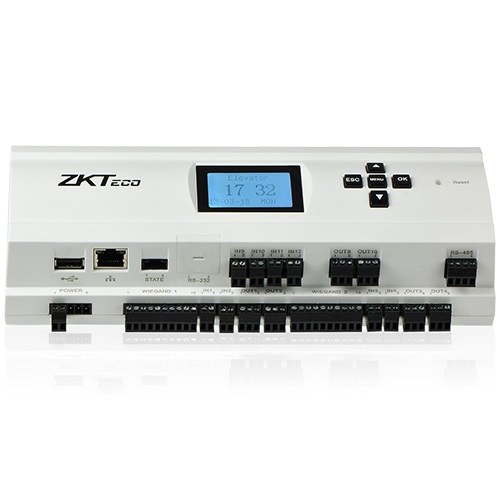

The ZKTeco EC10 Elevator Control Panel is a specialized device designed to enhance elevator security and access management. It allows for the restriction of access to up to ten floors based on various user credentials, including fingerprints, proximity cards, or passwords. This flexibility ensures that only authorized individuals can access specific floors, thereby enhancing building security. Additionally, the system supports pre-defined time schedules, enabling unrestricted floor access during designated periods, such as regular business hours, through its Passage mode feature.
To accommodate buildings with more than ten floors, the EC10 can be expanded using up to three EX16 Elevator Floor Extension Boards, each capable of controlling an additional sixteen floors. This configuration allows a single EC10 panel, combined with EX16 boards, to manage access to a total of fifty-eight floors. For even larger buildings, multiple EC10 panels can be daisy-chained together, providing a scalable solution that can control access to as many floors as required.
The EC10 boasts substantial storage capacities, accommodating up to 3,000 fingerprints, 30,000 RFID cards, and logging 100,000 events. It communicates with PCs via TCP/IP or RS485 interfaces and connects to EX16 boards through RS485. The system is managed using user-friendly software, and for developers aiming to integrate the EC10 into broader security systems, a Software Development Kit (SDK) is available.
ZKTeco EC10 Elevator Control Panel Features:
- Floor Access Control: Manages access to up to 10 floors per panel, with the ability to expand control to 58 floors by integrating up to three EX16 extension boards.
- Flexible Authentication Methods: Supports various user credentials, including fingerprint, proximity card, and password, enhancing security and versatility.
- Time-Based Access Scheduling: Allows pre-defined time schedules to control floor access, with the option for unrestricted access during specific periods (Passage mode).
- Scalability: Multiple EC10 panels can be daisy-chained to manage access across numerous floors, accommodating buildings of varying sizes.
- High Capacity: Supports up to 3,000 fingerprints, 30,000 RFID cards, and stores up to 100,000 event logs, ensuring robust user and event management.
- Reliable Communication: Utilizes TCP/IP and RS485 interfaces for communication with PCs, and RS485 for connecting to EX16 boards, ensuring seamless data transmission.
- Developer Support: Offers a Software Development Kit (SDK) for integration with third-party systems, providing flexibility for customized solutions.
These features make the EC10 Elevator Control Panel a versatile and reliable choice for enhancing elevator security and access management in various building environments.
ZKTeco EC10 Technical Specifications:
| Model |
EC10 |
| Floor Button Control Relay |
10 |
| Fingerprint Capacity |
3000 |
| RFID Card Capacity |
30000 |
| Event Capacity |
100000 |
| Power Supply |
12V DC 1A |
| Communication to PC |
TCP/IP, RS485 |
| Communication to EX16 |
RS485 |
| Number of supported EX16 |
3 |
| Dimension (L×D×H) |
242mm × 95mm × 60mm |
| Net weight |
0.8Kg |
