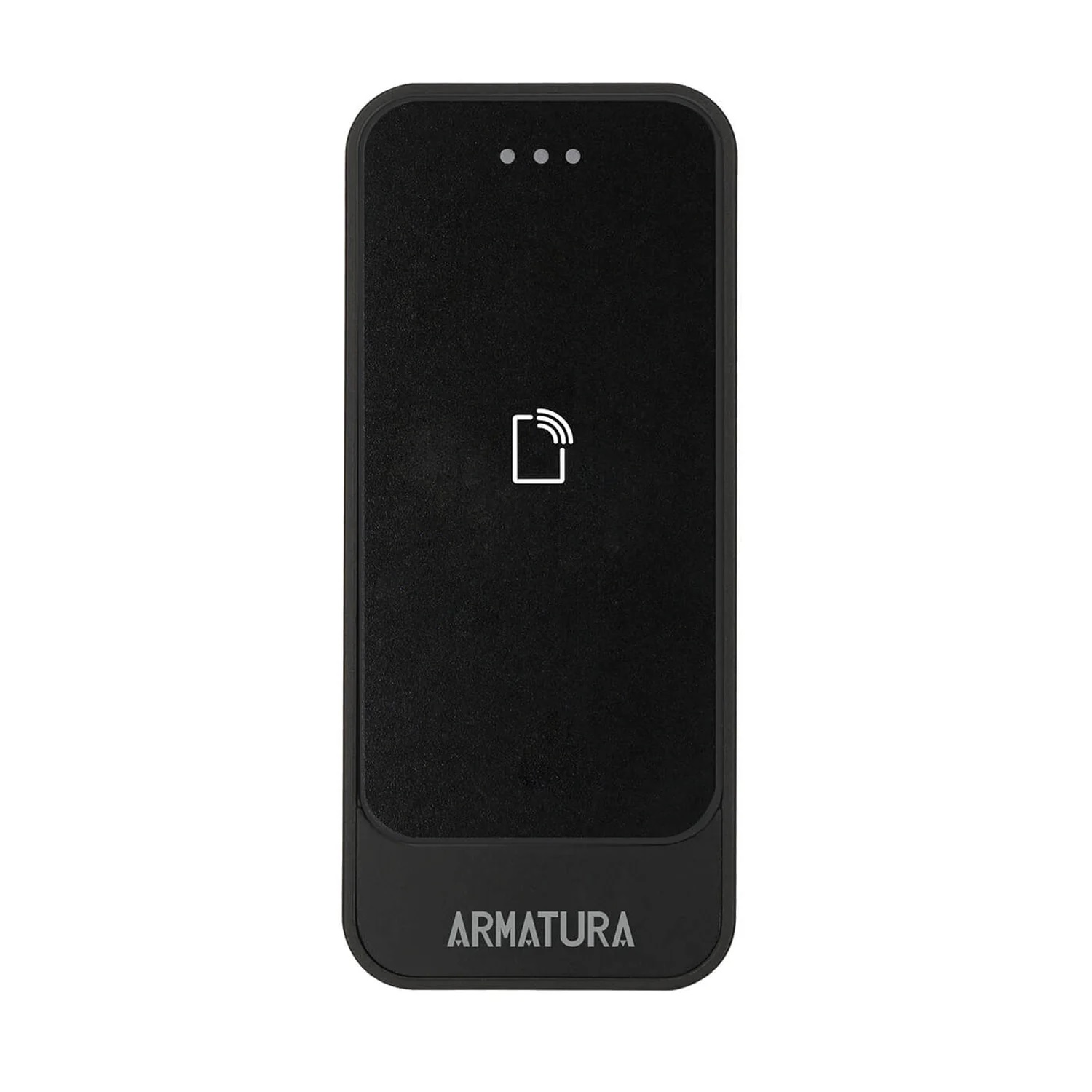

The ZKTeco EP10C is an all-weather, multi-technology smart reader designed for robust access control solutions. Supporting over 100 RFID card types, it operates across multiple frequencies, including 125 kHz, 13.56 MHz, and 2.4 GHz Bluetooth, ensuring compatibility with a wide range of credentials. Users can conveniently access secured areas by presenting their smartphones to the reader, utilizing both NFC and Bluetooth communication methods. This flexibility extends mobile access functions to almost all smartphone users. The device’s compact mullion mount design allows for seamless installation on door frames or flat surfaces, with optional single-gang box compatibility to accommodate various installation environments.
Engineered for durability, the EP10C boasts IP68-rated water and dustproof protection, making it suitable for harsh outdoor conditions. Its IK10 vandal-proof certification ensures resilience against physical tampering and malicious attacks. The reader operates efficiently within a temperature range of -30°C to 70°C (-22°F to 158°F), maintaining performance in extreme weather scenarios. Additionally, it meets the UL94-V0 flammability standard, ensuring that burning combustion is not sustained for more than 10 seconds after applying a controlled flame.
Security is a paramount feature of the EP10C, incorporating advanced cybersecurity measures to protect data transmission. It supports the Open Supervised Device Protocol (OSDP) for secure communication between the control panel and reader, utilizing AES128 end-to-end encryption to safeguard data integrity. Certified crypto chips with EAL5+ standards are employed for secure data storage, enhancing the overall security architecture. Visual and audio indicators, configurable via the ‘Armatura Connect’ mobile app, provide user feedback during operation. The reader’s magnetic tamper detection system adds an extra layer of security by alerting administrators to unauthorized access attempts.
ZKTeco EP10C All Weather Outdoor Multi-tech Smart Reader Features:
- Multi-technology support: Compatible with 125 kHz, 13.56 MHz (ISO14443A types A & B, ISO15693), and 2.4 GHz Bluetooth credentials, accommodating over 100 card types, including mobile NFC and Bluetooth (Low Energy).
- Robust protection:
- IP68-rated for water and dust resistance.
- IK10-certified for vandal resistance.
- UL94-V0 flame-retardant housing.
- Secure communications: Supports Wiegand (up to 128 bits SCP secure communication) and OSDP (v2.2) via RS-485, with AES128 encryption and secure data storage in an EAL 5+ certified crypto chip.
- Configurable indicators: Features RGB LEDs and an internal buzzer with adjustable intensity, both configurable via the ‘Armatura Connect’ mobile app.
- Flexible installation: Compact design suitable for mullion-mount door installations or any flat surface, with optional single-gang, Asian, or European back-box spacing.
- Operating conditions: Functions effectively in temperatures ranging from -30°C to 70°C (-22°F to 158°F).
- Certifications: Meets CE, FCC, RoHS 3.0, WEEE, and UL294 standards.
- Tamper detection: Equipped with a magnetic tamper detection system for enhanced security.
These features make the EP10C a versatile and secure solution for various access control applications.
ZKTeco EP10C Technical Specifications:
| Operating Frequency/ Standards |
125 kHz
13.56 MHz: ISO14443A types A & B, ISO15693
2.4 GHz Bluetooth |
| Functions |
RFID and Bluetooth |
| Communications & Panel Connection |
Wiegand (Up to 128bits SCP Secure Communication) OSDP (v2.2) via RS485 |
| Reading Distance |
13.56MHz & 125kHz: Up to 2.3″/60 mm (depending on environment and transponder)
Up to 393.7″/10m with a Bluetooth Smartphone (configurable distances on each reader) |
| Data Protection |
AES128 (Secured Communication between Reader & Controller) Secure Data Storage in EAL 5+ Certified Crypto Chip |
| Visual Indicator |
RGB LEDs (Configurable By ‘Armatura Connect’ Mobile APP) |
| Audio Indicator |
Internal buzzer with adjustable intensity (Configurable By ‘Armatura Connect’ Mobile APP) |
| Power Requirement / Power Supply |
9 VDC to 24 VDC |
| Operating Temperature |
-22°F – 158°F / -30°C to 70°C |
| Dimensions |
Standard Cover: 1.89″ W x 4.52″ H x 0.97″ D (48 x 114.8 x 24.7mm)
Gangbox Cover: 3.00″ W x 4.84″ H x 0.97″ D (76.2 x 123.0 x 24.7 mm) |
| Tamper Switch |
Magnetic tamper detection system |
| Certifications |
CE, FCC, RoHs3.0, WEEE, UL294 |
| Mounting |
Suited for mullion-mount door installations or any flat surface mounting
Optional Asian / European / single-gang-box back-box spacing |
| Protection / Resistance |
Weather & Dust Proof Protection Rating compliant with IP68
Reinforced Vandal-proof Structure IK10 certified |
| UV Stability |
Nil structural degradation for the life of the reader in 3 years |
| Housing Material |
Polycarbonate UL94-V0 & UL746C (F1) |
