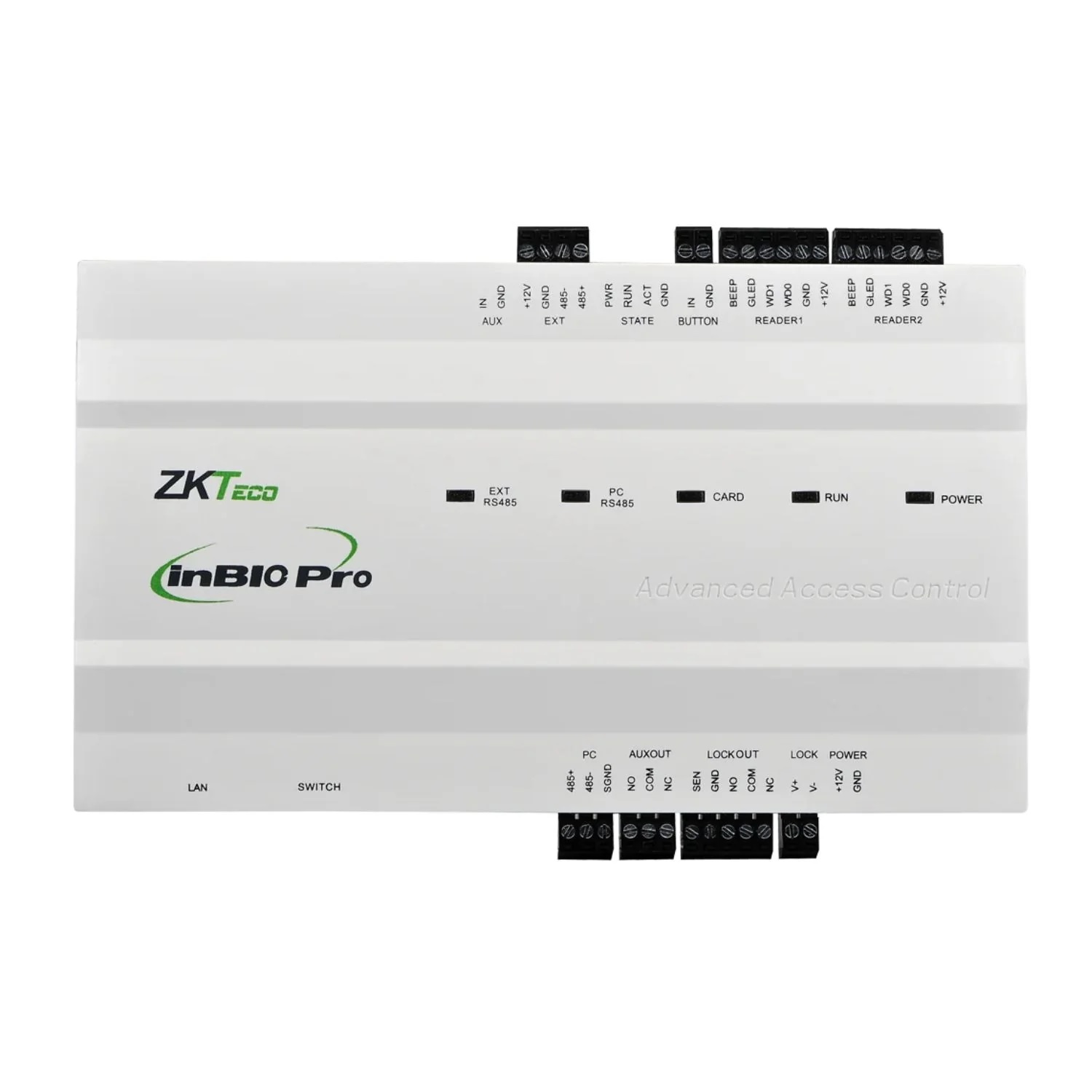

The ZKTeco INBIO 260 PRO is a two-door network controller panel designed to enhance security through advanced access control features. It supports multiple authentication methods, including fingerprint recognition, RFID cards, and passwords, catering to diverse security requirements. The controller can manage up to 20,000 fingerprint templates and 60,000 card users, ensuring scalability for various organizational needs. Additionally, it can store up to 100,000 transaction logs, facilitating comprehensive event tracking. These capabilities make it suitable for businesses, institutions, and other high-security environments.
In terms of connectivity, the INBIO 260 PRO supports both TCP/IP and RS485 communication protocols, allowing for real-time data synchronization and centralized management. It is compatible with ZKTeco’s ZKBioSecurity software platform, enabling seamless integration and monitoring. The controller also supports encrypted communication protocols, such as OSDP v2.1.7, enhancing data security during transmission. Furthermore, it is compatible with various reader types, including 26-bit Wiegand and RS485 FR Series Readers, providing flexibility in system design. Its advanced connectivity ensures smooth and secure access control management for diverse applications.
The INBIO 260 PRO is equipped with a 32-bit 1.2GHz CPU, 128MB RAM, and 256MB flash memory, ensuring efficient processing and storage capabilities. It operates within a voltage range of 9.6V-14.4V DC and functions optimally in temperatures between 0-45°C with 20% to 80% humidity. The controller’s compact design, with package dimensions of 350(L)×90(H)×300(W)mm and a weight of 3.6kg, facilitates easy installation in various environments. These hardware specifications contribute to the device’s reliability and adaptability, making it a robust solution for modern access control systems. Its powerful hardware and durable build make it an excellent choice for organizations seeking a high-performance security solution.
ZKTeco INBIO 260 PRO 2-Door Network Controller Panel Features:
- Support for Different Readers: The FR Series readers transmit fingerprint templates to inBio Pro via RS485. Wiegand inputs are also available for traditional RFID readers.
- Beyond Door Control: Provides additional control and interfaces with auxiliary relays.
- Seamless Communication: Easily integrates into your network and supports both HTTP/HTTPS communication.
- High Capacity: Supports up to 20,000 fingerprint templates, 60,000 cards, and stores up to 100,000 events and transactions.
- Advanced Access Control Features: Includes Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and auxiliary input/output linkages built into the controller firmware.
- Cost-Effective Solution: Controller firmware can be upgraded without requiring advanced tools, reducing total cost of ownership.
ZKTeco INBIO 260 PRO Technical Specifications:
| Number of Doors Controlled |
InBio-160 Pro: 1 Door
InBio-260 Pro: 2 Door
InBio-460 Pro: 4 Door |
| Number of Readers Supported |
InBio-160 Pro: 4 (2 RS-485 Reader, 2 26-bit Wiegand reader)
InBio-260 Pro: 8 (4 RS-485 Reader, 4 26-bit Wiegand reader)
InBio-460 Pro: 12 (8 RS-485 Reader, 4 26-bit Wiegand reader) |
| Types of Readers Supported |
26-bit Wiegand and RS485 FR Series Reader |
| Number of Inputs |
InBio-160 Pro: 3 (Exit Button and Door Status, 1 AUX)
InBio-260 Pro: 6 (2 Exit Button, 2 Door Status, 2 AUX)
InBio-460 Pro: 12 (4 Exit Button, 4 Door Status, 4 AUX) |
| Number of Outputs |
InBio-160 Pro: 2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)
InBio-260 Pro: 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
InBio-460 Pro: 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) |
| Card Holders Capacity |
60,000 |
| Fingerprint Capacity |
20,000 |
| Log Events Capacity |
100,000 |
| Communication |
TCP/IP |
| Package Dimension |
350(L) × 90(H) × 300(W)mm |
| Package Weight |
InBio-160 Pro: 3.6kg
InBio-260 Pro: 3.6kg
InBio-460 Pro: 3.7kg |
| CPU |
32 bit 1.2GHz CPU |
| RAM |
128MB |
| Flash Memory |
256MB |
| Power Supply |
9.6V – 14.4V DC |
| Operating Temperature |
0 – 45 °C |
| Operating Humidity |
20% to 80% |
