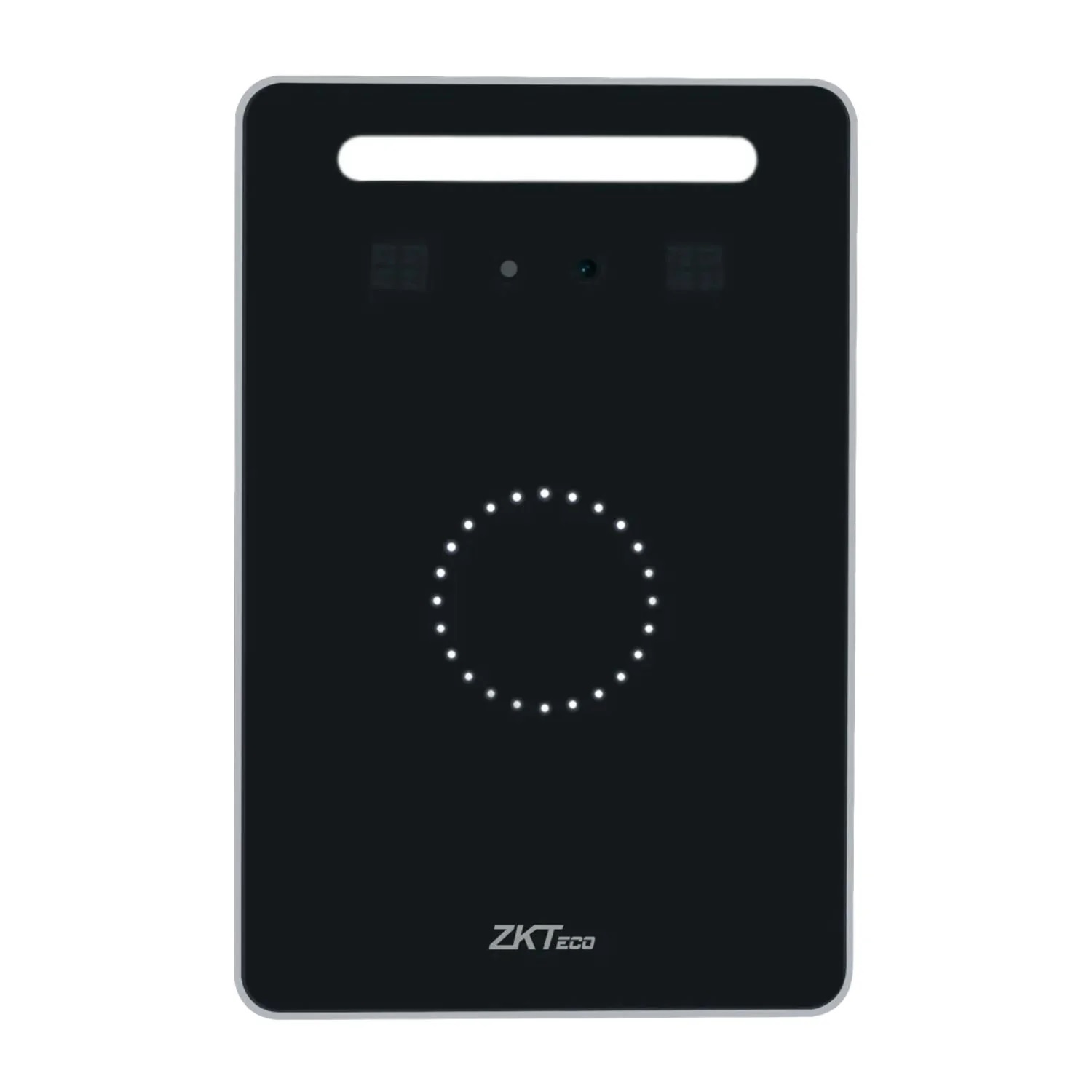

ZKTeco KF 1200[IC] Face Recognition and Card Reader

The ZKTeco KF1200[IC] is an advanced facial recognition and card reader device designed for seamless access control and time attendance management. It utilizes visible light facial recognition technology, offering rapid and accurate identification with a recognition speed of less than 0.3 seconds and a distance range between 30 cm to 50 cm. The device supports up to 1,500 facial templates and 30,000 card users, ensuring it can accommodate the needs of large organizations. Additionally, it can store up to 100,000 event logs, providing comprehensive tracking of access events. The KF1200[IC] operates on a Linux-based system, ensuring stability and reliability in various environments.

In terms of connectivity, the KF1200[IC] is equipped with multiple communication ports, including TCP/IP and Wiegand output, with RS485 support anticipated in future updates. This versatility allows for seamless integration with existing access control systems, particularly the InBio series biometric controllers. The device also features a user-friendly onboard web server, facilitating quick and straightforward system configuration. For enhanced security, the KF1200[IC] complies with the ZKTeco Cyber Security Base Line (ZKCSBL), ensuring that user data is protected to the highest standards. Its security measures make it a reliable option for organizations that prioritize data protection and efficient access management.

Physically, the KF1200[IC] is designed for wall mounting and is compatible with single gang-box installations, making it suitable for various architectural settings. The device measures 121 mm in height, 80 mm in width, and 13.8 mm in depth, offering a sleek and unobtrusive profile. It operates efficiently within a temperature range of -10°C to 50°C and a humidity range of 10% to 90%, ensuring reliable performance in diverse environmental conditions. The KF1200[IC] is also compatible with the ZKBio Access IVS security platform, providing a comprehensive solution for access control and attendance monitoring needs. Its combination of advanced features and robust design makes it an ideal solution for modern security and access management systems.

ZKTeco KF 1200[IC] Face Recognition and Card Reader Features:

• Biometric Method: Visible light facial recognition
• RFID Support: Standard ID card and optional IC card compatibility
• Capacities:
  • User Capacity: Up to 30,000 users
  • Card Capacity: Up to 30,000 cards
  • Face Templates: Up to 1,500 face templates
  • Log Records: Stores up to 100,000 logs
• Facial Recognition Algorithm: ZKLiveface 3.5
• Recognition Performance:
  • Speed: Less than 0.3 seconds per recognition
  • Distance: Effective between 30 cm to 50 cm
  • Accuracy: False Acceptance Rate (FAR) ≤ 0.001%; False Rejection Rate (FRR) ≤ 1%
• Communication Interfaces:
  • TCP/IP
  • Wiegand output
  • RS485 (available in future updates)
  • Wi-Fi (available in future updates)
• Operating System: Linux
• Power Supply: 12V, 500mA
• Operating Conditions:
  • Temperature: -10°C to 50°C
  • Humidity: 10% to 90%
• Dimensions: 121 mm (W) x 80 mm (H) x 13.8 mm (D)
• Mounting: Wall mount compatible with single gang-box installations
• Supported Software: ZKBio Access IVS

These specifications highlight the device’s capabilities in providing efficient and secure access control solutions.

ZKTeco KF 1200[IC] Technical Specifications:

Biometric Method	Visible light facial
RFID	ID card standard & IC card (Optional)
User Capacity	30,000
Card Capacity	30,000
Face Capacity	1,500
Logs Capacity	100,000
Facial Recognition Algorithm	ZKFace V3.5
Facial Recognition Speed	< 0.3s
Facial Recognition Distance	30cm ~ 50cm
Facial Recognition Rate	FAR ≤ 0.001%; FRR ≤ 1%
Mounting	KF1100: Wall Mount (Compatible with Asian gang-box) KF1200: Wall Mount (Compatible with Single gang-box)
Communication	TCP/IP, Wiegand / RS485 (Coming soon) / Wi-Fi
Operation System	Linux
Power Supply	≤ 12V 500mA
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Dimension	KF1100: 91*91*13.8 mm KF1200: 121*80*13.8 mm
Operating Humidity	10% to 90%RH
Supported Softwares	ZKBio Access IVS
