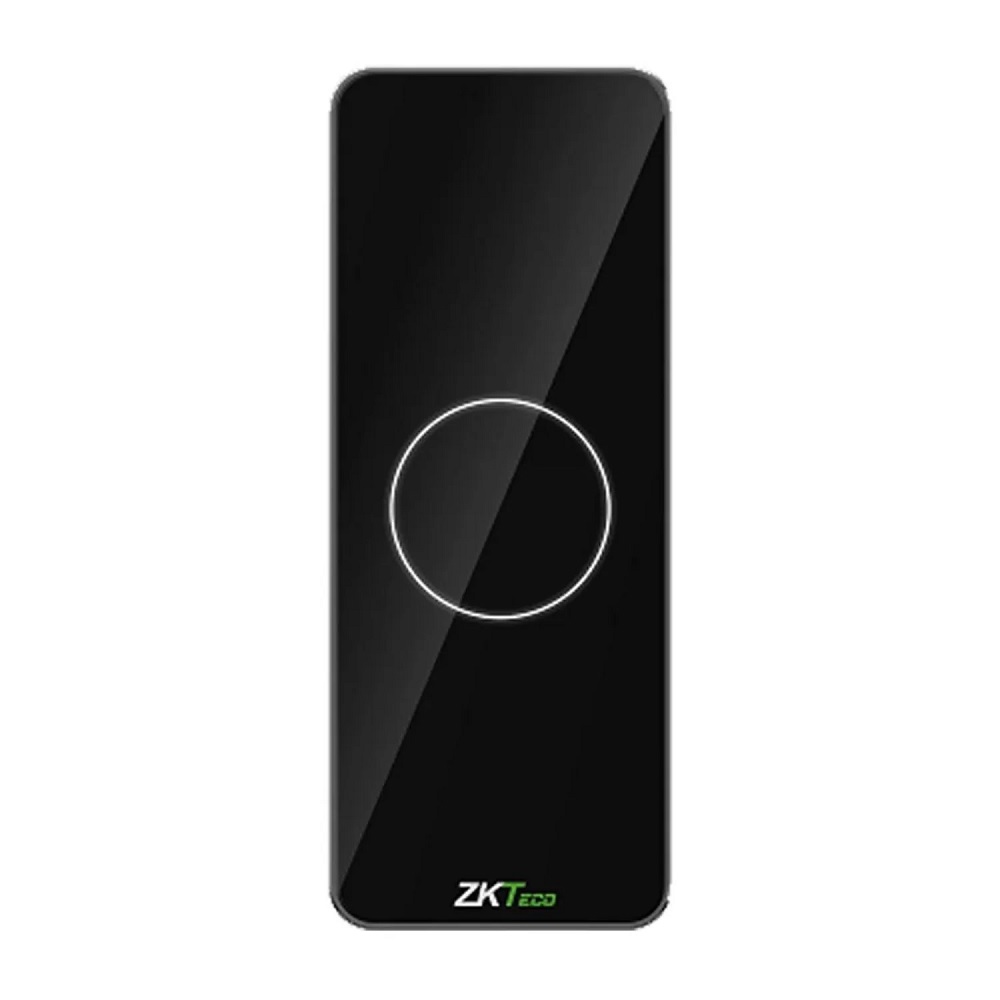

The ZKTeco ProID101 Slimline Mifare Card Reader is a sophisticated RFID access control device designed for secure and efficient entry management. It supports both 125kHz ID cards and 13.56MHz IC cards, offering flexibility in access solutions. With a reading range of 0 to 3 centimeters and a swift reading time of ā¤0.3 seconds, it ensures quick and reliable authentication. The device operates on a 32-bit ARM Cortex-M0 48MHz processor, ensuring efficient performance. Its compact and modern design makes it ideal for various security applications.
Constructed with a durable aluminum alloy casing and a tempered glass surface, the ProID101 is built to withstand various environmental conditions. Its IP65 rating signifies high resistance to dust and water, making it suitable for both indoor and outdoor installations. The reader features LED indicators and an anti-disassembly alarm to enhance security measures. Available in black and white, it can seamlessly blend with different architectural designs. These features ensure reliability and durability in high-traffic areas.
The ProID101 offers versatile connectivity options, supporting both Wiegand (26-bit or 34-bit, adjustable) and RS485 communication protocols. This flexibility allows for seamless integration with various access control systems, including ZKTeco’s InBio, InBio Pro, and C3 series panels. Operating within a voltage range of DC 7 to 13V and drawing a current of ā¤350mA at 5V, it is energy-efficient. The device functions effectively in temperatures ranging from -20Ā°C to 65Ā°C, accommodating diverse environmental conditions. With its advanced technology and robust design, the ProID101 is an excellent choice for secure access control solutions.
ZKTeco PROID101 Slimline Mifare Card Reader Features:
- Durable Construction: Features a robust aluminum alloy casing with a tempered glass surface, ensuring longevity and resilience.
- Dual Card Compatibility: Supports both 125kHz ID cards and 13.56MHz IC cards, providing flexibility for various access control applications.
- Adjustable Output: Offers on-site adjustable Wiegand output (26 or 34 bits) and RS485 communication, facilitating seamless integration with different access control systems.
- Weatherproof Design: Rated IP65 for high resistance to dust and water, making it suitable for both indoor and outdoor installations.
- Visual Indicators and Security Features: Equipped with LED lights and an anti-disassembly alarm to enhance security and user awareness.
- Compact Dimensions: Measures 111 x 44.5 x 11 mm, allowing for easy installation in various settings.
- Fast Reading Performance: Provides a read range of 0-3 cm with a reading time of ā¤0.3 seconds, ensuring quick and efficient access.
- Wide Operating Temperature Range: Operates effectively in temperatures ranging from -20Ā°C to 65Ā°C, accommodating diverse environmental conditions.
- Aesthetic Options: Available in black and white colors to match different architectural designs.
- Certification: Holds certifications including ISO9001, ISO14001, CE, and FCC, ensuring compliance with international standards.
These features make the ProID101 a versatile and reliable choice for secure access control solutions.
ZKTeco PROID101 Technical Specifications:
| Model Name |
ProID 101 |
| Processor |
32-bit ARM Cortex-M0 48MHz |
| Read Range |
0-3 cm
(The application environment influences the performance of the card and the card’s reading distance it covers.) |
| Reading Frequency |
125kHz ID card / 13.56MHz IC card |
| Reading Time |
ā¤0.3s |
| Card Type |
ID (Standard) / IC Card (ProID 101, ProID102, ProID103)
IC&CPU & NFC (ProID 104) |
| Input Port |
External LED Control
External Buzzer Control |
| Casing Material |
Aluminum Alloy
Tempered glass surface |
| Power |
Operating Voltage: DC 7 to 13V
Current Draw: ā¤350mA 5V
ProID104: DC 12V 1A
Current Draw: ā¤300mA |
| Output Format |
ProID 101: Wiegand 26-bit or 34-bit (Adjustable); RS485 |
| Status Indicator |
Pulsing White Standby Light
Red and Green LEDs |
| Operating Temperature |
-20 Ā°C ~ 65 Ā°C |
| Supported Panel |
InBio, InBio pro, C3 Series |
| Operating Humidity |
10% ~ 90% RH (Non-Condensing) |
| Buzzer |
Beep |
| Ingress Protection Rating |
IP65 (Only ProID101, ProID 102, and ProID 103)
IK04 |
| Operating Environment |
Indoor & Outdoor |
| Dimension |
ProID101: 111 x 44.5Ć 11mm |
| Mounting Method |
Mullion mount |
| Colour |
Black & White |
| Certifications |
ISO9001, ISO14001, CE, FCC |
