ZKTeco SC800/MF Stand alone Multi-Tech Card Access Control Terminal
The ZKTeco SC800 is a Linux-based, waterproof RFID access control terminal designed for outdoor applications. Its robust construction features a metal midframe housing and a 2.5D tempered glass panel, achieving IP65 waterproof and IK04 vandal-proof ratings. Equipped with a 2.4-inch color screen and a concealed touch keypad, the SC800 enhances the touchless unlocking experience. The terminal supports multi-technology RFID modules compatible with both 125kHz and 13.56MHz cards, including HID Prox and HID iClass. Additionally, it offers Wiegand input and output ports, allowing integration with external proximity readers and functioning as an external reader for controllers.
The SC800 supports access control push communication protocols and is compatible with ZKBioAccess IVS software, facilitating seamless integration into existing security systems. Its durable design ensures reliable performance in various environmental conditions, making it suitable for diverse outdoor settings. The terminal’s advanced features and compatibility with multiple card technologies provide flexible and secure access control solutions. By incorporating the SC800, organizations can enhance their security infrastructure with a reliable and versatile access control terminal.
Key Features:
IP65 water and dust resistant, IK04 vandal proof
Supports multiple RFID modules and up to 100+ card types (including, ID / IC / Felica / Legic / DESfire EV1 / EV2 / HID
Prox / HID iClass / etc.
Support Access Control push conversion to Time Attendance push
The ZKTeco SC800/MF is a Linux-based, waterproof RFID access control terminal designed for outdoor applications. It features a robust metal midframe housing and a 2.5D tempered glass panel, meeting IP65 waterproof and IK04 vandal-proof standards. The device is equipped with a 2.4-inch color screen and a hidden touch keypad, enhancing the touchless unlocking experience. These design elements ensure durability and reliability in harsh environments.
This terminal supports multiple RFID technologies, including 125kHz and 13.56MHz cards, and is compatible with various card types such as HID Prox and HID iClass. It integrates seamlessly with ZKBioAccess IVS software and supports access control push communication protocols. The SC800/MF offers flexible communication options, including TCP/IP, optional Wi-Fi, Wiegand input and output, RS485, OSDP (version 2.1.7), and RS232 (for printer connectivity). Additionally, it includes a Wiegand input port to connect external proximity readers and can function as an external reader for controllers using the Wiegand output port.
The SC800/MF is designed to enhance security and user convenience in various settings. Its multi-tech RFID module and comprehensive communication interfaces make it a versatile solution for access control and time attendance systems. The device’s compliance with ZKTeco Cyber Security Base Line (ZKCSBL) ensures advanced protection against cyber threats. Overall, the SC800/MF provides a reliable and efficient access control solution for both indoor and outdoor environments.
ZKTeco SC800/MF Multi-Tech Card Access Control Terminal Features:

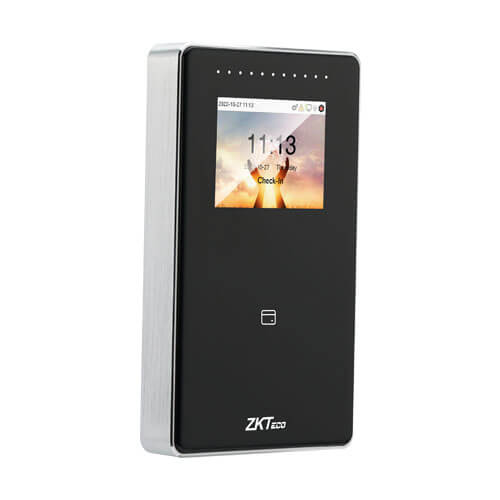

Durable Design: Features a metal midframe housing with a 2.5D tempered glass panel, ensuring IP65 water and dust resistance and IK04 vandal-proof rating.
Multi-Technology RFID Support: Supports both 125kHz and 13.56MHz card frequencies, accommodating over 100 card types, including ID, IC, Felica, Legic, DESFire EV1/EV2, HID Prox, and HID iClass.
User Capacity: Stores up to 50,000 cards (expandable to 100,000) and logs up to 200,000 events (expandable to 1,000,000).

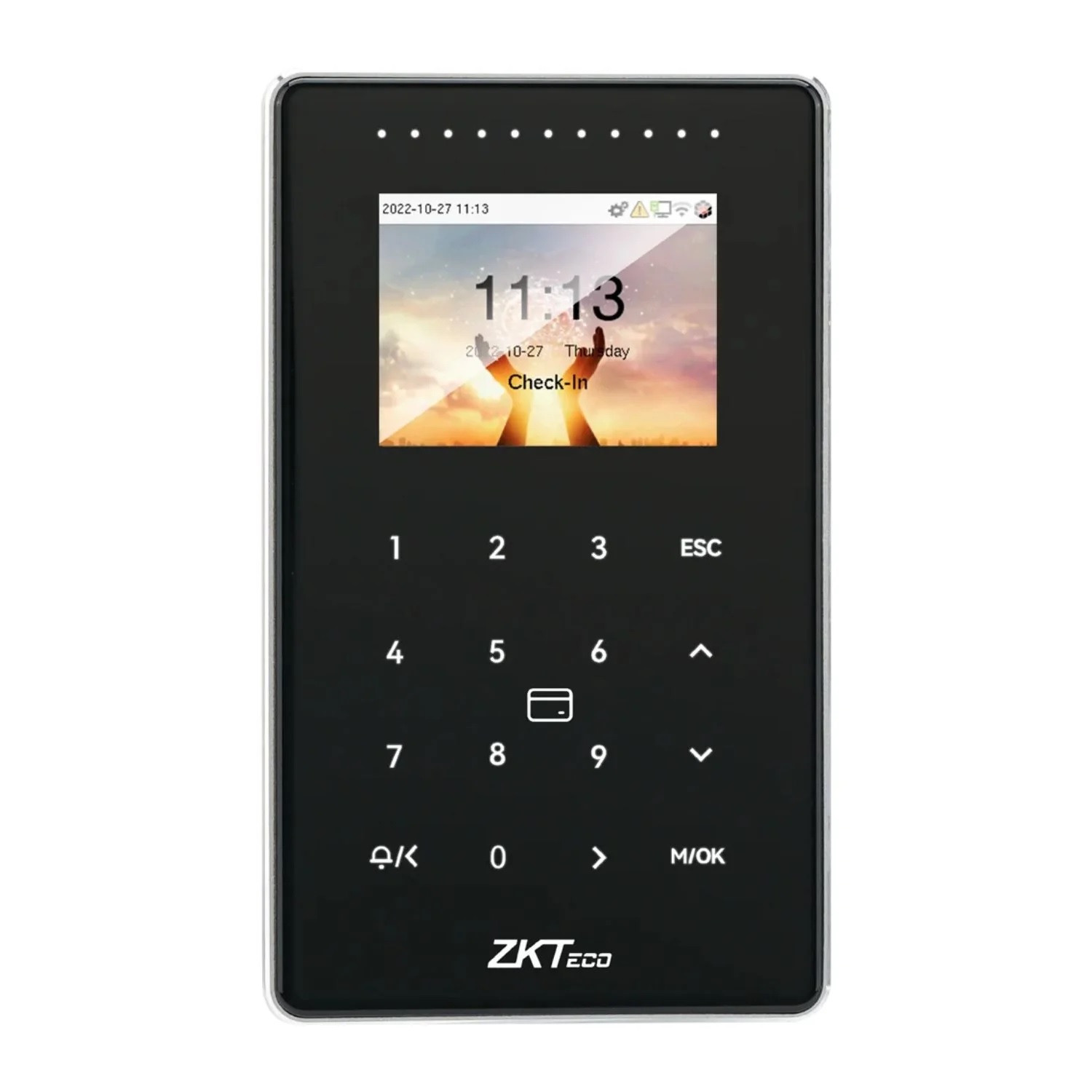

Display and Interface: Equipped with a 2.4-inch TFT LCD color screen and a hidden touch keypad for enhanced user interaction.
Communication Options: Offers multiple communication interfaces, including TCP/IP, optional Wi-Fi, Wiegand in & out, RS485, OSDP (Ver2.1.7), and RS232 (for printer).
Access Control Features: Includes interfaces for third-party electric locks, door sensors, exit buttons, alarms, and doorbells.
Data Security: Implements AES-256 encryption for robust data protection.
Operating Conditions: Designed to operate in temperatures ranging from -10°C to 55°C (14°F to 131°F) and humidity levels between 10% to 90% RH.
Compact Dimensions: Measures 143 mm (L) x 85 mm (W) x 19.8 mm (D), making it suitable for various installation environments.
Software Compatibility: Fully compatible with ZKBio CVAccess software for seamless integration and management.
ZKTeco SC800/MF Technical Specifications:
Display
2.4 inch TFT LCD Color Screen
Operation System
Linux
Card Capacity
50,000 (Optional: 100,000)
Logs Capacity
200,000 (Optional: 1000,000)
User Password
6 Digits
RFID
Standard Module: ID Optional Multi-Tech Card Module:
Module 1: Support ID&IC& DESFire EV1/EV2;
Module 2: Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox;
Module 3: Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox&HID iclass;
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Auxiliary Interface
1 AUX input
Indication Light
Breathing light: White, Status light: Red / Green
Hardware
1GHz Dual Core CPU, DDR2 64M, Flash 256M
Data Protection
AES-256 Encryption
Keypad Hidden
Touch Keypad
Wiegand Signal
Wiegand In / Out
Standard Functions
ID card, Web server, Automatic Status Switch, Self-Service Query, DST, 14 Digit User ID, Scheduled Bell, Anti-passback, HTTPS, Protocol convert (AC push to TA push)
