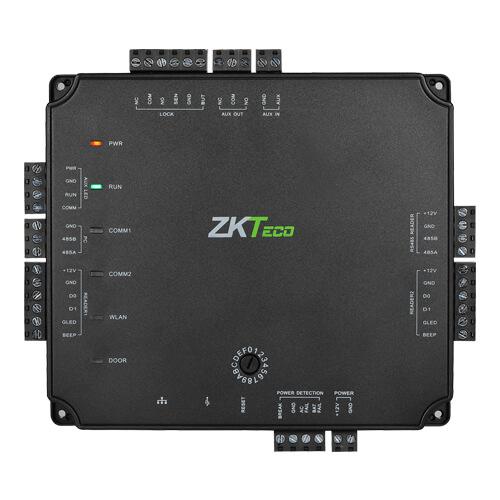

The ZKTeco ATLAS100 is a 1-door access control panel that features a built-in web application, eliminating the need for additional management software. This embedded system facilitates user enrollment and management, door control and monitoring, lockdown capabilities, reporting, and advanced functions such as Anti-Passback, First-Card Opening, Multi-Card Opening, card design, and duress PINs. The panel supports up to 5,000 users and can log 10,000 transactions, with unlimited archive downloads available. It is compatible with ZKTeco KR Series readers and third-party readers using Wiegand or OSDP communication protocols. For added convenience, the ATLAS100 offers a mobile app that allows for remote door unlocking, universal lockdown and recovery, event and alarm monitoring, and user management.
In terms of connectivity, the ATLAS100 supports both wired and wireless TCP/IP networks, utilizing SSL/TLS encryption to ensure secure communication. Supported web browsers include Google Chrome, Mozilla Firefox, and Microsoft Edge. The panel is equipped with three inputs (exit button, door sensor, and auxiliary input) and two outputs (one Form C relay for lock control and one for auxiliary output). Power options are flexible, as the device can operate using a 12V DC 3A power supply or through Power over Ethernet (PoE). The enclosure is constructed from powder-coated aluminum, designed for wall mounting, and measures 380mm x 80mm x 280mm.
The ATLAS100 is designed for scalability, allowing one primary panel to support up to 20 secondary panels, effectively managing up to 84 doors when fully expanded. User-programmable auxiliary relays provide the capability to control external devices such as lights, alarms, annunciators, intrusion detection panels, or additional locking mechanisms. This flexibility makes the ATLAS100 suitable for various applications, from small businesses to larger enterprises requiring comprehensive access control solutions. The system’s firmware is field-upgradeable, ensuring that it can stay current with the latest features and security enhancements.
ZKTeco ZK-ATLAS100 1-Door Network Controller Panel Features:
- Built-in Web Application: Eliminates the need for additional management software by providing advanced access control features directly through a web interface.
- Reader Compatibility: Supports ZKTeco KR Series readers and third-party readers using Wiegand, OSDP, or RS-485 communication protocols.
- Flexible Communication Options: Offers TCP/IP and optional Wi-Fi connectivity for secure and versatile network integration.
- Power over Ethernet (PoE) Support: Simplifies installation by allowing power and data transmission over a single Ethernet cable.
- High User Capacity: Capable of storing up to 5,000 users and 10,000 transaction logs, with unlimited archive downloads.
- Advanced Security Features: Includes anti-passback, first-card opening, multi-card opening, and duress PINs for enhanced security.
- Mobile App Integration: Allows administrators to remotely unlock doors, initiate lockdowns, manage users, and monitor events and alarms.
- Scalability: A single primary panel can support up to 20 secondary panels, managing a maximum of 84 doors.
- Customizable Auxiliary Relays: User-programmable relays can control external devices such as lights, alarms, and additional locking mechanisms.
- Secure Communication: Utilizes SSL/TLS encryption for secure data transmission over wired and wireless networks.
ZKTeco ZK-ATLAS100 Technical Specifications:
| Number of Doors Controlled |
1 Door |
| Number of Readers Supported |
2 (Wiegand or OSDP Readers) |
| Types of Readers Supported |
ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers |
| Number of Inputs |
3 (1 Exit Button, 1 Door Sensor, 1 Aux) |
| Number of Outputs |
2 (1 Form C relay for lock and 1 Form C relay for Aux output) |
| User Capacity |
5000 |
| Events Database Capacity |
10000 transactions plus unlimited archive downloads |
| Communication |
OSDP, TCP/IP, Wi-Fi, Wiegand |
| Browsers Supported |
Chrome, Edge, Firefox |
| Enclosure |
Powder Coated Aluminium |
| Mounting |
Wall Mount |
| Recommended Power Supply |
12V DC, 3A (PoE) |
| Dimensions (Bundle Only) |
380*80*280mm (14*2.5*12in) (l*w*h) |
| Dimensions (Board Only) |
160*140mm (6.3*4.17in) |
| Weight |
3.8kg (9lbs) |
