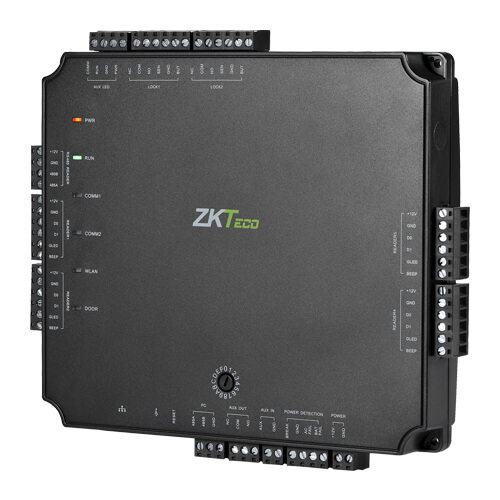

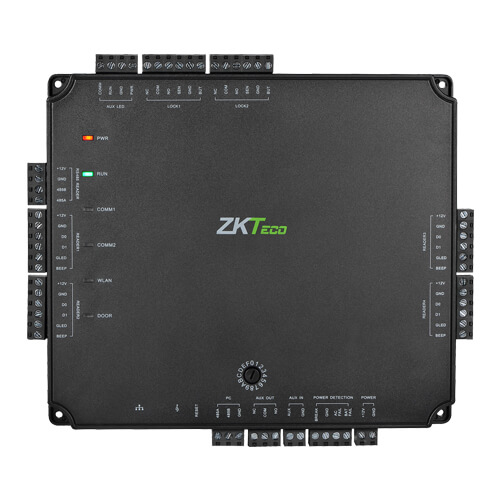

The ZKTeco Atlas-200 is a sophisticated 2-door access control panel featuring an integrated web application, eliminating the need for additional management software. This built-in application offers advanced functionalities such as user enrollment and management, door control and monitoring, lockdown capabilities, reporting, mapping, anti-passback, first-card opening, multi-card opening, card design, and duress PINs. The system supports ZKTeco KR Series readers and is compatible with third-party readers using Wiegand, RS485, or OSDP communication protocols. User-programmable auxiliary relays enhance versatility by allowing control over external devices like lights, alarms, and intrusion detection panels.
Designed to handle substantial access control needs, the Atlas-200 can store up to 5,000 users and 10,000 transaction records, with unlimited archive downloads. A primary panel can support up to 20 secondary panels, managing a maximum of 84 doors when fully expanded. Secure communication is ensured through wired and wireless TCP/IP networks using SSL/TLS protocols, and the system is accessible via popular web browsers like Google Chrome, Mozilla Firefox, and Microsoft Edge. For added convenience, a mobile app enables remote door unlocking, universal lockdown and recovery, event and alarm monitoring, and user management.
The Atlas-200 is housed in a durable powder-coated aluminum enclosure suitable for wall mounting. It operates on a 12V DC, 3A power supply and also supports Power over Ethernet (PoE), simplifying installation and reducing wiring requirements. The panel measures 380mm in length, 80mm in width, and 280mm in height, with a weight of approximately 4 kilograms. It supports up to four readers (Wiegand or OSDP) and includes five inputs (two exit buttons, two door sensors, and one auxiliary) along with three outputs (two form C relays for locks and one form C relay for auxiliary output).
ZKTeco ZK-ATLAS200 2-Door Network Controller Panel Features:
- Advanced Access Control Features – built-in Web Application provides such features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs.
- Choice of Readers – supports ZKTeco KR Series readers and additionally any 3rd-party readers with Wiegand or OSDP communication protocols.
- Door Control and More – user-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device which can be controlled by a switch.
- Capacity – 1 Primary panel can support up to 20 Secondary panels. Maximum 84 doors can be supported when using all 21 panels. Each Atlas Prox Series panel can store up to 5,000 users & 10,000 transactions plus unlimited archive downloads.
- Communication – Atlas Prox Series panels communicate securely over wired & wireless TCP/IP networks using SSL/TLS. Supported browsers include Google Chrome, Mozilla Firefox and Microsoft Edge
- Mobile App – numerous features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.
- Power – Atlas Bio Series uses a 12V DC 3A power supply and also supports Power over Ethernet (PoE).
- Lowest Total Cost of Ownership – Atlas Prox Series panels come in several models to suit different project needs and reduce the cost of unused capacity.
ZKTeco ZK-ATLAS200 Technical Specifications:
| Number of Doors Controlled |
2 Doors |
| Number of Readers Supported |
4 (Wiegand or OSDP Readers) |
| Types of Readers Supported |
ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP, and RS-485 readers |
| Number of Inputs |
5 (2 Exit Buttons, 2 Door Sensors, 1 Aux) |
| Number of Outputs |
3 (2 Form C relays for lock and 1 Form C relay for Aux output) |
| User Capacity |
5000 |
| Events Database Capacity |
10000 transactions plus unlimited archive downloads |
| Communication |
OSDP, TCP/IP, Wi-Fi, Wiegand |
| Browsers Supported |
Chrome, Edge, Firefox |
| Enclosure |
Powder Coated Aluminium |
| Mounting |
Wall Mount |
| Recommended Power Supply |
12V DC, 3A (PoE) |
| Dimensions (Bundle Only) |
380*80*280mm (14*2.5*12in) (l*w*h) |
| Dimensions (Board Only) |
197*171mm (7.75*6.73in) |
| Weight |
4.2kg (10lbs) |
