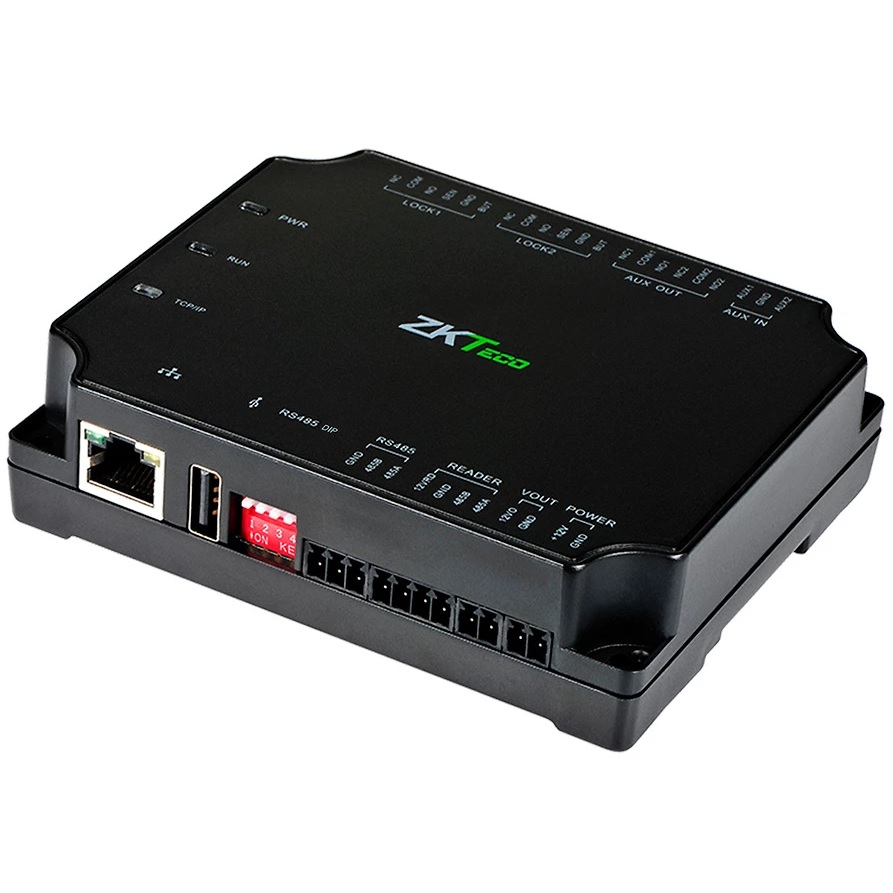

ZKTeco ZK-C2-260 Two Door IP-Based Mini Control Panel

The ZKTeco ZK-C2-260 is an IP-based mini control panel designed to manage access for two doors by default. It supports TCP/IP communication over LAN or WAN networks and RS485 communication, allowing for extensions with devices like DM10, AUX485, and WR485. This compact panel integrates seamlessly with ZKBioAccess, a web-based software solution for RFID security. Measuring 116.47 mm in length, 96.49 mm in width, and 31.4 mm in height, the C2-260 operates efficiently within a temperature range of -10°C to 50°C and humidity levels between 20% and 80%. It is a versatile and compact solution for modern access control systems.

By incorporating up to eight DM10 single-door extension boards, the C2-260 can expand its control capacity to a maximum of ten doors. It accommodates four readers, supporting both RS485 card readers and Wiegand readers via the WR485 converter. The panel also offers two auxiliary inputs and outputs, with the option to extend auxiliary inputs to four using the AUX485 converter. This flexibility ensures that the C2-260 can adapt to various access control requirements, providing a scalable solution for growing security needs. Its modular architecture makes it an ideal choice for businesses looking for a cost-effective and efficient access control system.

In terms of capacity, the C2-260 can store up to 30,000 card credentials and maintain a log of 200,000 events, ensuring robust data management for high-traffic environments. Its 32-bit 1.0GHz CPU and 64MB RAM facilitate efficient processing and quick response times. The device operates on a power supply ranging from 9.6V to 14.4V DC, making it compatible with standard power systems. With its advanced access control features and compact design, the ZKTeco ZK-C2-260 offers a reliable and versatile solution for modern security infrastructures. It is a powerful and scalable option for organizations looking to enhance their security measures efficiently.

ZKTeco ZK-C2-260 Two Door IP-Based Mini Control Panel Features:

• Default Door Control: Manages two doors out of the box; expandable up to ten doors with the addition of up to eight DM10 single-door extension boards.
• Communication Protocols: Supports TCP/IP for LAN or WAN networks and RS485 for extending connections to devices like DM10, AUX485, and WR485.
• Reader Compatibility: Accommodates up to four readers, including RS485 card readers and Wiegand readers (via WR485 converter).
• Auxiliary Inputs and Outputs: Provides two auxiliary inputs and two outputs, with the option to extend inputs to four using AUX485 converters.
• Capacity: Stores up to 30,000 card credentials and logs up to 200,000 events.
• Compact Design: Features a compact size measuring 116.47 mm x 96.49 mm x 31.40 mm, suitable for various installation environments.
• Operating Conditions: Functions effectively within a temperature range of -10°C to 50°C (14°F to 122°F) and humidity levels between 20% and 80%.
• Power Requirements: Operates on a DC power supply ranging from 9.6V to 14.4V.
• Advanced Access Control: Offers sophisticated access control features when integrated with ZKBioAccess software, providing a comprehensive RFID security solution.



ZKTeco ZK-C2-260 Technical Specifications:

Number of Doors Supported by Default	2
Number of Auxiliary Inputs	2
Number of Auxiliary Outputs	2
RS485 Extension Port	1
RS485 Reader Port	1
Number of Readers Supported	4
Types of Readers Supported	RS485 card reader, Wiegand reader (WR485)
Access Control – DM10 Module	Max. 8
AUX485 (RS485-4 Aux. IN Converter) (Optional)	2
WR485 (RS485-Wiegand Converter) (Optional)	4
Card Capacity	30,000
Log Capacity	200,000
Communication	RS485, TCP/IP
CPU	32-bit 1.0GHz
RAM	64MB
Power	9.6V – 14.4V DC
Dimensions (L×W×H)	116.47 × 96.49 × 31.4 mm
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Operating Humidity	20% to 80%
