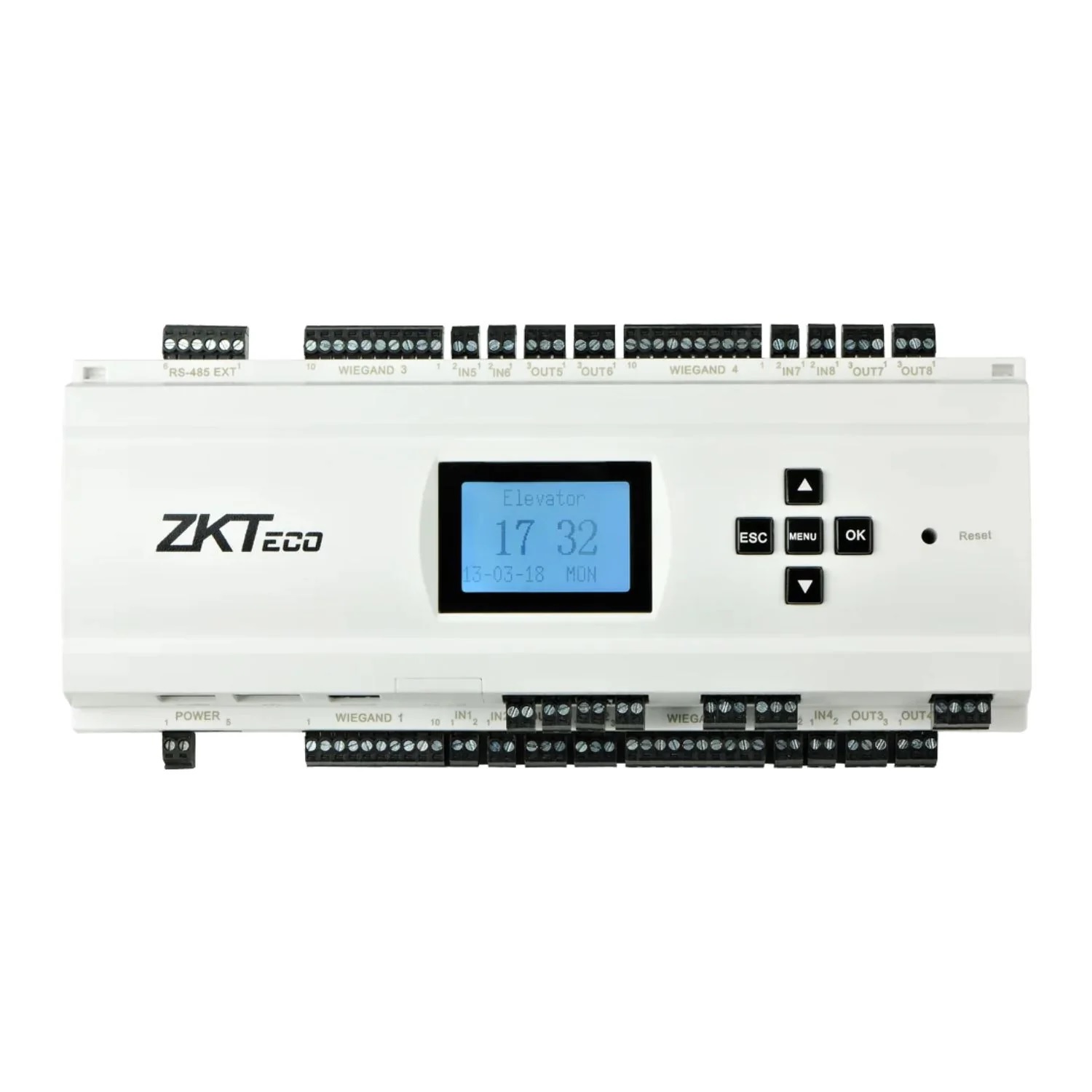

ZKTeco ZK-EC10 Elevator Controller, Floor Button Control Relay: 10, Fingerprint Capacity (3,000) RFID Card Capacity (30,000) Support up to Three EX16 Boards (Each EX16 Additional 16 Floors)

Designed specifically for elevator control, the EC10 panel and EX16 floor extension boards offer customers a secure, scalable, versatile, and cost-effective access control solution. Floor access can be restricted based on various user credentials, including fingerprints, proximity cards, and passwords. Additionally, predefined time schedules can be set to regulate access. During normal business hours or scheduled visits, unrestricted floor access (also known as Passage Mode) can be enabled.

The EC10 Elevator Control Panel manages access to up to ten floors, while the EX16 Elevator Floor Extension Board adds control for up to sixteen additional floors. Each EC10 panel supports up to three EX16 boards, allowing a single EC10 bundle to control a total of 58 floors. Furthermore, multiple EC10 panels can be daisy-chained together to accommodate buildings of any size.

Our powerful yet user-friendly software simplifies system management, and an SDK is available for software companies looking to integrate the system into their own platforms.

Key Features:

EC10 Elevator Control Panel:

• Controls access to up to 10 floors.
• Supports various user credentials: fingerprint, proximity card, and/or password.
• Allows pre-defined time schedules for floor access control; Passage mode permits unrestricted access during normal business hours.
• Supports up to 3 EX16 boards, enabling control of up to 58 floors when combined.
• Multiple EC10 panels can be daisy-chained to manage additional floors as needed.
• Fingerprint capacity: 3,000.
• RFID card capacity: 30,000.
• Event capacity: 100,000.
• Communication interfaces: TCP/IP and RS485.
• Dimensions: 242mm × 95mm × 60mm; weight: 0.8kg.

EX16 Elevator Floor Extension Board:

• Extends control to an additional 16 floors per board.
• Up to 3 EX16 boards can be connected to a single EC10 panel, allowing control of up to 58 floors.
• Communicates with EC10 via RS485 interface.
• RS485 address set by DIP switch.
• Power supply: 12V DC 1A.
• Dimensions: 160mm × 106mm; weight: 0.2kg.

ZKTeco EC10 & EX16 Datasheet
