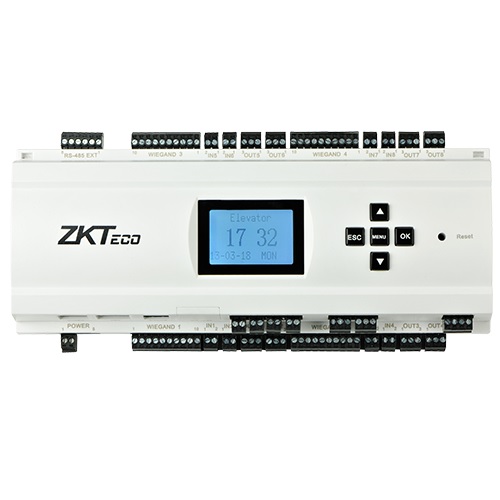

The ZKTeco EX16 Elevator Floor Extension Board is designed to enhance elevator access control systems by providing the capability to manage access to an additional sixteen floors. When integrated with the EC10 Elevator Control Panel, which independently controls up to ten floors, a single EC10 can support up to three EX16 boards, collectively managing access to a total of fifty-eight floors. This modular approach offers a scalable solution for buildings with extensive vertical infrastructures. It allows for precise access control, ensuring that only authorized personnel can reach specific floors. The system is ideal for commercial buildings, residential complexes, and other facilities requiring secure and efficient elevator access management.
Communication between the EX16 board and the EC10 panel is facilitated via RS485, ensuring reliable data transmission. The EX16 is equipped with sixteen floor button control relays and operates on a 12V DC 1A power supply. Its compact dimensions of 160mm by 106mm and a net weight of 0.2kg allow for flexible installation within various control system configurations. This makes it a practical addition to any existing elevator control infrastructure, as it seamlessly integrates without occupying significant space. The board’s high compatibility and ease of installation make it a preferred choice for upgrading security in multi-floor buildings.
The EX16 supports multiple user credential options, including fingerprints, proximity cards, and passwords, allowing for versatile access management tailored to specific security requirements. Pre-defined time schedules can be implemented to control floor access, and during standard business hours, unrestricted access (passage mode) can be enabled to facilitate smooth operations. For software developers aiming to integrate this system into broader security frameworks, a Software Development Kit (SDK) is available, enhancing the adaptability and integration potential of the EX16 within diverse building management systems. Its advanced access control features help improve both security and efficiency, making it an essential component of modern elevator management solutions.
ZKTeco ZK-EX16 Elevator Controller Extend Board Features:
- Controls up to 16 additional floors: Each EX16 board can manage access to 16 floors, allowing for scalable elevator control.
- Expandable system: An EC10 Elevator Control Panel can support up to three EX16 boards, enabling control of up to 58 floors with a single EC10 bundle.
- RS485 communication: The EX16 communicates with the EC10 panel via RS485, ensuring reliable data transmission.
- Customizable RS485 address: Addresses can be set using DIP switches, facilitating easy configuration within the system.
- Compact dimensions: Measuring 160mm x 106mm, the EX16 board is designed for efficient integration into various control setups.
- Standard power requirements: Operates on a 12V DC 1A power supply, aligning with common elevator control system specifications.
ZKTeco ZK-EX16 Technical Specifications:
| Floor Button Control Relay |
10 |
| Fingerprint Capacity (optional) |
3000 |
| RFID Card Capacity |
30,000 |
| Event Capacity |
100,000 |
| Power Supply |
12V DC 1A |
| Communication to PC |
TCP/IP, RS485* |
| Communication to EX16 |
RS485 |
| Number of supported EX16 |
3 |
| Dimension |
242mm × 95mm × 60mm (L*D*H) |
| Net Weight |
0.8Kg |
| Floor Button Control Relay |
16 |
| Communication to EC10 |
RS485 |
| RS485 Address |
Set by DIP switch |
| Power Supply |
12V DC 1A |
| Dimension |
160mm × 106mm × 60mm (L*D*H) |
| Net Weight |
0.2Kg |
